REPLACING THE HYDROSTATIC PUMP OIL 5.19
CARTRIDGE/FILTER
This operation must be carried out by qualified personnel.
Proceed as follows to replace the hydrostatic pump oil cartridge/filter:

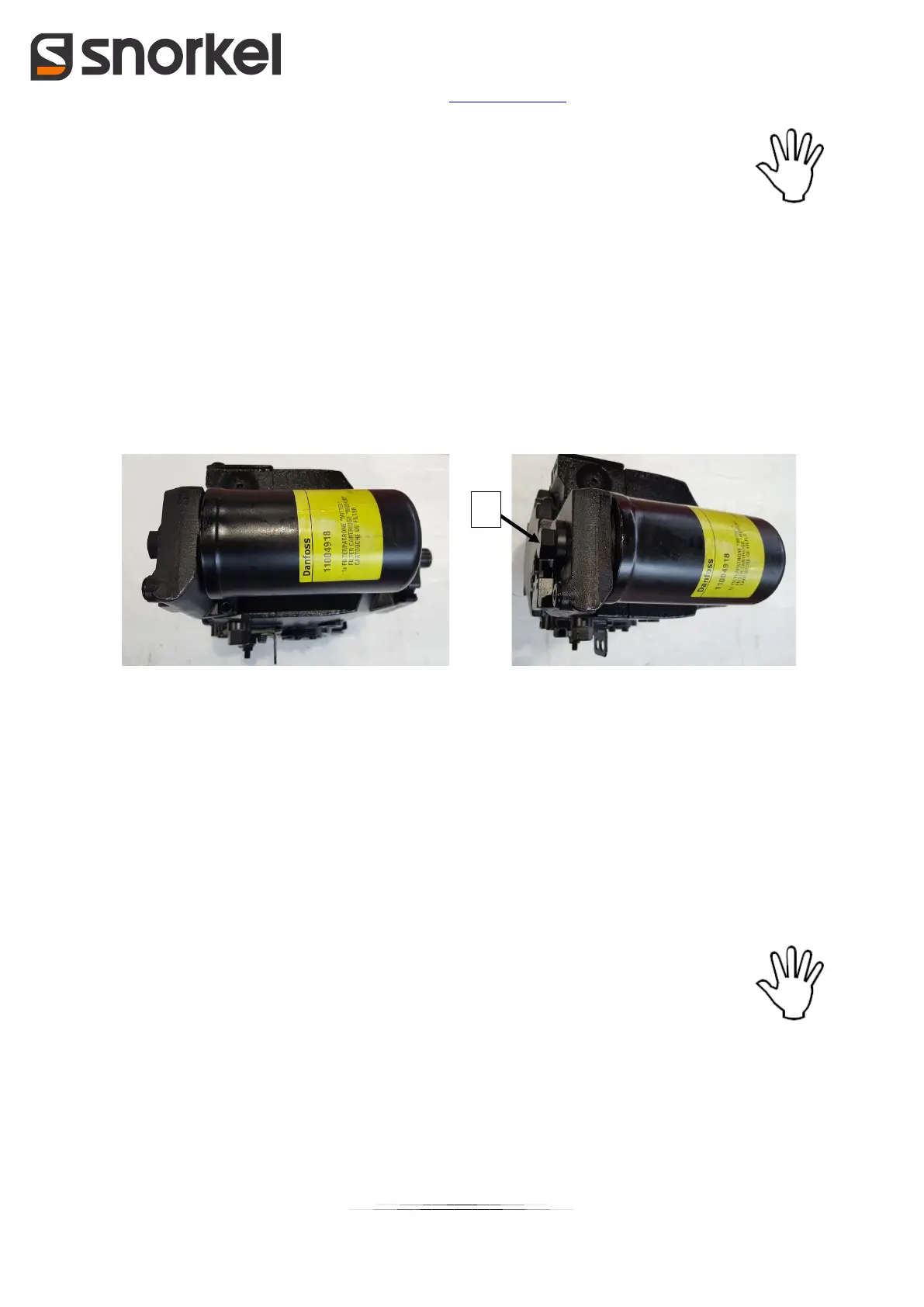

• Remove the filter from the hydrostatic pump by removing the lower closing sheet of the engine
compartment.
• Unscrew the filter screw on the back of the pump (1).
• Remove the filter cartridge and insert the new one.
• Moisten the sealing gasket of the filter case with oil.
• Reassemble the filter.
CLEANING AND REPLACING THE ENGINE AIR FILTER 5.20
CARTRIDGE
Proceed as follows to clean the air filter:
• Release the filter from its seat.
• Remove the cover.
• Remove the primary cartridge and clean it with a jet of compressed air. Replace it, if necessary.
