3.2.1.16 INPUTS PAGE
All analogue and digital input values detected by the machine’s electronic control system are displayed on
the “inputs” pages.

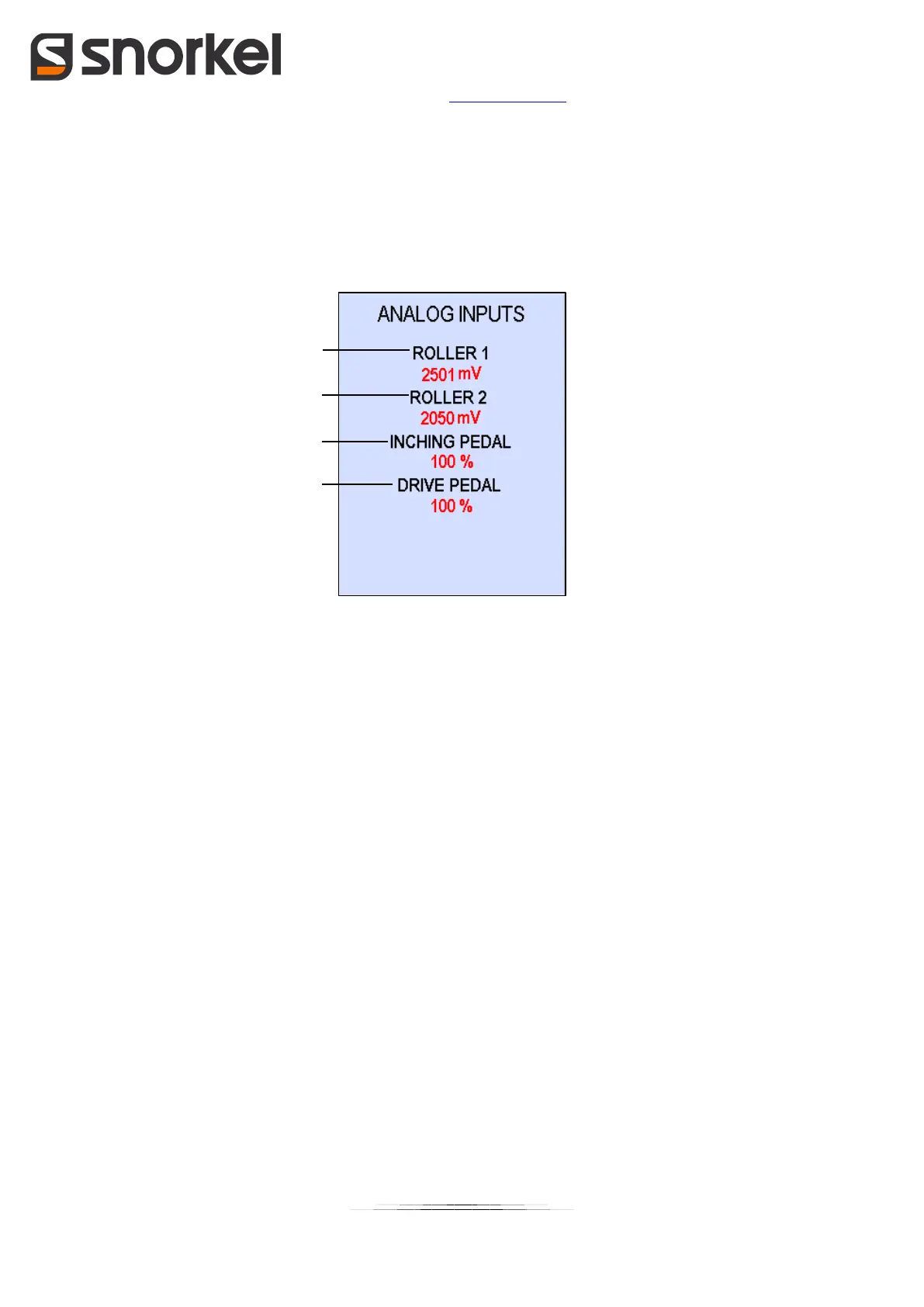

“Analogue inputs” page:
List of icons/data:
1. Joystick roller 1 analogue input
2. Joystick roller 2 analogue input
3. Inching pedal analogue input
4. Accelerator pedal analogue input
For all analogue inputs, the instant values measured are displayed immediately after.
Press the DOWN or UP button to go to the "Digital inputs" page.
Press the OK button to go back to the “main” page.
Press the MENU button to go back to the "menu" page.
1
2
3
4
