AGRI MODE (OPTIONAL)
With the AGRI mode (optional), one hydraulic line on the rear of the machine can be used. Press the

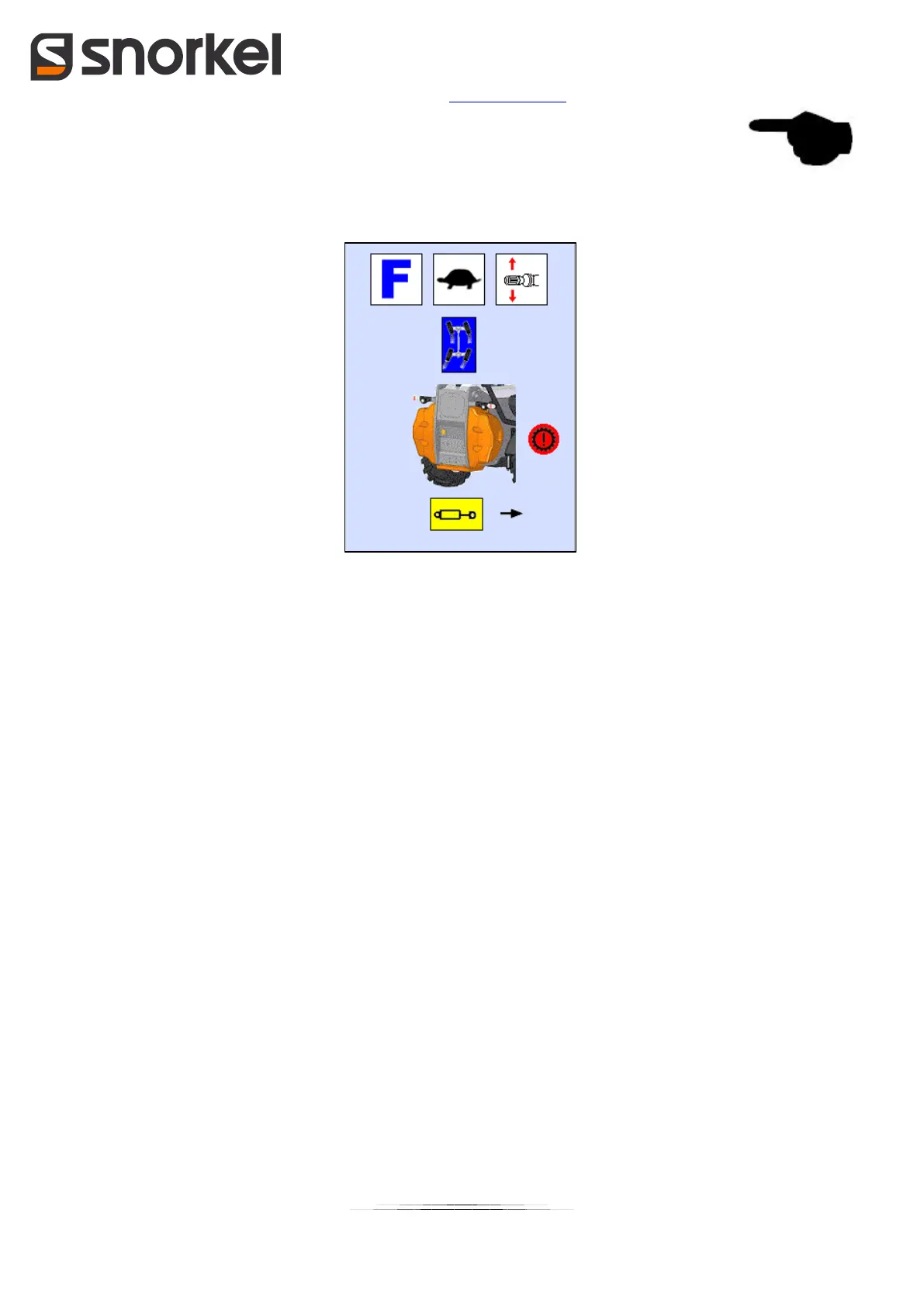

selector (14) on the right-side dashboard to activate AGRI mode and display the following screen:
Move the right roller of the joystick forwards and backwards to control the extraction and retraction of the
tool piston connected to the rear hydraulic line. An arrow facing right or left, depending on whether the
piston is being extracted or retracted is displayed and the socket being controlled turns yellow.
This way, both connections of the hydraulic line are connected to the tank and there is no pressure in the
line.
Release the selector (14) to return to normal TELE mode.
The telescopic boom is disabled in AGRI mode.
