DRIVER CABIN 1.9.11
Fixed to the frame by means of vibration-damping mounts, distinguished by:
• Access door
• Large anti-glare glass surfaces
• Anatomic seat adjustable to the weight and height of the driver fitted with a height-adjustable
headrest, tilting armrests and a safety belt
• Heating and defrost system
• Windscreen wiper with washer system
The driver cabin is approved in accordance with the following standards:
ISO 3449-2005 (FOPS) - ISO 3471-2008 (ROPS) - ISO-6055:2004 – 3.4.2 - ISO-6055:2004 – 3.4.3
ANSI/ITSDF B56.6 – 2016 8.16.3.(b) - ANSI/ITSDF B56.6 – 2016 8.16.3.(c)

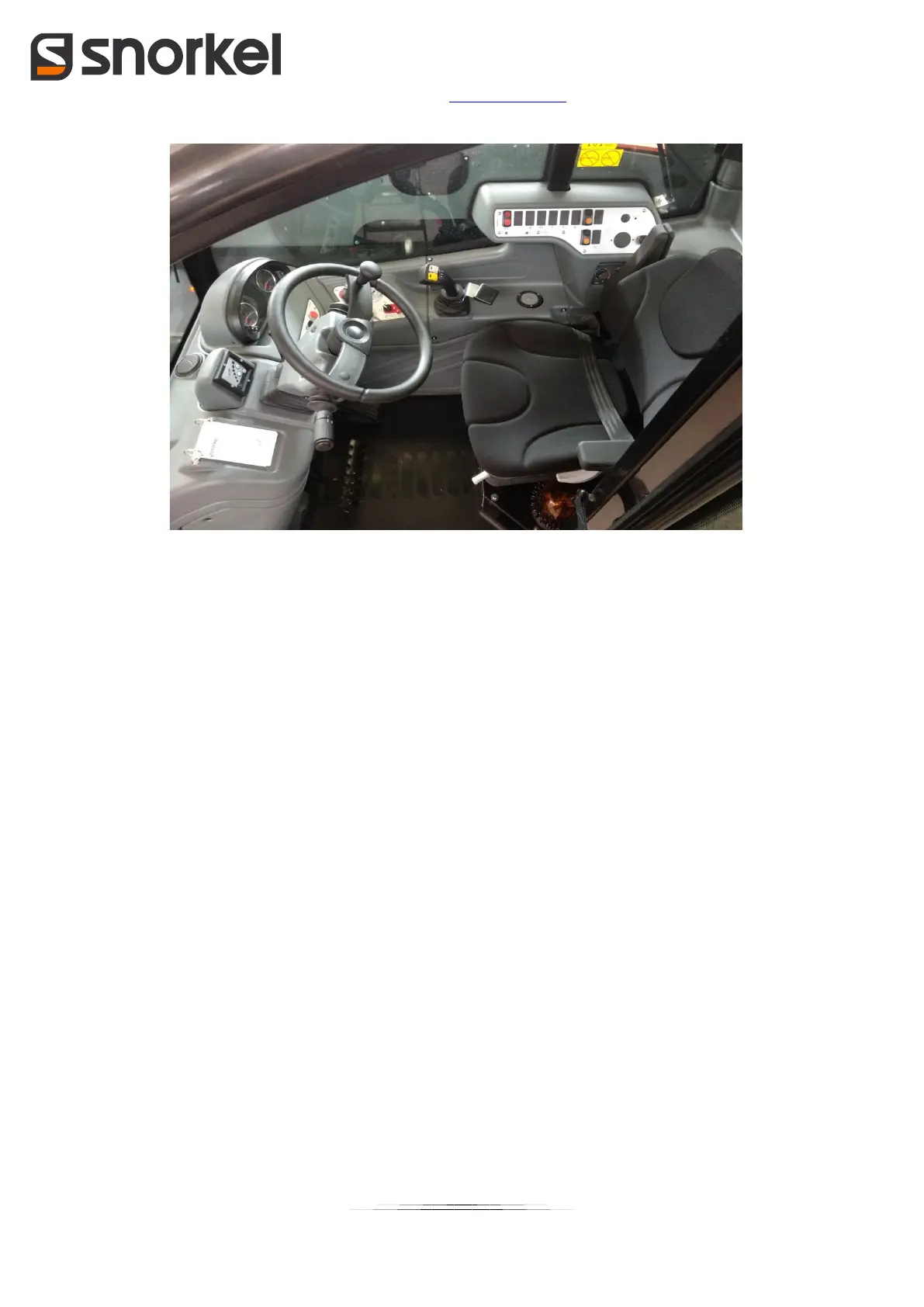

According to the above picture (purely indicative), the following areas/parts of the cabin can be identified:
1
Quick guide and load charts
2
Anti-tip system display
3
Right dashboard at the front
4
Right front dashboard
5
Steering wheel with control levers
6
First right side dashboard
7
Control joystick
8
Spirit level
9
Second right side dashboard
10
Climate controls
11
Cup carrier
12
Air circulation vents
13
Windscreen wiper system water tank
14
Driver's seat
15
Pedals
