second right side dashboard lights up. At this point, if the Diesel engine is not reactivated or if there is a
fault/failure in the hydraulic system, the brakes can no longer guarantee that the machine will be stopped
correctly. The same applies to the circuit of the parking brake, where a pressure accumulator guarantees a
minimum number of brake releases until the relevant low pressure on the second right side dashboard
lights up. The system guarantees that in case of a breakdown or fault, the vehicle moves with a Diesel
engine switched off and ignition key in position 1.

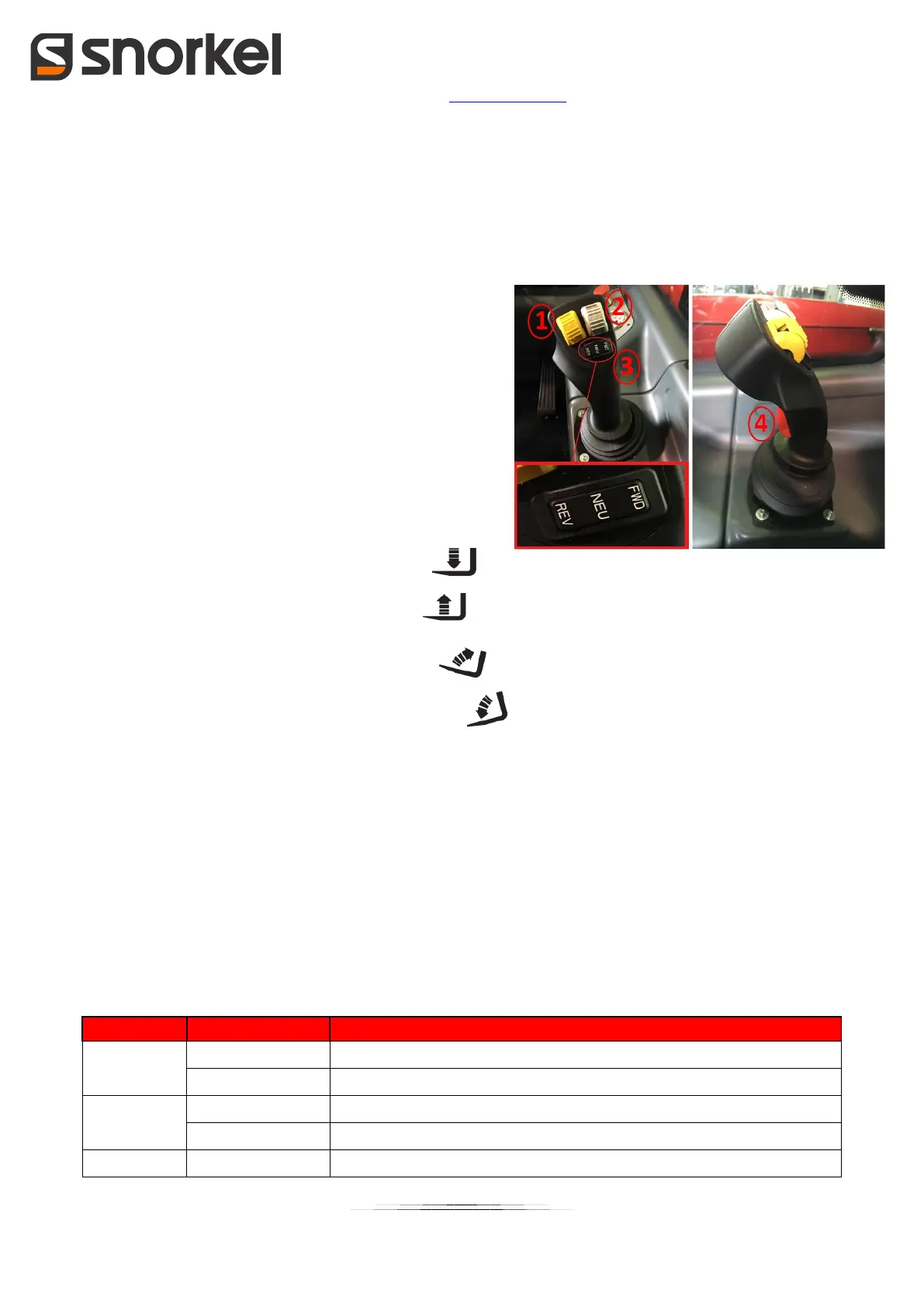

JOYSTICK 3.6
The joystick, to the right of the driver's seat, allows you to
perform all hydraulic movements of the telescopic boom
and the accessory carrier at its end.
A series of buttons are located on the joystick. Each button
enables/controls a particular function/operation. The
joystick can move in four directions: forward, backward,
left and right.
Move the joystick forward to lower the boom.
Move the joystick backward to lift the boom.
Move the joystick to the left to swing upwards.
Move the joystick to the right to swing downwards.
The other buttons have the following functions:
Button 4 launches the pressurisation of the services; it must be pressed together with all the other joystick
functions (except for button 3, which is autonomous) to enable the movements.
Button 3 launches the Forward-Neutral-Reverse movement; the figure shows the corresponding positions
of the button (zoom): FWD (forward), NEU (neutral), REV (reverse).
The forward movement via the joystick is selected from the page on the menu (see the “FNR mode”
paragraph).
Rollers 1 and 2 have different functions depending on the operating mode set. The possible modes are:
TELE mode (default setting)
Roller 1
Forward Boom extension
Reverse Boom retraction
Roller 2
Forward Aux hydraulic line / Equipment block with quick release (opt)
Reverse Aux hydraulic line / Equipment release with quick release (opt)
3 Brief F-N-R
