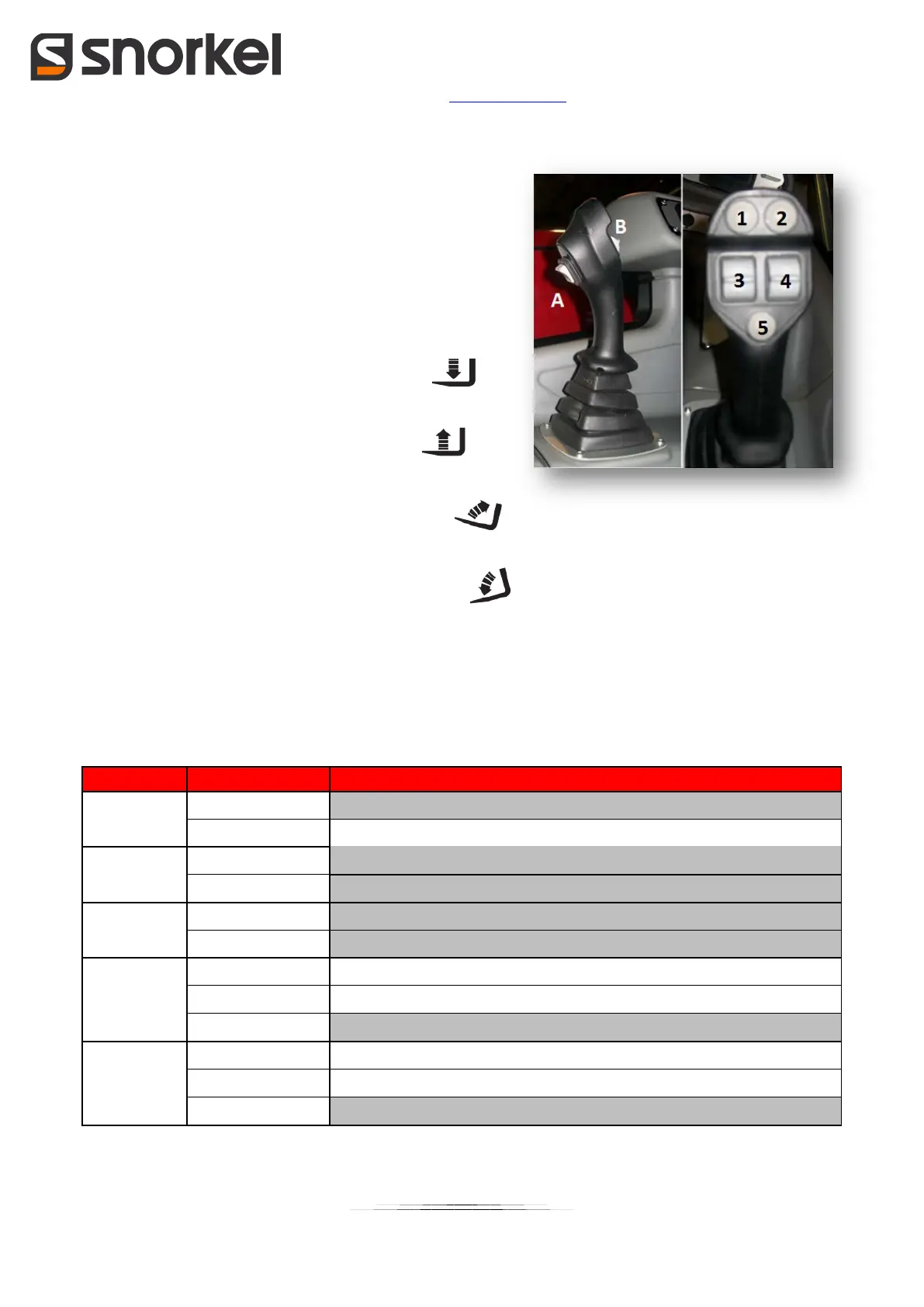

JOYSTICK (OPTIONAL) 3.7
The joystick, to the right of the driver's seat, allows you to
perform all hydraulic movements of the telescopic boom
and the accessory carrier at its end.
The joystick has two operating sides (A and B) on which a
number of buttons found. Each button enables/controls a
particular function/operation. The joystick can move in
four directions: forward, backward, left and right.
Move the joystick forward to lower the boom.
Move the joystick backward to lift the boom.
Move the joystick to the left to swing upwards.
Move the joystick to the right to swing downwards.
The operational side A is characterised by the presence of the forward-neutral-reverse (FNR) drive direction
control button. This operational side is enabled by selecting the appropriate mode through the specific
menu screen (see “FNR mode” paragraph).
Operating side B has different functions depending on the operating mode. The possible modes are:
TELE mode (default setting)
Button
Pressure
TELE mode function
5
Brief No function
Long Floating on boom AUX activation/deactivation
1
Brief
No function
Long No function
2
Brief
No function
Long No function
Roller 3
Forward Boom extension
Reverse Boom retraction
Backward t>5sec No function
Roller 4
Forward Aux hydraulic line / Equipment block with quick release (opt)
Reverse Aux hydraulic line / Equipment release with quick release (opt)
Backward t>5sec No function
