Snorkel SR9244 - Second Right Side Dashboard

84
Model: Snorkel SR9244 SR1054
Part Number: 159-0037-000
Snorkel International, LLC
2009 Roseport Road
Elwood, KS 66024
www.snorkellifts.com

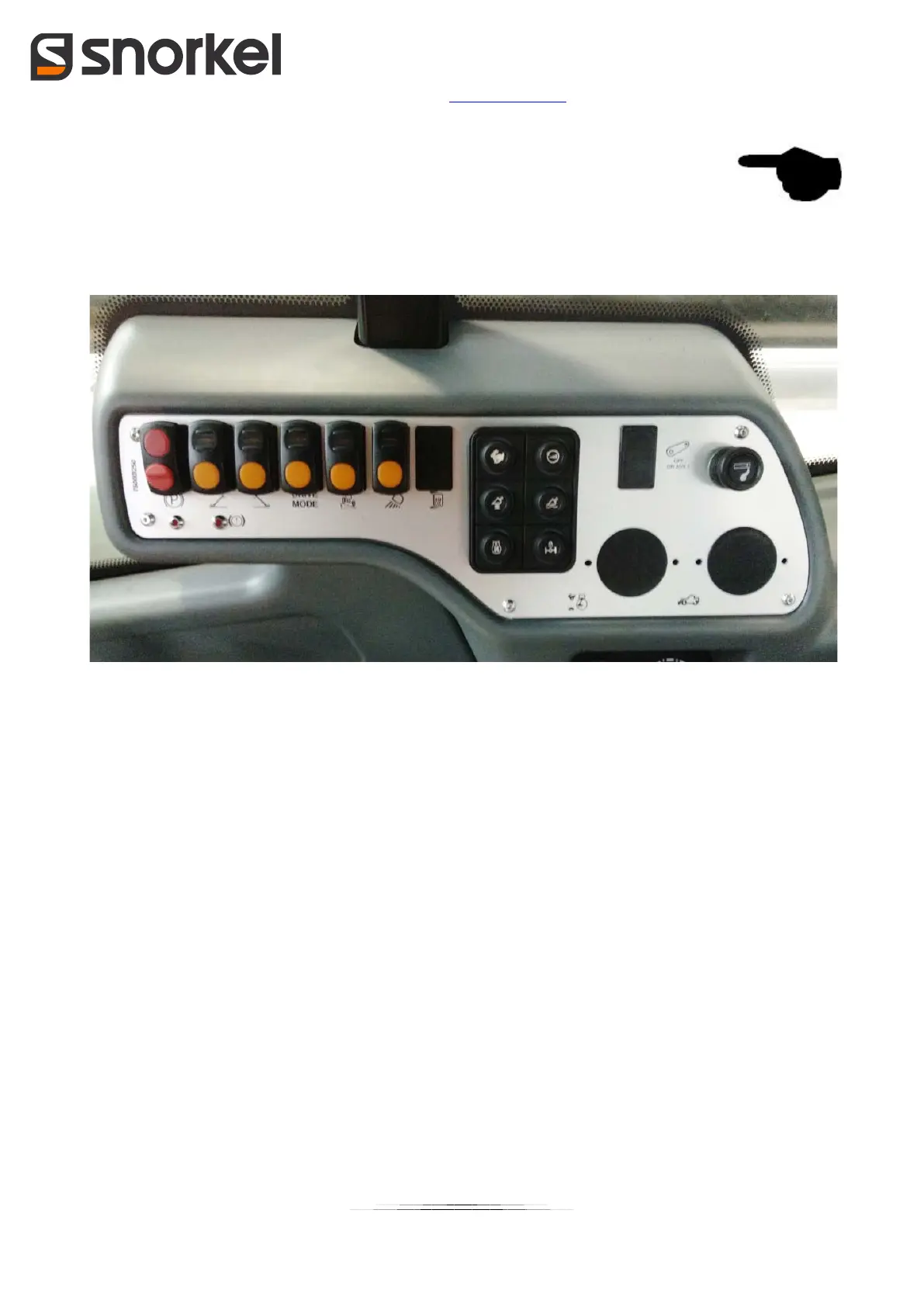

SECOND RIGHT SIDE DASHBOARD 3.3
The following are found inside this dashboard:
1. Selector with activating/deactivating parking brake safety lock
2. Left outrigger lowering/lifting oscillating button
3. Right outrigger lowering/lifting oscillating button
4. DRIVE – ECO - HANDLING - CREEP driving mode selection button
5. Side levelling oscillating button
6. Boom work lights activation selector (Optional)
7. Heated mirror activation selector (Optional)
8. Mechanical gear change button (Optional)
9. Front constant flow activation button (Optional)
10. Boom suspension activation button (Optional)
11. Boom floating activation button (Optional)
12. Reversing fan activation button (Optional)
13. Rear axle lock button (Optional)
14. AGRI mode selector (Optional)
15. Cigarette lighter
16. Engine rpm potentiometer (Optional, only if Creeper mode present)
17. Speed potentiometer (Optional, only if Creeper mode present)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
