BRAKING SYSTEMS 1.9.3
• Multi-disk service brakes in oil bath.
• Negative multi-disk parking brake in oil bath with pressure accumulator.
TRANSMISSION 1.9.4
A completely hydrostatic set of elements that allow the machine to move. It consists of the following parts:
• A 78 cm
3
variable displacement hydrostatic pump (connected to the combustion engine with an
elastic coupling)
• A 160 cm
3
variable displacement hydrostatic engine, connected directly to the speed reducer.
• Steering differential axles that allow the transmission of wheel motion. The axles are both
oscillating, only the front one has a transversal levelling system.
• Electrically controlled reverse gear
• The machine is fitted with adequately sized tires for the maximum load allowed on the machine. If
they should be replaced, always use tires of the same dimensions and capacity characteristics.
STEERING 1.9.5
The steering system is hydraulically load sensing assisted.

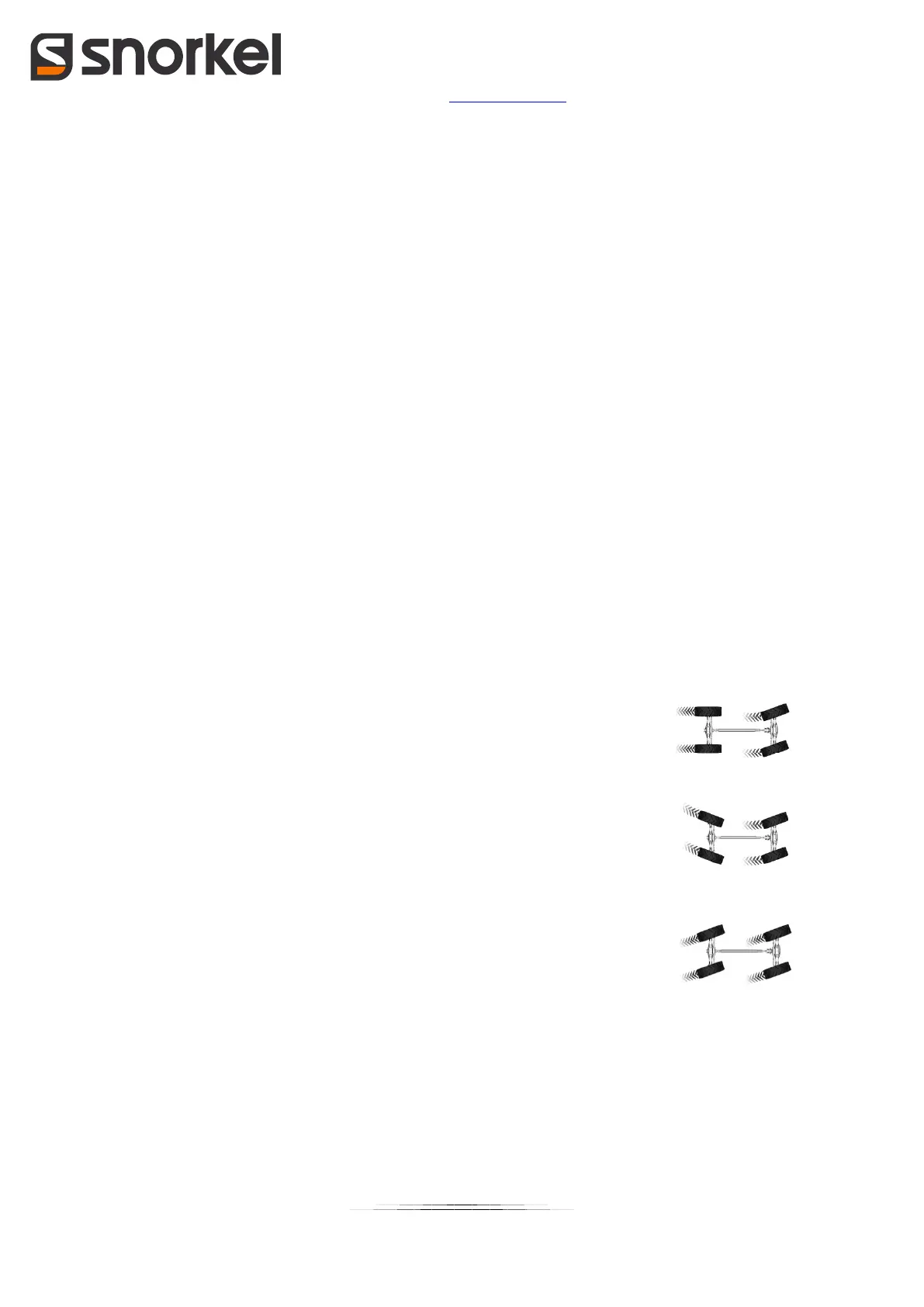

Three steering modes are possible:
• With the front wheels only.
• With the front and rear wheels for "concentric" advancement.
• With the front and rear wheels for "crab" advancement.
