TORQUE OF THE SCREWS AND GREASING THE CARDAN 5.28
SHAFT CROSS

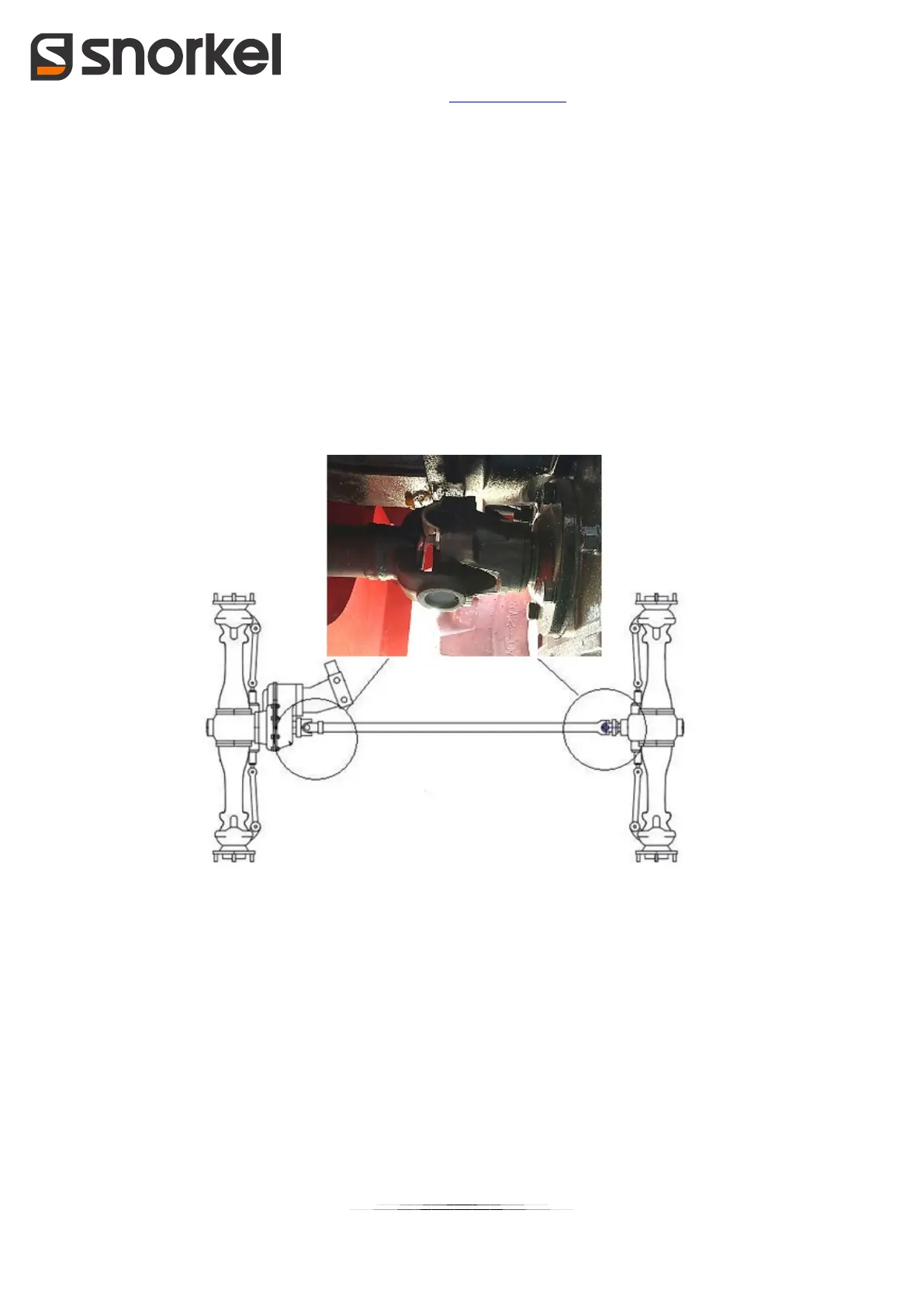

Lubricate the cross at the two ends of the central transmission shaft. Verify the torque of the connection
bolts between the cardan shaft and the axles. Access the cardan and cross by removing the closing sheet
of the frame in the lower part of the machine. After having implemented the required operations it is
mandatory to reassemble the sheet. Attention: the sheet protects the cardan shaft from knocks that could
compromise the functionality.
