• Place the new battery (with the same characteristics as the previous one and adequately charged)
in its housing
• Secure it with the previously disassembled anchor systems
• Thoroughly clean the terminals of the machine from any residual oxide with a cloth dampened with
water and dry well
• Grease the terminals with Vaseline grease
• In inverse order of disassembly, first connect the positive pole and then the negative pole,
tightening the terminals until they are blocked (do not over tighten)
• Reposition the plastic protective parts on the poles
• Dispose of the old battery in accordance with regulations in force
The recommended battery must have the following characteristics:
• Nominal voltage: 12V
• Capacity: 160 Ah

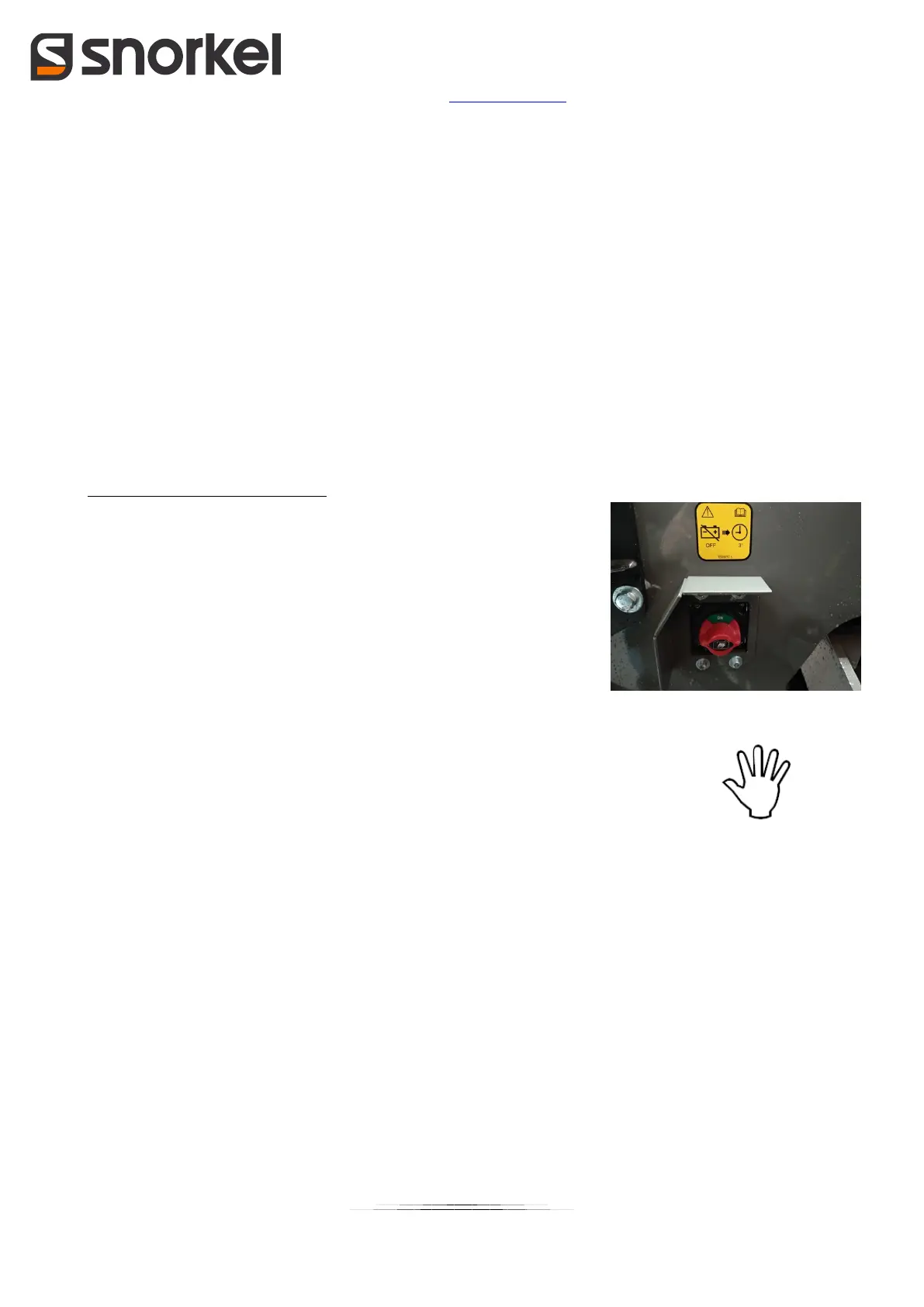

Disconnection (BATTERY SWITCH)
Before working on any part of the electrical system, the power supply
has to be shut off with the knob (see figure) on the side of the battery
compartment. The battery is disconnected by turning the knob
anticlockwise (and reset by turning it clockwise).
Important: perform this operation only with the engine OFF.
After turning off the machine, wait 3 minutes before disconnecting the battery!
