5. MOUNTING
The following paragraphs describe the installation of DIRISDigiware DC.
5.1. Recommendations and safety
Refer to the safety instructions (section “2. Hazards and warnings”, page 5)
5.2. DIRIS Digiware mounting

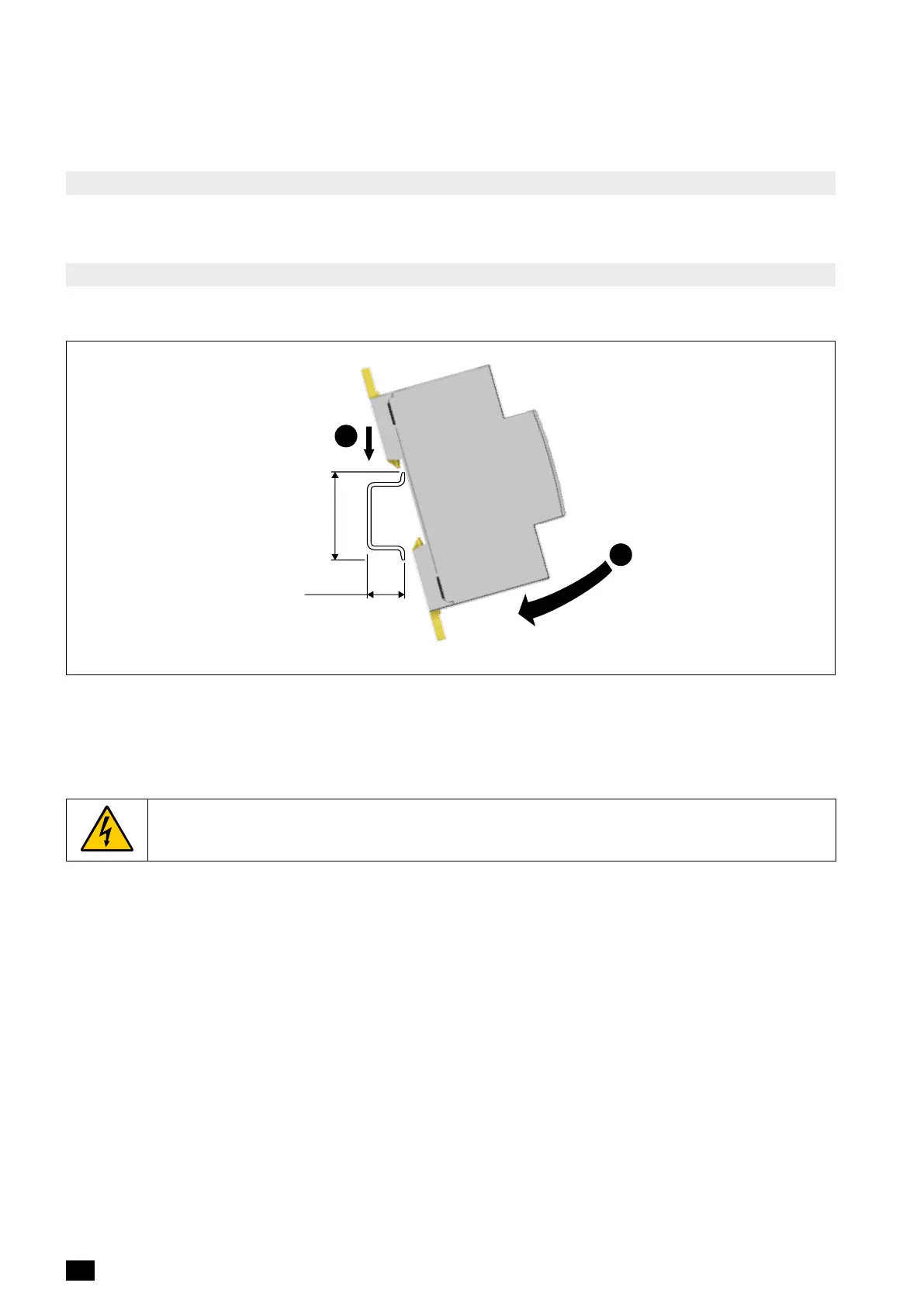

5.2.1. DIRIS Digiware C, U-3xdc, I-3xdc, IO-x - DIN rail-mounted
L
1
2
1.38 in
35 mm
0.29 or 0.59 in
7.5 or 15mm
The devices are intended to be built into a box under a faceplate or into a closed box in order to ensure protection
against electric shock and insulation against re.
The DIN rail must have an earth connection. If an earth connection is not available, an insulated DIN rail must be
used.
For U500dc, U1000dc and U1500dc adapters the instructions concerning the safety distances of the
assembly given on page 15 must be respected.
