socomec DIRIS Digiware C-31 Installation

17EN
DIRIS DIGIWARE DC - 545830B - SOCOMEC

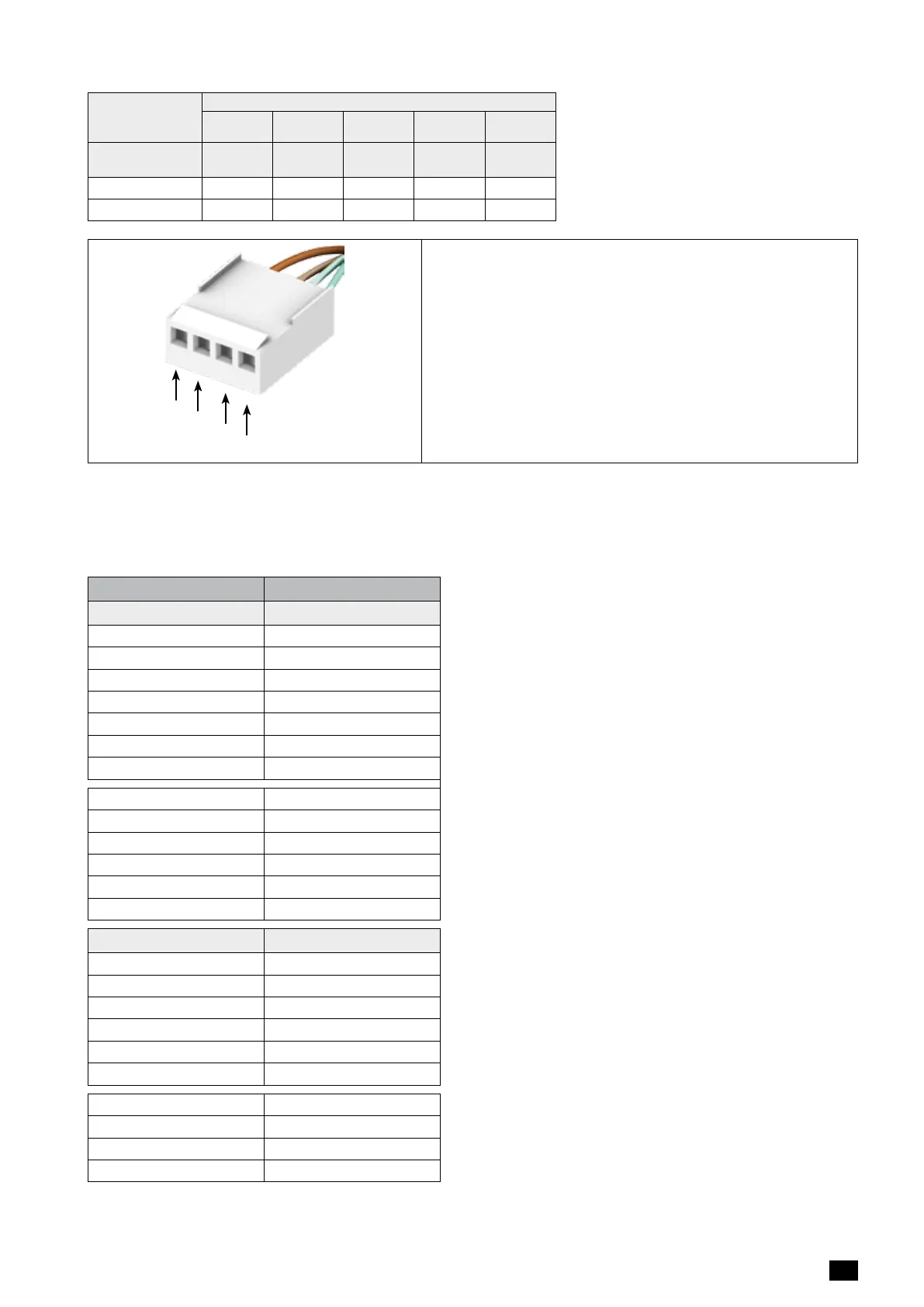

4.2.2. Connection cables for current sensors
RJ12-Terminal
connection
cables
Cable length (m)
0.3 0.5 1 2 5
Number of
cables
Part
number
Part
number
Part
number
Part
number
Part
number
1 4829 0786
3 4829 0782 4829 0783 4829 0784 4829 0785
1
2
3
4
PIN 1 : + 15 V (+ Vc)
PIN 2 : - 15 V (- Vc)
PIN 3 : sensor input (M)
PIN 4 : 0V sensor (0)
4.2.3. Current sensors
The DC range of sensors compatible with the electrical and mechanical interface of the I-3xdc modules is the
following :
Nominal current (A) SOCOMEC reference
DC Solid-core sensors
50 48290700
100 48290701
200 48290702
300 48290703
400 48290704
500 48290705
600 48290706
850 48290707
1000 48290708
1500 48290709
2000 48290710
2500 48290711
5000 48290712
DC Split-core sensors
50 48290750
100 48290751
200 48290752
300 48290753
400 48290754
500 48290755
800 48290756
1000 48290757
1500 48290758
2000 48290759
Other DC sensors can also be chosen providing their electrical and mechanical interface is compatible with I-3xdc
modules.
