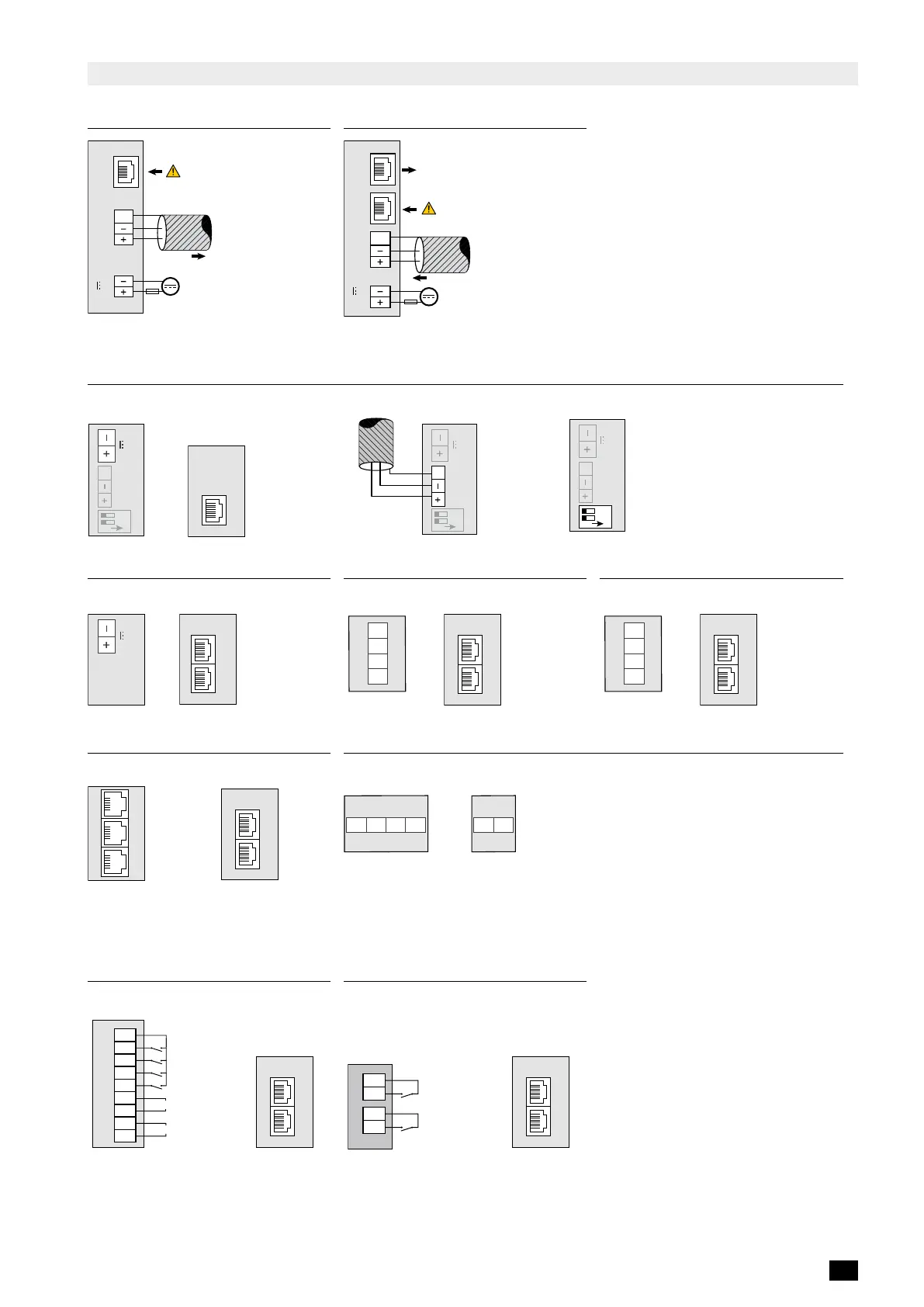

6.3. Description of the terminals
DIRIS Digiware D-40 DIRIS Digiware D-50 / D-70
NC
RS485
Digiware
LIYCY-CY
SLAVE
24 V
SUPPLY
24 VDC
(20 W max)
Digiware
Bus
(*)
NC
RS485 Digiware
LIYCY-CY
MASTER
24 VDC
(20 W max)
Ethernet
24 V
SUPPLY
Digiware
Bus
Ethernet
(*)
(*) 1A gG/Am fuse if using a non-SOCOMEC supply
DIRIS Digiware C-31
24 V
SUPPLY
RS485
NC
1 2
ON
DIGIWARE BUS
RJ45
24 V
SUPPLY
RS485
NC
LIYCY-CY
1 2
ON
24 V
SUPPLY
RS485
NC
1 2
ON
Digiware BUSPower supply Communication Line polarisation
DIRIS Digiware C-32 DIRIS Digiware U-31dc DIRIS Digiware U-32dc
DIGIWARE BUS
RJ45
INOUT
24 V
SUPPLY
Digiware BUSPower supply
-
NC
NC
+
DIGIWARE BUS
RJ45
Digiware BUSVoltage
measurement
NC
+
-
NC
DIGIWARE BUS
RJ45
Digiware BUSVoltage
measurement
DIRIS Digiware I-3xdc Voltage adapters U500dc, U1000dc and U1500dc
I 01
I 02
I 03
RJ12
DIGIWARE BUS
RJ45
Digiware BUSCurrent measurement
(**)
Output to U-32dcInput
- +NCNC
- +
- +NCNC
- +
(**) Always connect input I01 first.
DIRIS Digiware IO-10 DIRIS Digiware IO-20
13
14
23
24
12-48VDC
12-24VAC
50mA
12VDC
IN1
COM-
IN2
IN3
IN4
OUT1
OUT2
OUTPUT
INPUT
Inputs/outputs
DIGIWARE BUS
RJ45
Digiware BUS Inputs
DIGIWARE BUS
RJ45
Digiware BUS
0/4-20mA
200 Ω max
1+
1-
2+
2-
INPUT
