socomec DIRIS Digiware C-31 Installation

31EN
DIRIS DIGIWARE DC - 545830B - SOCOMEC
7. DIGIWARE BUS

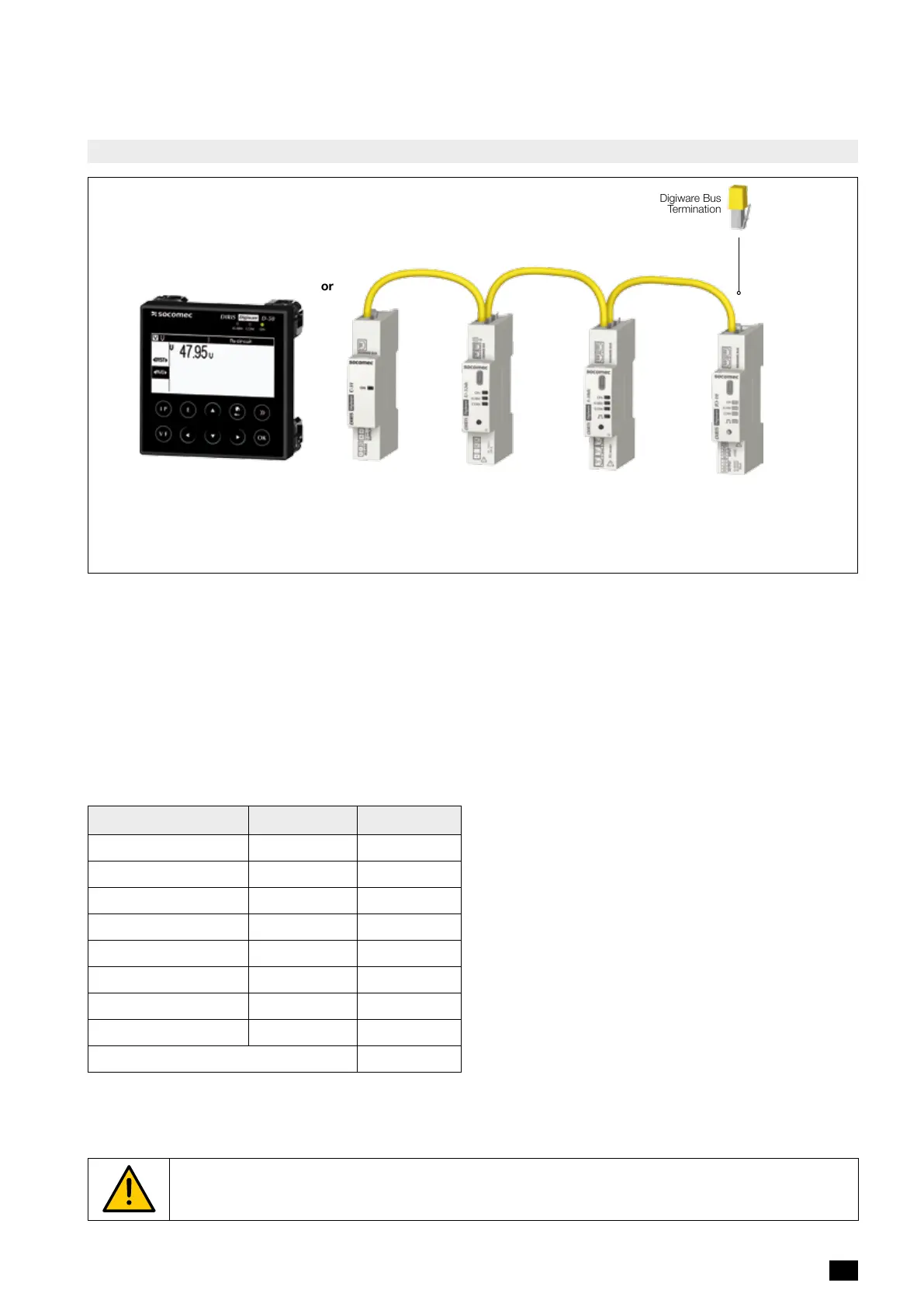

7.1. Principle
or
U measurement
module
DIRIS Digiware U-3xdc
System interface
module
DIRIS Digiware C-31
DIRIS Digiware
D display
I measurement
modules
DIRIS Digiware I-3xdc
Measurement
module IO
DIRIS Digiware IO-10
DIRIS Digiware IO-20
Digiware Bus
Termination
Digiware Bus
DIRIS Digiware is a system which must comprise the following elements:
• One DIRIS Digiware D remote display or one DIRIS Digiware C-31 system interface module
• One DIRIS Digiware U-3xdc voltage measurement module
• One or more DIRIS Digiware I-3xdc current measurement modules
• One or more DIRIS Digiware IO-xx input/output modules
• A Digiware bus termination (ref. 48290180) positioned on the last module. It is provided with the
DIRISDigiwareD display and the DIRIS Digiware C-31 system interface module.
7.1.1. Digiware Bus connection cables
Length (m) Quantity Part number
0.06 1 4829 0189
0.1 1 4829 0181
0.2 1 4829 0188
0.5 1 4829 0182
1 1 4829 0183
2 1 4829 0184
5 1
4829 0186
10 1
4829 0187
50 m reel + 100 connectors
4829 0185
Use the shortest possible cables to optimise the electromagnetic emissions.
The total max. length must not exceed 100 metres.
Use only SOCOMEC cables for the Digiware bus.
