HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
5.10.10 DRMs/Logic interface
The DRMs/Logic interface is used to control the inverter by
external signals, usually provided from grid operators with ripple
control receivers or other means. The logic interface pins are
defined according to different standard requirements.
Please consider the following PIN assignment.

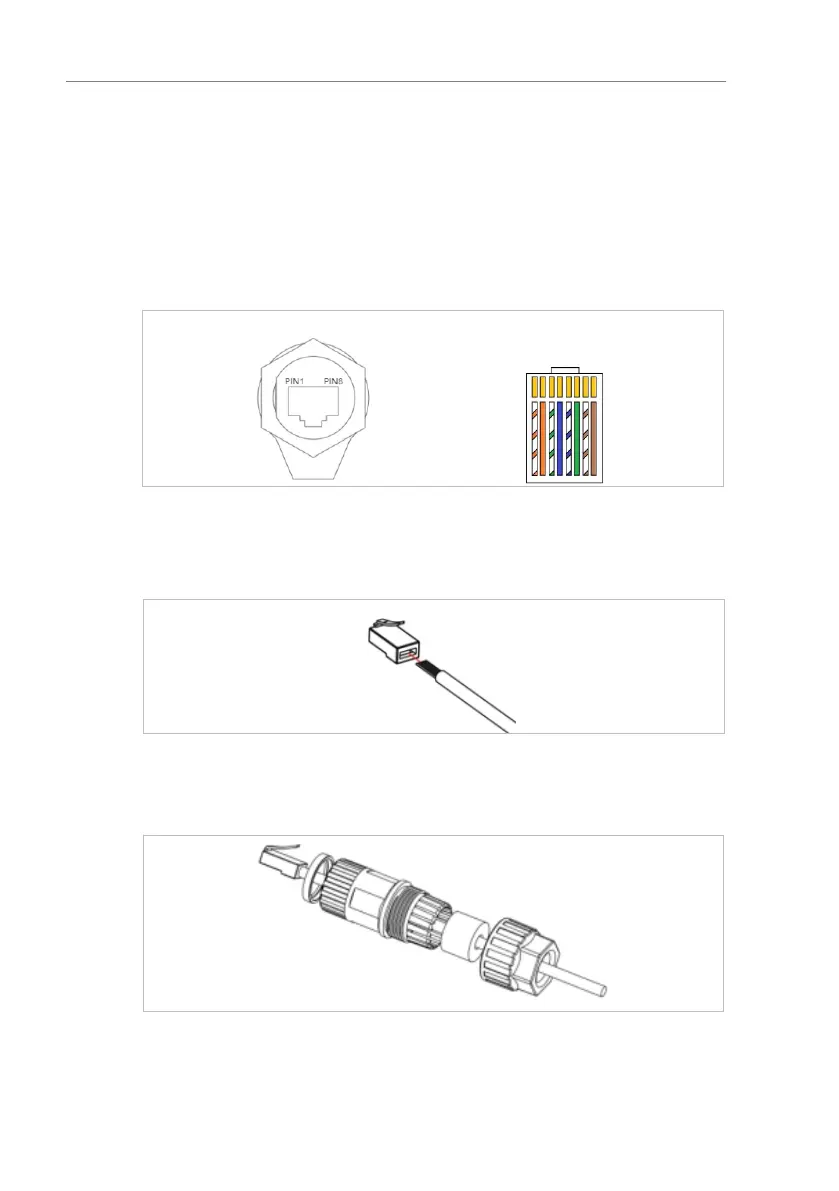

Connector inverter RJ45 Cable (clip is below)
Figure. 5-33 DRM connection(a)
Please follow below installation steps.
1. Press the wire terminals in colour sequence:
Figure. 5-34 DRM connection(b)
2. Route the cable terminal through the cable gland and
insert the communication cable into the RJ45 connector.
Figure. 5-35 DRM connection(c)
