HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
63
Pin
Definition
Function
1
IN_SYN0
Synchronising signal 0
2
CANL
CAN low data
3
SYN_GND0
Synchronising signal GND 0
4
CANH
CAN high data
5
IN_SYN1
Synchronising signal1
6
SYN_GND1
Synchronising signal GND 1
7
SYN_GND2
Synchronising signal GND 2
8
IN_SYN2
Synchronising signal 2
Installation

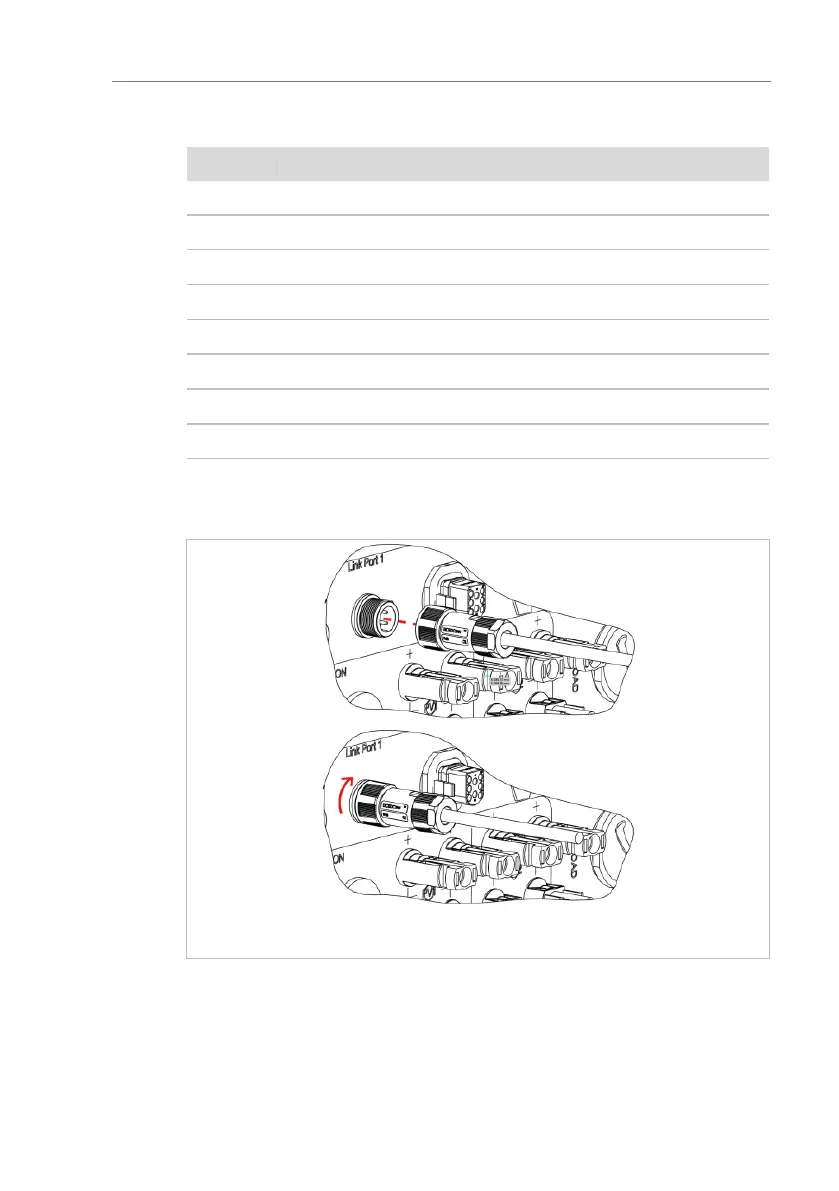

1. Connect and lock the connector by turning clockwise:
Figure. 5-32 Link Port connection(b)
