HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
62
smart meter is connected to the Master inverter for the system
control.

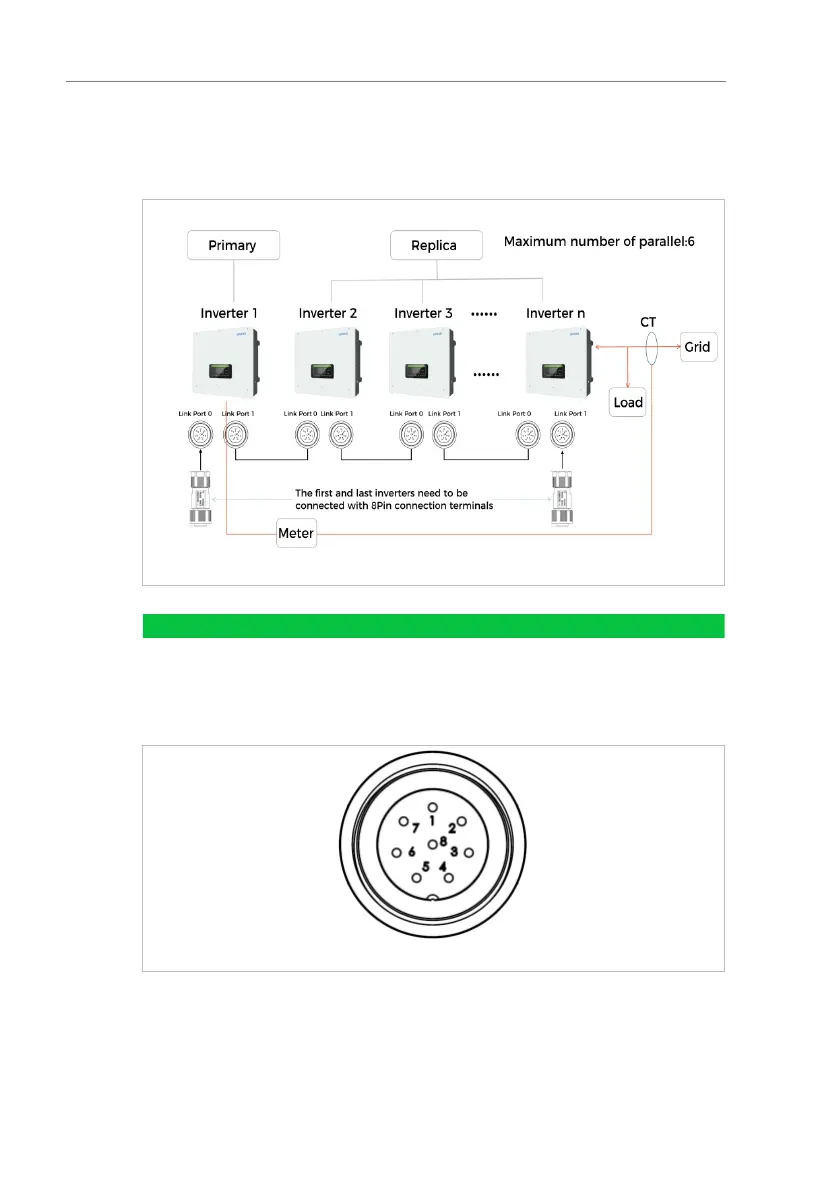

Figure. 5-30 parallel system
NOTE
 The first and last inverter need to be connected with
the 8 Pin connection terminals!
Pin Connections
Figure. 5-31 Link Port connection(a)
Table. 5-15 Link Port interface description
