HYD 5/6/8/10/15/20KTL-3PH USER MANUAL
61
Pin
Definition
Function
4
Ict_S+
Phase S + (Phase L2 +)
5
Ict_T-
Phase T – (Phase L3 -)
6
Ict_T+
Phase T + (Phase L3 +)

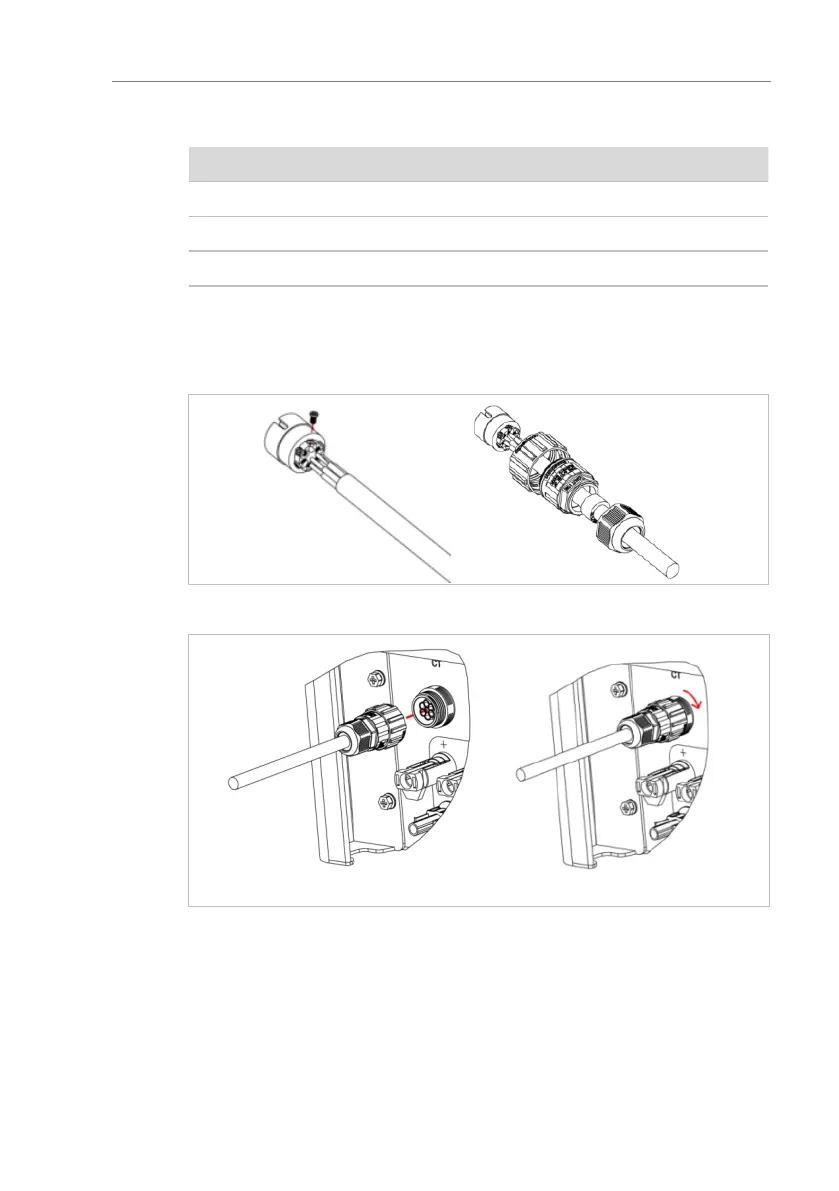

Follow below steps to install the CTs.
1. Fix the cables on the terminals according to above table,
and put the connector housing over the terminals.
Figure. 5-28 CT connection(b)
2. Connect and lock the connector by turning it clockwise.
Figure. 5-29 CT connection(c)
5.10.9 Link Port
In systems with multiple inverters, you can connect the devices
in a Master/Slave configuration. In this configuration, only one
