Installation and Wiring
Step 8: Thread the AC input cable in sequence as shown below.
1
2
3

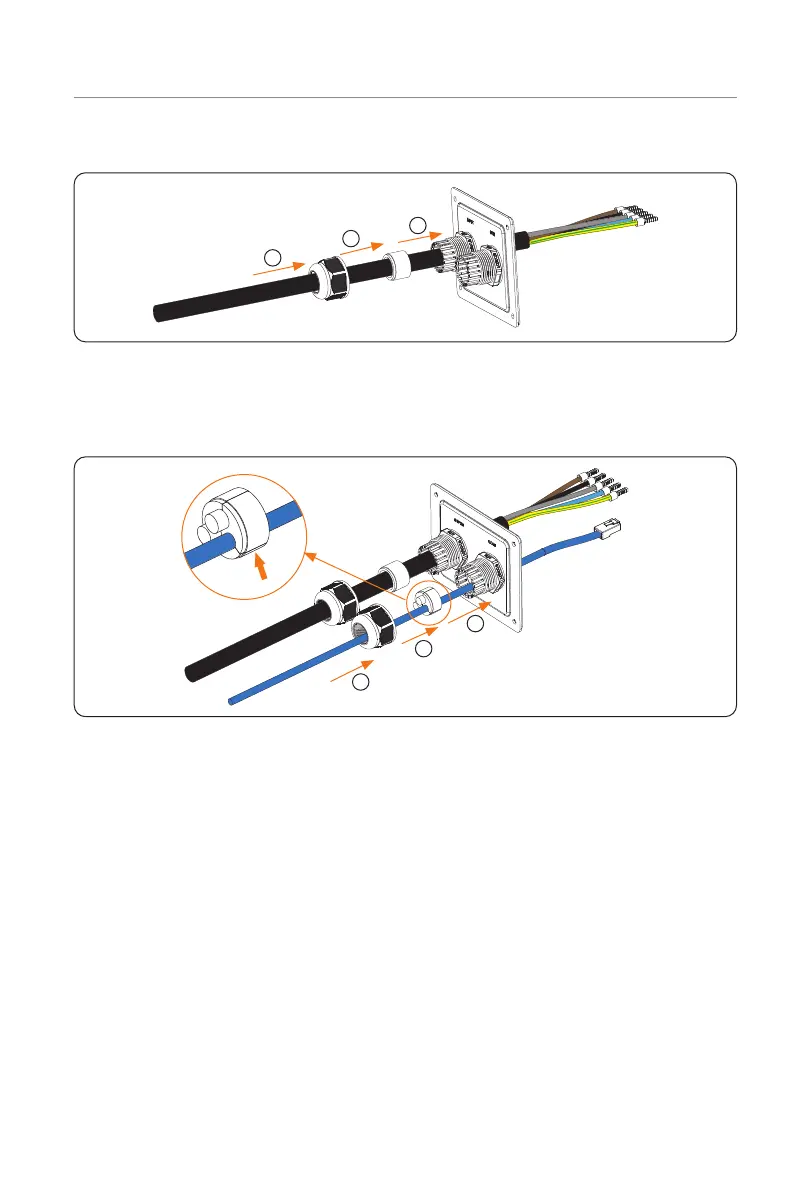

Figure 6-19 Thread the AC input cable
Step 9: Thread the communication cable(s) in sequence as shown below. Put the plug(s)
back to the unused hole(s) of the stopper. (Take communicatom cable for
connecting CT as an example from hereupon unless otherwise specified.)
1
2
3
Figure 6-20 Thread the communication cable
