SolaX Power X1-Hybrid G4 Series - Dimension; Terminals of Inverter

A
B
C
D
E F
G
I
K
J
A
K
L
H
Qualified electrician required for the installation.
Warning !
2.5 Terminals of Inverter
Object
A
B
C
D
E
F
G
H
I
J
K
L
M
DC switch
PV connection port
Battery connection port
Meter/CT Port
External monitoring connection port
CAN is a reserved port
Load/Off-grid Output
Communications/ LCD is a reserved port
DRM Port(only for Australia)
USB port for upgrading
Description
Battery communication
Ground connection port
Waterproof valve
16
17
BAT
ON
OFF
PV 1
PV 2
BMS
CAN
DRM
Upg rade
Don gle
Met er/CT
COM /LCD
ON
OFF
PV 1
PV 2
BMS
CAN
DRM
Upgra de
Dongl e
Meter /CT
COM/L CD
BAT
N
N
Fans(only for X1-Hybrid-7.5-D and X1-Hybrid-7.5-M )
M

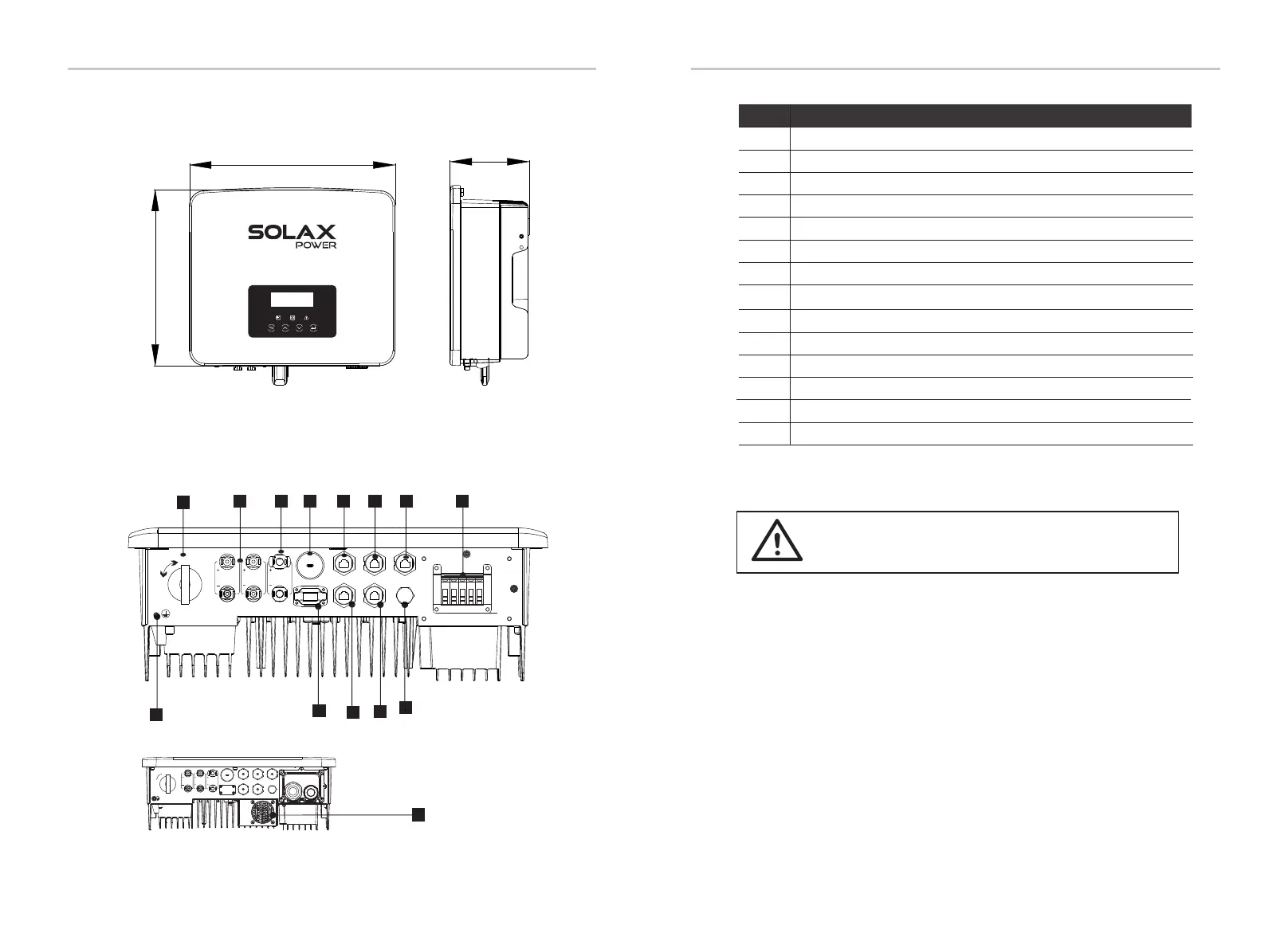

2.4 Dimension
482mm
417mm
181mm
IntroductionIntroduction
