SolaX Power X1-Hybrid G4 Series User Manual

X1-Hybrid G4 series inverter charge and discharge system can be
equipped with high voltage lithium battery and lead acid battery.
Please note that the maximum voltage of the battery should not
exceed 480 V, the rated voltage of the battery should not exceed 360 V ,
battery communication should be compatible with the X1-Hybrid G4
inverter.
Before connecting the battery, a non-polar DC MCB must be installed to
ensure safety.
Before maintenance, the inverter need to be safely disconnected.
Battery Breaker
Ø
Voltage
Current[A]
32A
Model
X1-Hybrid-3.0-D
X1-Hybrid-3.0-M
X1-Hybrid-3.7-D
X1-Hybrid-3.7-M
X1-Hybrid-5.0-D
X1-Hybrid-5.0-M
X1-Hybrid-6.0-D
X1-Hybrid-6.0-M
Nominal voltage of DC breaker should be larger than maximum
voltage of battery.
Battery connection diagram
Ø
High voltage lithium battery
- +
CAN/RS485
Non-polar
DC MCB
Power line connection
Communication line connection
Note:
When using SolaX batteries, the recommended number of
battery modules
(HV10045/HV10063/HV10058) is 1-3 units, and battery controller MC0500
unit.
... ...

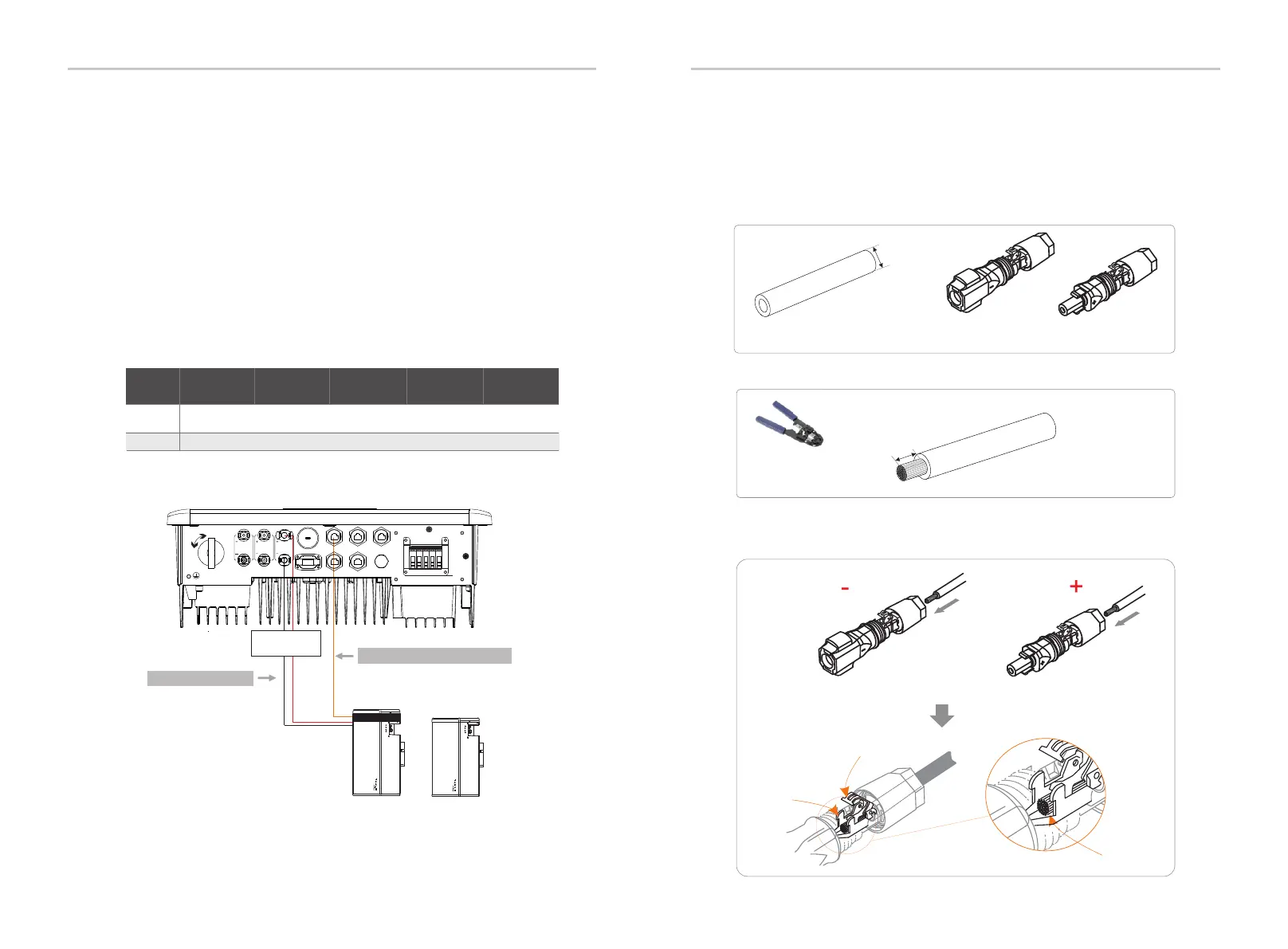

Battery connection steps:
Ø
Step 3. Insert the stripped cables into the DC plug (-) and DC Plug (+)
respectively.
DC plug (-) DC plug (+)
Step 2. Strip the insulation layer (length:15mm) at one end of the power line.
Diagonal pliers
Step 1. Prepare 8 AWG battery power line , find the DC plug (+), DC plug (-)
in the accessory bag.
BAT plug (+) BAT plug (-)
15
.
0mm
Spring
Cavity
The cable must pass through here
8 AW
G
Power line
Connection requirements
Ø
44
45
X1-Hybrid-7.5-D
X1-Hybrid-7.5-M
Electrical Connection
Electrical Connection
5.4 Battery Connection
ON
OFF
PV 1
PV 2
BAT
BMS
CAN
DRM
Upg rade
Don gle
Met er/CT
COM /LCD
Battery port connection line of the X1-Hybrid G4 M series
inverter is on the X1-Matebox, just connect it. It is necessary to
wire the D series according to the following steps.
