Step 6. Tighten the waterproof fastening head.

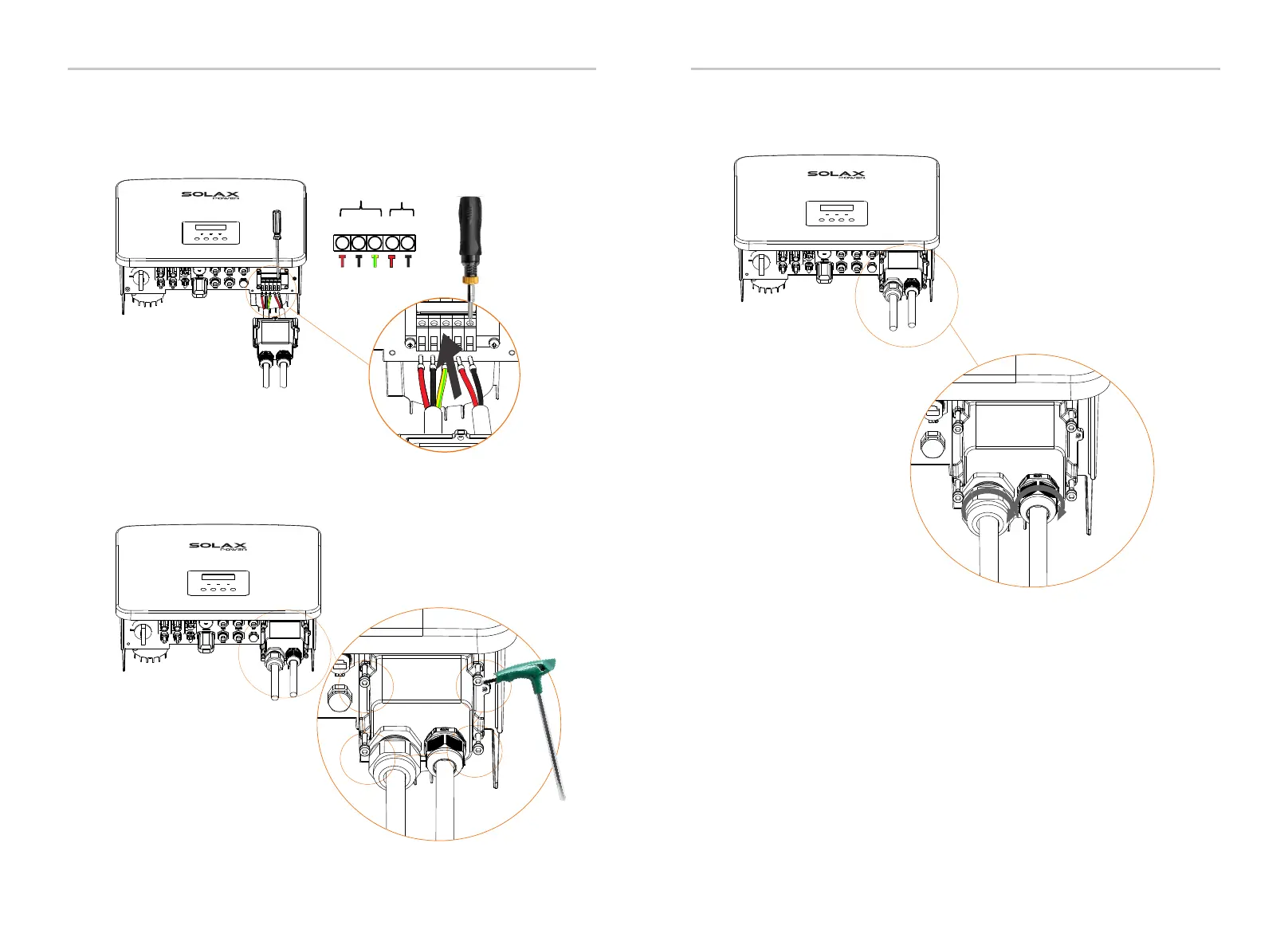

Step 4. Find the location of the AC interface on the inverter, insert the
crimped terminals into the UW10 terminals L, N, and P according to the
wire sequence, and use a flat-blade screwdriver to tighten the screws.
(Torque: 0.2±0.1N ·m)
Step 5. Install the AC waterproof cover, and tighten the screws on the four
sides of the waterproof cover with an Allen wrench.
Hexagon keys
( Torque: 0.4±0.1N ·m)
42
43
Electrical Connection
Electrical Connection
Torque screwdriver
( Torque: 0.2±0.1N ·m)
GRID
Off-grid
L N PE L N
To Next Page
