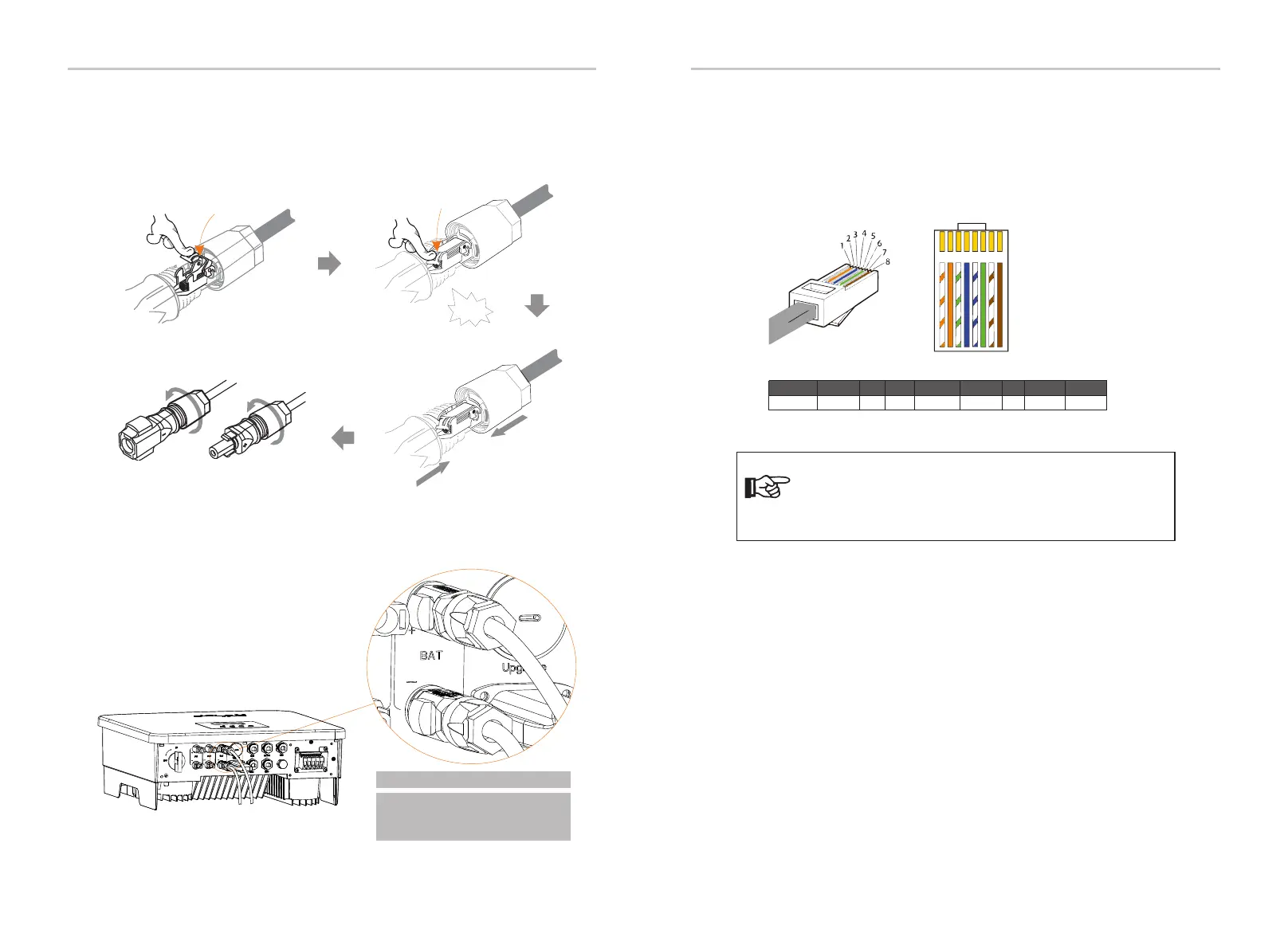

Step 3. Press down on the spring by hand, you can hear a click sound ,

then push the ends together, and tighten the screw joints.

Note: BAT port, not PV port!

Note: The positive and negative

wires of the battery are not

allowed to be reversed!

Step 4. Insert the battery power lines into the corresponding BAT port (+), (-)

of the inverter.

Spring

The communication interface between the inverter and the battery uses

the waterproof connector with Rj45.

BMS port definition

1 2

6 7 8

1) White with orange stripes

2) Orange

3) White with green stripes

4) Blue

5) White with blue stripes

6) Green

7) White with brown stripes

8) Brown

Note!

After the BMS communication between the battery

and the inverter is finished, the battery will work

normally.

Communication connection

Spring

Crack

BMS_CANH

GNDBAT_TEMP GND

BMS_CANL

3 4

6 7 81

X BMS_485A BMS_485B

Electrical Connection

Definition

SolaX Power X1-Hybrid G4 Series User Manual
