SolaX Power X1-Hybrid G4 Series User Manual

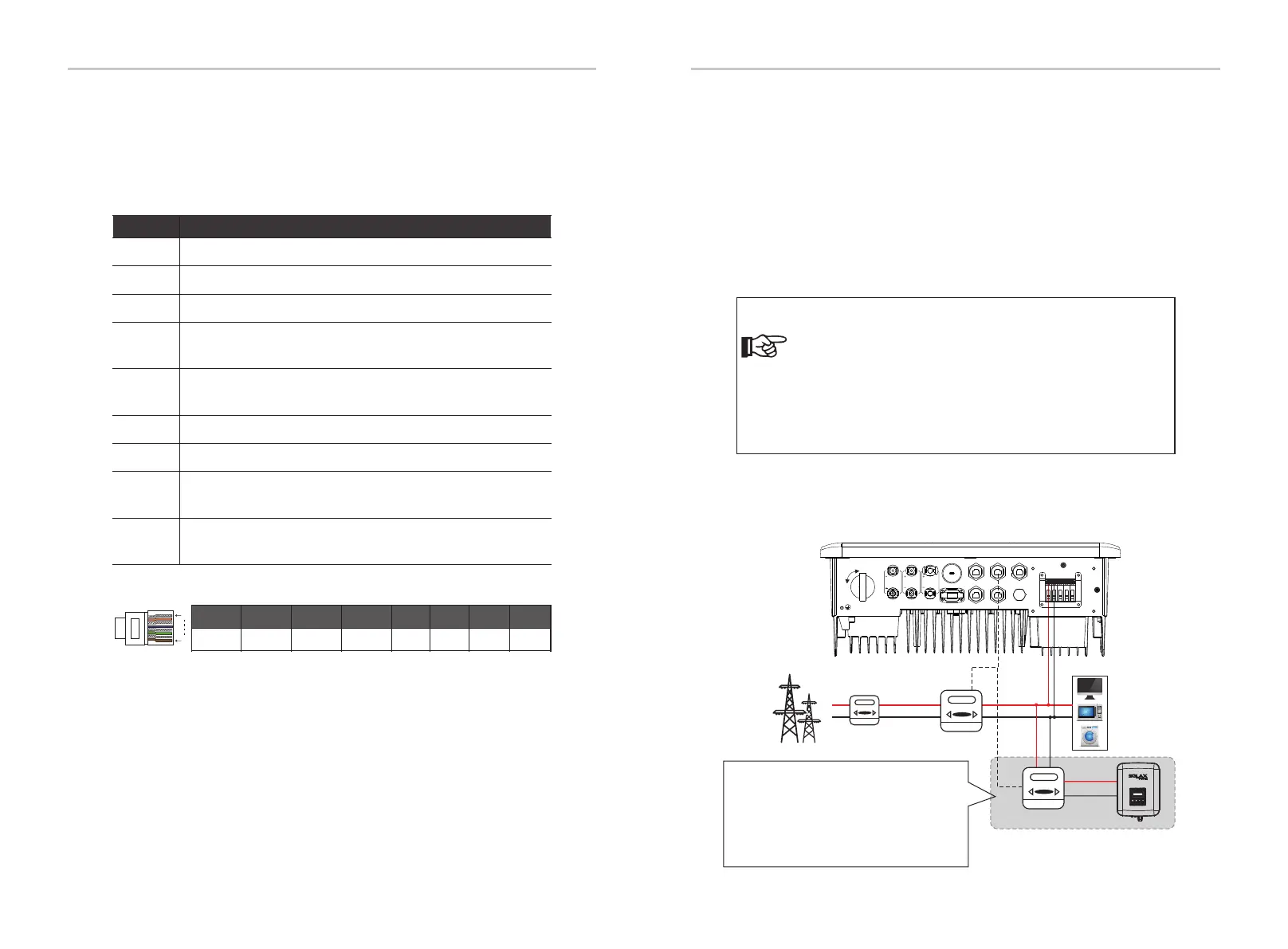

5.5.1 Introduction to DRM communication (AS4777 regulatory requirements)
DRM requirements:
DRM1/5 DRM2/6 DRM3/7
DRM4/8
+3.3V DRM0 GND GND
1 2 3 4 5 6 7 8
1
8
Mode
DRM0
Operation disconnect device
Do not generate power
Do not generate more than 75% of rated power AND
Sink reactive power if capable
Requirement
DRM5
Do not generate more than 50% of rated power
Increase power consumption
(subject to constraints from other active DRMs)
Do not consume more than 75% of rated power AND
Source reactive power if capable
DRM6
DRM7
DRM8
Increase power generation
(subject to constraints from other active DRMs)
Do not consume power
Do not consume more than 50% of rated power
DRM1
DRM2
DRM3
DRM4
Remarks:
Currently only PIN6 (DRM0) and PIN1 (DRM1/5) are functional, other
PIN functions are under development.
Note!
The meter or CT must be connected to the inverter, otherwise
the inverter will shut down and alarm SolaX "meter failure"alarm.
Smart meters must be authorized by SolaX , third party or
other companies ,Unauthorized meter may be incompatible
with the inverter.
SolaX will not be responsible for the impact caused by the use
of other appliances.
Electric meter connection diagram
X1-Hybrid G4 inverter should work with an electric meter or current
sensor (CT for short) to monitor household electricity usage.
The electricity meter or CT can transmit the relevant electricity data
to the inverter or platform , which is convenient for users to read at anytime.
Users can choose to use electric meters or CTs according to demand.
Please note that the meter/CT brand required by SolaX must be used.
5.5 Communication Connection
Ø
48
49
Electrical Connection
Electrical Connection
5.5.2 Introduction to meter/CT Communication
Grid
Household Meter
Single-phase meter
Load
L
N
Other power generation
equipment
Meter1
Meter2
If the user has other power generation
equipment (such as inverters) at home and
wants to monitor both, X1-Hybrid G4 inverter
provides Meter2 communication function to
monitor the power generation equipment.
For more information, please contact SolaX.
ON
OFF
PV 1
PV 2
BAT
BMS
CAN
DRM
Upg rade
DON GLE
MET ER/CT
COM /LCD
X1X1
