SolaX Power X1-Hybrid G4 Series User Manual

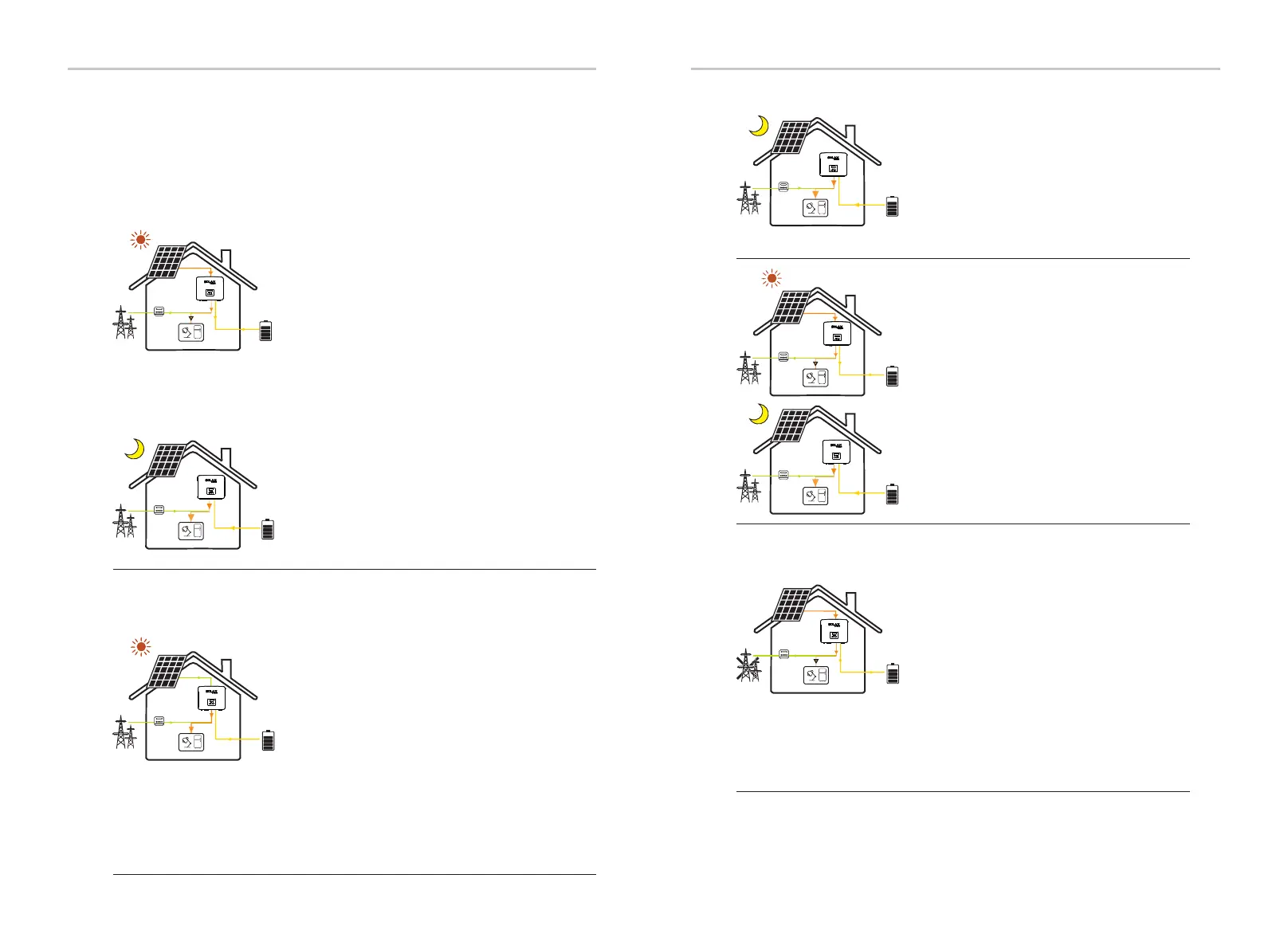

2.3 Work Modes
X1-Hybrid G4 series, can be based on different needs, there are a variety of models.
Self Use
The self-use mode is suitable for areas with low feed-in
subsidies and high electricity prices.
① When the power of PV is sufficient
Active Charging or Discharge time period:PV will power the
loads rstly, and surplus power will charge to the battery .
If the battery is fully charged, then sell the surplus power to
the grid;(The inverter will limit the output if Feed-in limit or
zero feed-in is needed )
(PV＞Load ,PV →Load→Battery → Grid)
② When the power of PV is insufficient
Active Charging time period: PV will power the loads rstly ,
the remaining power will be taken from the grid , the battery
will not discharge at this time.
(PV＜Load ,PV + Grid → Load)
Active Discharge time period: PV+BAT will power the loads
together. If the power is still not enough, the remaining
power will be taken from the grid.
(PV＜Load ,PV + Battery + Grid → Load)
③ Without PV power
Active Charging time period: The grid supplies the loads
and also can charge the battery;
(PV=0 , Grid → Load + Battery)
Active Discharge time period:The battery will power the
home loads rstly.If the battery power is not enough ,the
remaining power will be taken from the grid.The inverter
will enter into the standby state.
(PV=0 , Battery+Grid → Load )
Battery min SOC can be set:10%-100%
Feed-in priority
The off-grid is used when the power grid is off.
System will provides emergency power
through PV and batteries to supply power to the
household loads.
(Battery must be installed for this mode)
①When the power of PV is sufficent
PV will power the loads rstly, and surplus power
will charge to the battery.
(PV＞Load ,PV → Load → Battery)
②When the power of PV is insufficient
The remaining power will be taken from the battery.
(PV＜Load ,PV → Load)
③ Without PV power
The battery will power the emergency loads until
the battery reached the min SOC,then the inverter
will enter into the idle mode.
(PV=0, Battery → Load)
Off-grid
Backup mode
The back-up mode is suitable for areas with
frequent power outages.
Same working logic with “Self-use” mode.This
mode will maintain the battery capacity at a
relatively high level.(Users' setting) to ensure
that the emergency loads can be used when
the grid is off. Customers no need to worry
about the battery capacity.
Battery min SOC can be set:30%-100%
Backup mode SOC adjustment range :30%-100%;
In Backup mode, SOC-min under off-grid
condition is 10%, which cannot be modied;
①
②
③
①
②
14
15
IntroductionIntroduction
①
②
③
①
②
①
②
①
②
③
①
②
③
Note: in the case of grid connection, all working modes work normally when the battery
SOC >5%.When the battery charge rate is below 5%, the PV or Grid will first charge the
battery SOC11%, and then return to the working mode selected by the user.
The Feed-in priority mode is suitable for areas with high
feed-in subsidies, but has feed-in power limitation.
①When the power of PV is sufficient
Active Charging time period :PV will power the loads rstly,
and surplus power will feed-in to the grid. If the feed-in power
has been limited ,the surplus power can charge the battery.
(PV＞Load ,PV → Load → Grid → Battery)
Active Discharge time period :PV will power the loads rstly,
and surplus power will feed-in to the grid.
(PV＞Load ,PV → Load → Grid )
②When the power of PV is insufficient
Active Charging time period :PV will power the loads rstly,
the remaining power will be taken from the grid. The battery
will not discharge.
(PV＜Load,PV + Grid → Load)
Discharge time period: PV+BAT will power the loads together.
If the power is still not enough, the remaining power will be
taken from the grid.
(PV＜Load ,PV + Battery + Grid → Load)
③Without PV power
Active Charging time period:The grid will power
the home loads and also charge the battery;
(PV=0 , Grid → Load +Battery)
Active Discharge time period:The battery will
power the home loads rstly.If the battery power
is not enough,the remaining power will be taken
from the grid.The inverter will enter into the
standby state.
(PV=0 , Battery+Grid → Load)
Battery min SOC can be set:10%-100%
