The protection level of X1-Hybrid G4 series inverters is IP 65, so that the
inverter can be installed outdoors.
Check the installation environment and pay attention to the following
conditions when installing:
• Do not expose to strong light.
• Do not touch flammable building materials.
• Do not approach flammable and explosive gases or liquids (e.g. where
chemicals are stored).
• Do not touch cold air directly.
• Do not approach TV antenna or cable.
• Do not place in areas above 3000 meters above sea level.
• Do not install in precipitation or high humidity , which may cause
corrosion or damage Internal devices.
• Keep the system out of reach of children.
If the inverter is installed in a narrow area, be sure to reserve appropriate
space for heat dissipation.
The ambient temperature of the installation site is -35 ~60 .°C °C
The maximum angle range of wall tilt ±5°.
Avoid direct sunlight, rain and snow weather.
No direct sunlight
No Rain Exposure
No snow Lay up
Direct Sunlight
Rain Exposure
Snow Lay up

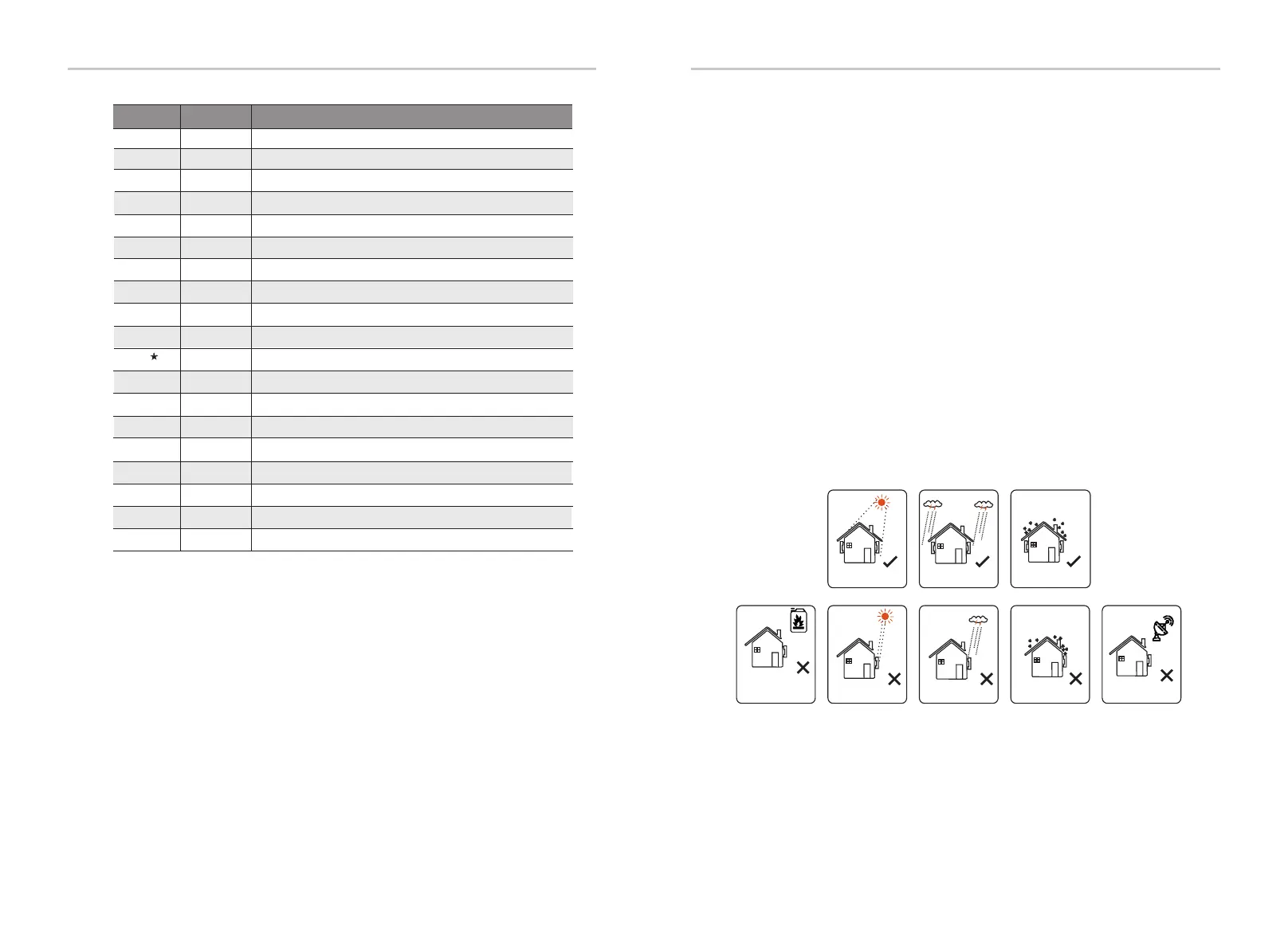

4.3 Installation Precautions
Stay away from
antenna cables
Stay away from
combustibles
InstallationInstallation
1A
B
C
D
E
F
G
H
I
J
K
1
1
4
4/3
3
1
4
1
Quick Installation Guide
Description
L
M
1
2
10AWG European terminals
Number
Quantity
X1-Hybrid G4 series inverter.
Bracket
Waterproof connector with Rj45
PV terminal (positive*2 , negative*2 )
Waterproof connector with RJ45 (COM/CAN/DRM/CT )
8AWG European terminals
(Expansion bolt ,Gasket,Self-tapping bolt)*3
Battery connection terminals(positive*1 , negative*1 )
N
1
O
11
OT terminal(inverter grounding)
P
1
Meter( optional )
Manual
3
Q
1
Pocket WiFi
1
CT
R
2
▲
1
Warranty Card
☆
☆
Note : “ C” \“ D” \“ E” \“ F” \”G“ \” I”and ”S“ accessories are not included in the accessory package of M 
series inverter ,but included in X1-Matebox.
“Q” is the standard part of M-series inverter and the optional part of D-series inverter.
“ K ” The inverter in Australia needs to be connected to DRM , which is 1 more 
communication line adapter than that in other countries, while the other countries only
need 2 communication line adapters.
☆
☆
☆
☆
M5 inner hexagon bolt
PV pin angle(positive*2,negative*2)
S
1
Rj45 terminals
☆
☆
