The user must make two ground connections :one shell grounding, and one

equipotential grounding .This prevents electric shock.

Ground connection steps:

Step 2. Strip the grounding cable insulation(lenhth”L2), insert the

stripped cable into the ring terminal, and then clamp it.

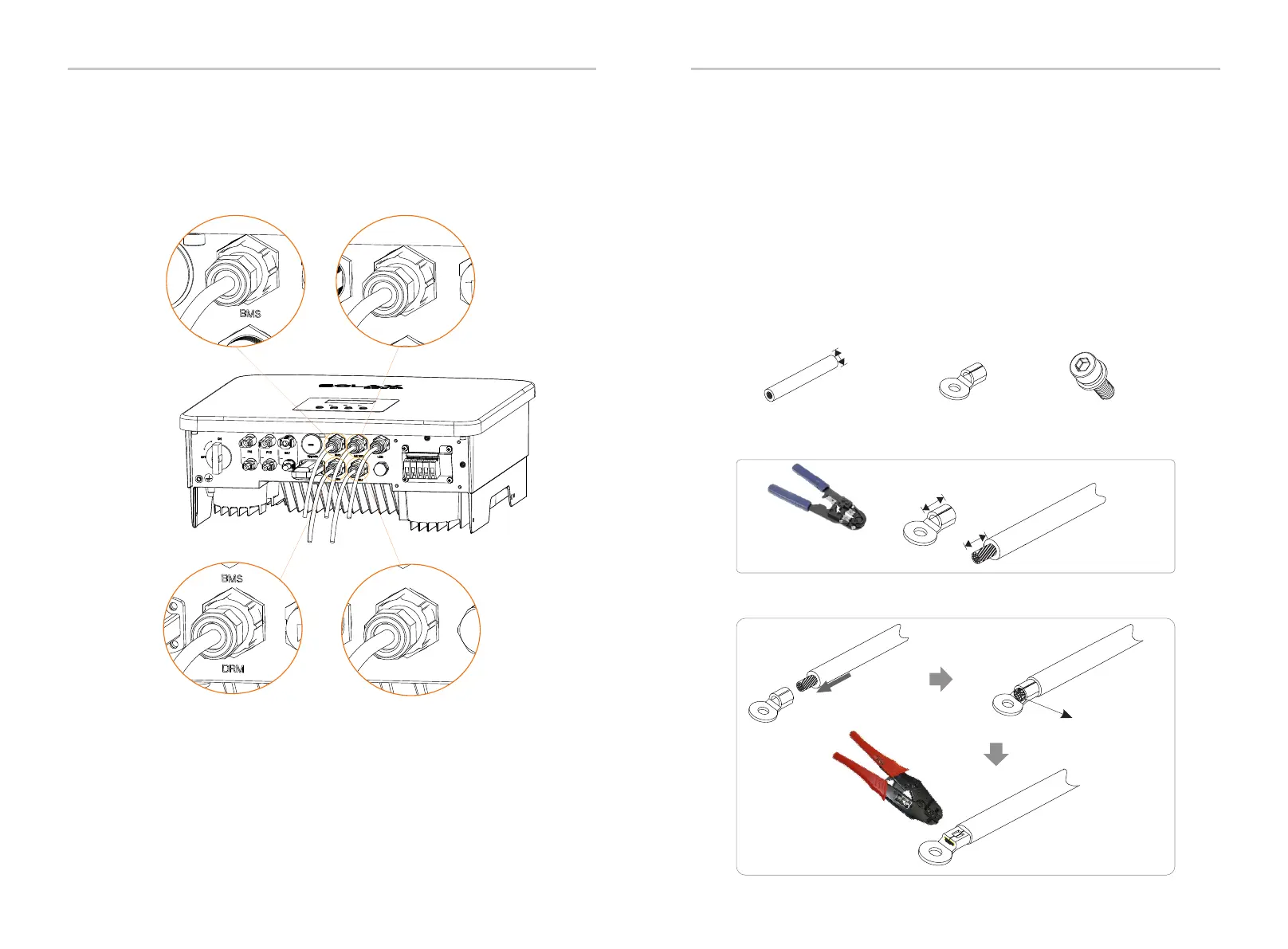

Step 1. Prepare a one-core cable (12AWG), and then find the ground

terminal in the accessories.

One-core cable (12 AWG)

OT terminal

12AWG

L2=L1+3mm

Diagonal pliers

Step 3. Insert the stripped cable into OT terminal and tighten the terminal

with a terminal crimping tool.

Leaking cable

Hexagon socket screws

Step 5: Finally, find the corresponding COM, METER, CT, DRM poets on the

inverter and insert the communication cable into the corresponding ports.

Note: If the PV end of the inverter is not connected with earth , the inverter

will turn on a red light Inspect and report ISO Fault .This inverter complies

with IEC 62109-2 clause 13.9 for earth fault alarm monitoring.

The ground wire port of X1-Hybrid G4 M series inverter has been

connected, and the D series needs to be wired according to the

following steps.

Crimping Tool

Meter/CT

COM/LCD

Electrical Connection

5.6 Grounding Connection (mandatory)
