SolaX Power X1-Hybrid G4 Series User Manual

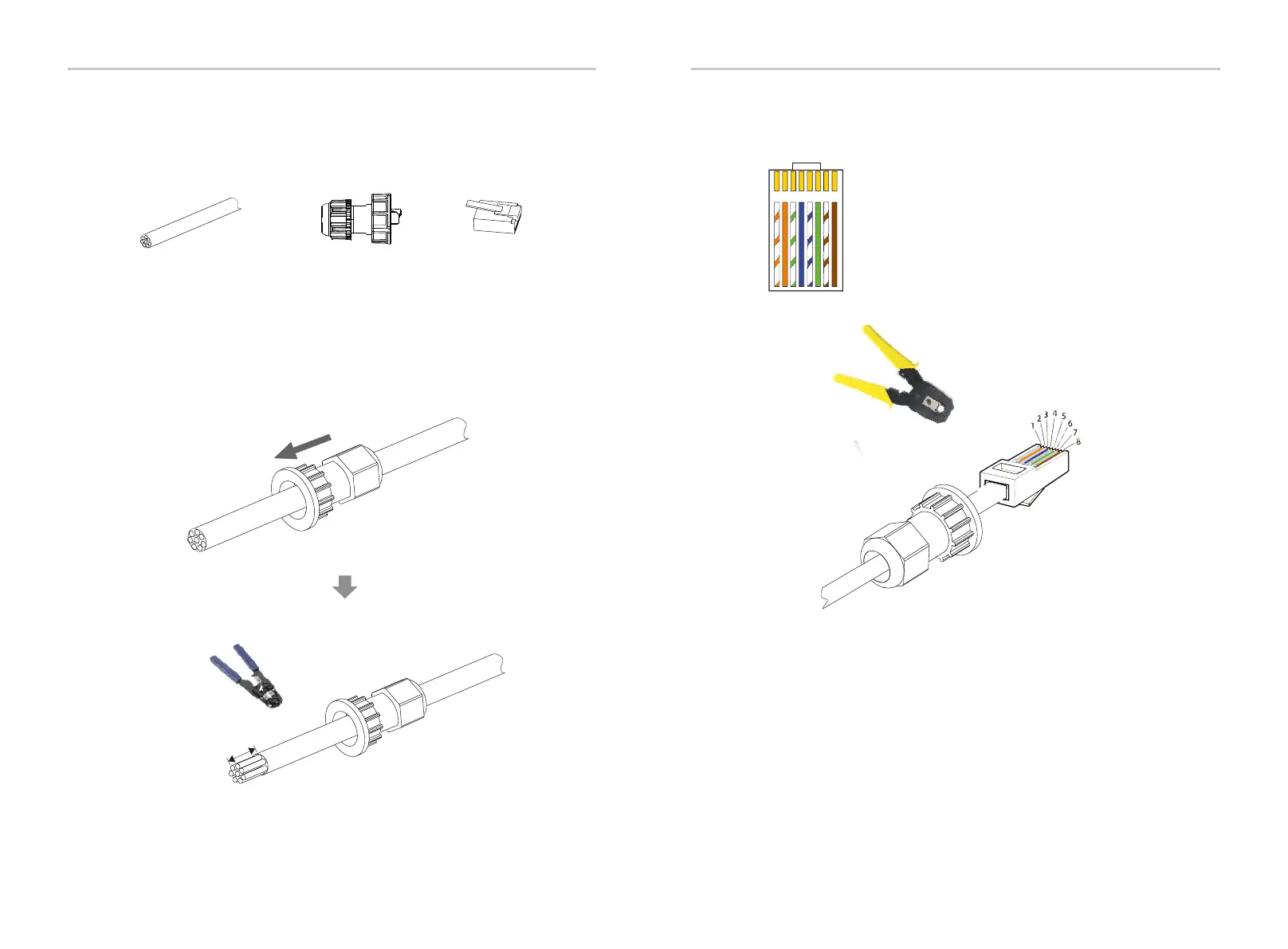

Step 1. Prepare a communication cable, and then find the communication
adapter in the accessory bag.
Communication cable
Waterproof connector with Rj45
Step 2 Insert the communication cable through the communication
adapter, and peel off the outer insulation layer of15mm.
1
5
.00
mm
1 2
3
4
5
6 7 8
1) White with orange stripes
2) Orange
3) White with green stripes
4) Blue
5) White with blue stripes
6) Green
7) White with brown stripes
8) Brown
Multifunction terminal
54
55
Diagonal pliers
Step 3. Insert the prepared communication cables into the RJ45 terminals
in sequence , and then use network cable crimping pliers to
press them tightly.
crimping tool (RJ45)
Electrical Connection
Electrical Connection
5.5.4 Communication Connection Steps
Rj45 terminal
