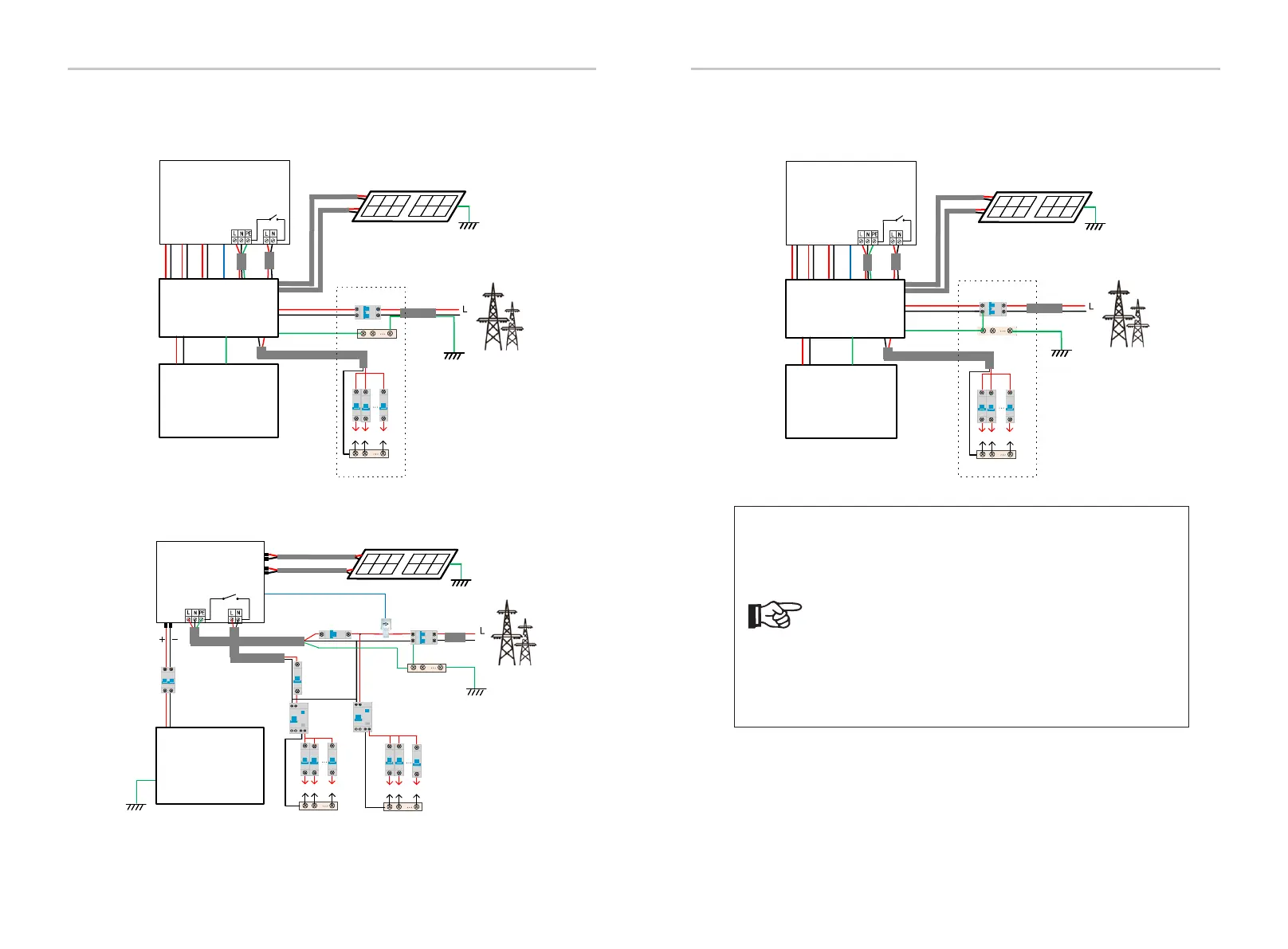

Diagram B: Neutral line and PE line are separated from each other,
all loads connect to the Off-grid port;(For most countries)
Diagram C: Neutral line and PE line are combined togeter, and the
common load is connected to the off-grid port;(Apply to Australia)
12
13
Diagram D: Neutral line and PE line are combined together, all
loads connect to the Off-grid port;(Apply to Australia)
Note!
• When power cuts suddenly, the inverter connects the N
line of off-grid load with the ground through relay,
providing a xed zero potential for off-grid load and
ensuring the safety of electricity use by users.
• Please control the inverter load and make sure it is
"output value" in "within " Off-grid mode, otherwise the
inverter will stop and alarm overload fault".
• Please confirm with the grid operator whether there are
special regulations for grid connection.
IntroductionIntroduction
X1-Matebox
CT
Distrbution Box
Battery
Grid
Off-grid
PV 1PV 2
E-BAR
Grid
Breaker
Loads
N-BAR for loads
N
Main Breaker
BAT
X1-Hybrid G4
PE
X1-Matebox
CT
Distrbution Box
Battery
Grid
Off-grid
PV 1PV 2
E-BAR
Grid
Breaker
Loads
N-BAR for loads
N
Main Breaker
BAT
X1-Hybrid G4
N
BAT
Battery
N-BAR for loads
N-BAR for off-grid loads
off-grid loads
Loads
X1-Hybrid G4
PV 1
PV 2
E-BAR
RCD
Breaker
Grid
Breaker
Grid
Off-grid
Main Breaker/RCD
Breaker
Breaker
CT
CT
Breaker
RCD
