SolaX Power X1-Hybrid G4 Series User Manual

Grid
Off-grid

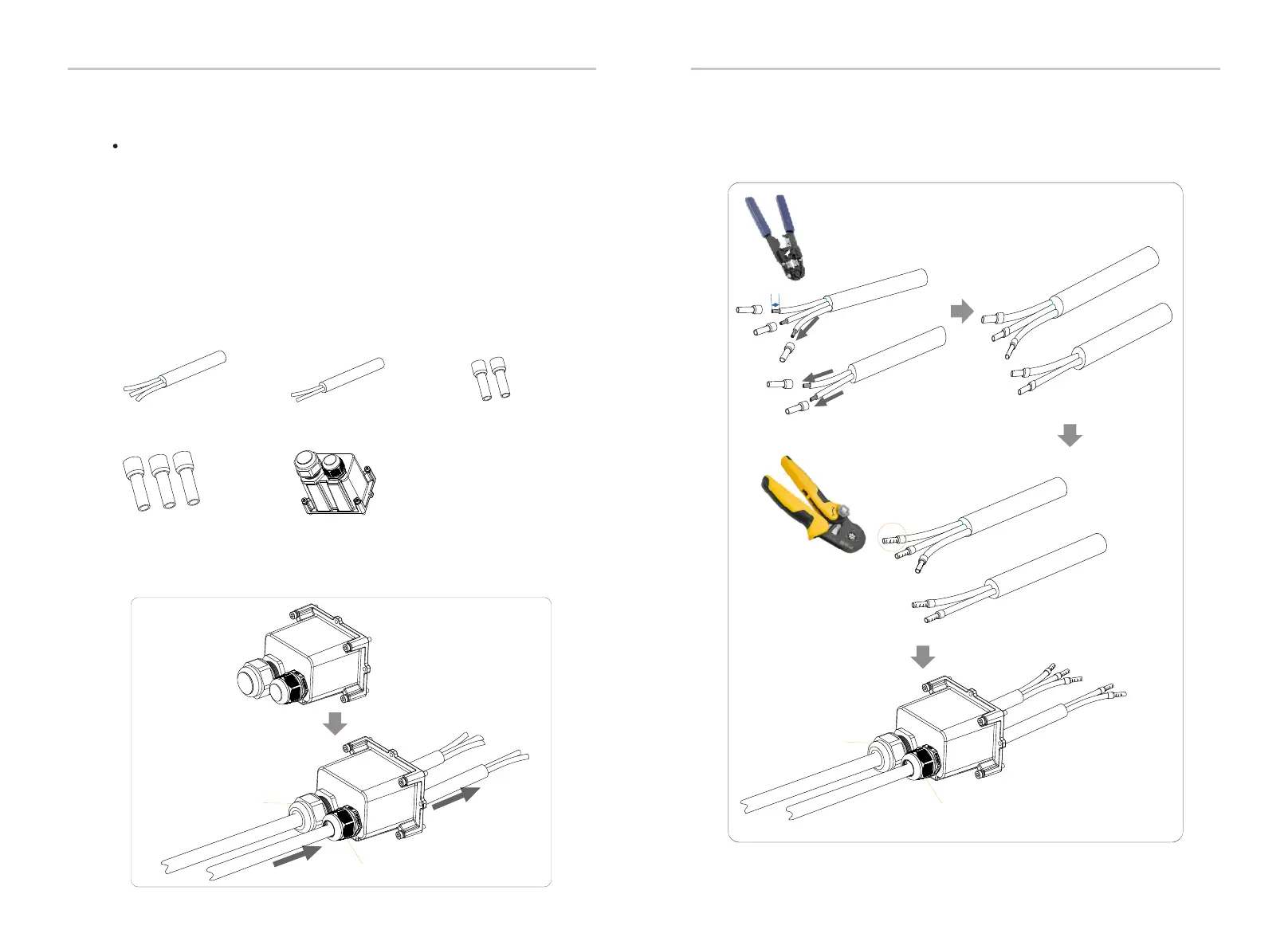

Step 3. Remove the 12mm insulation layer at the end of the wire. Insert
the European-style terminals respectively, and make sure that the stripped
ends are inserted into the European-style terminal ,and finally use
crimping pliers to press tightly.
L=
12mm
L
Diagonal pliers
Crimping Tool
40
41
Electrical Connection
Electrical Connection
Grid
Off-grid
Note: Check the grid voltage and compare the voltage range
(see technical data).
Disconnect the circuit board from all power sources to prevent electric
shock.
The Grid and Off-grid ports of X1-Hybrid G4 M series inverter have
been connected, and the D series needs to be wired according to the
following steps.
Step 1. Prepare a Grid cable (three-core wire) and an Off-grid cable
(two-core wire), and then find the European terminal and waterproof
cover in the accessory bag.
10AWG Euro Terminal*2
Waterproof cover
Grid( Triple Core Cable)
8AWG*3
Ø
Off-grid( Double Core Cable)
10AWG*2
Euro Terminal 8AWG *3
Grid and Off-grid connection steps
Connection requirements
Step 2: The Grid and Off-grid cables go through the corresponding Grid
and Off-grid ports of the waterproof cover.
