38
39
Off-grid load requirements
Ø
Ensure that the Off-grid load rated power is within the Off-grid
rated output power range, otherwise, the inverter will report
an "overload" warning.
When “overload” occurs, adjust the load power to make sure it
is within the Off-grid rated output power range,and the
inverter will automatically return to normal.
For non-linear loads, ensure that the inrush current power is
within the Off-grid rated output power range.
When the configuration current is less than the maximum DC
input current, the capacity and voltage of lithium batteryand
lead acid battery will decrease linearly.
The following table shows some common loads for your reference.
Note: Please check with the manufacturer for high-power inductive loads.
Content
Power
Start
Rated
Common
equipment
Instance
Resistive load
Inductive load
X 1 X 1
X 3~5 X 2
Start
Rated
100VA
( W )
100VA
( W )
450 - 750VA
(W)
300VA
(W)
Equipment
Fan
Fridge Fridge
150W
Incandescent
lamp
Incandescent
lamp
100W
Warning!
Electrical Connections
Electrical Connections
X1-Matebox is a convenient wiring accessory. Please refer to
X1-Matebox for details. If you need to purchase X1-Matebox,
In full load scheme Diagram B and Diagram D, set "X1-
Matebox" to "Enable" under Settings;
The Australian customer must shorten the N lines of the
Grid and the off-Grid in the X1-Matebox.
If your local wiring method does not follow the above
operation guide, especially the neutral wire, ground
wire, RCD wire, please contact our company before
operation.

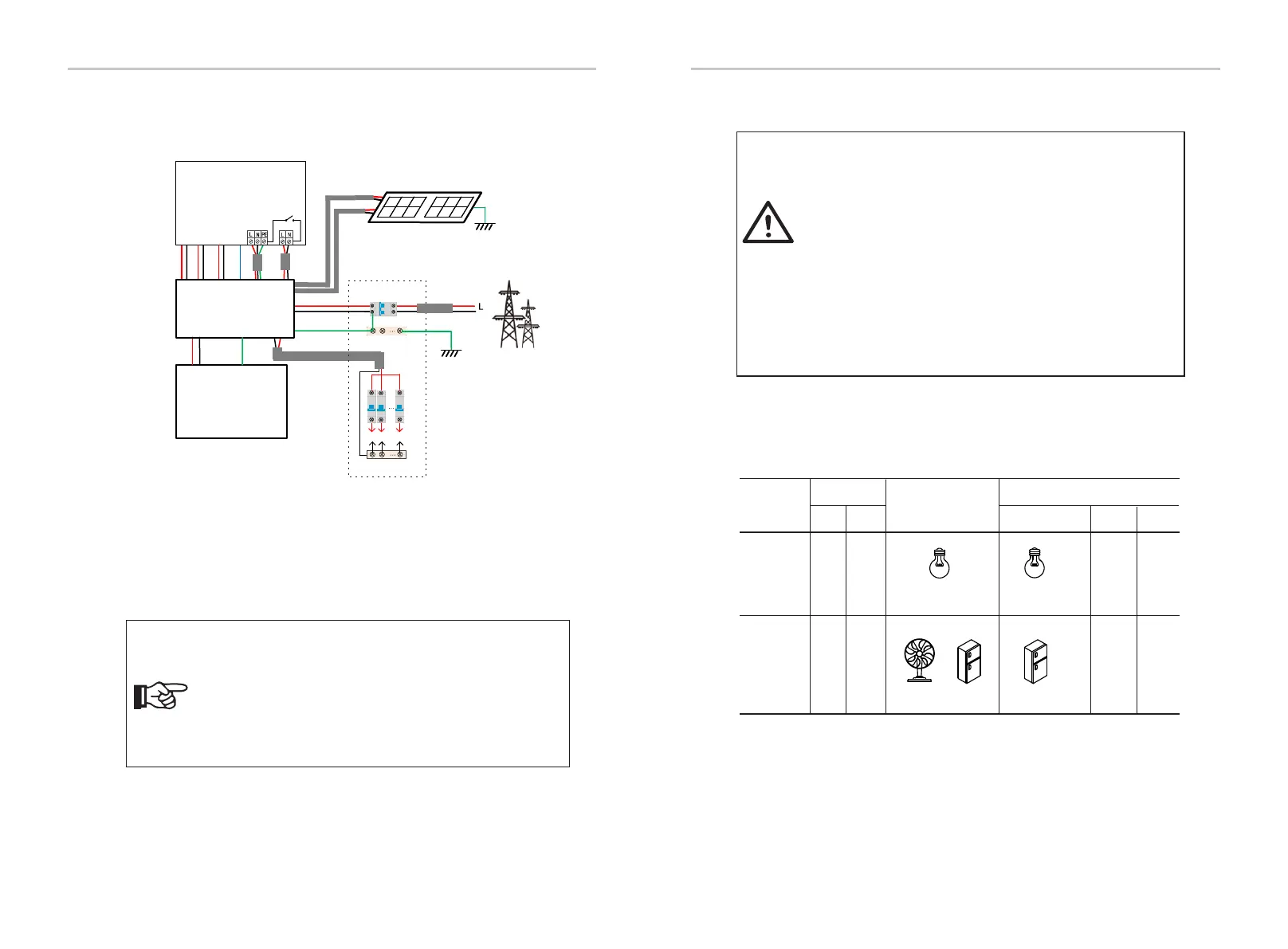

Diagram D: Neutral line and PE line are combined together, all
loads connect to the Off-grid port;(Apply to Australia)
X1-Matebox
CT
Distrbution Box
Battery
Grid
Off-grid
PV 1PV 2
E-BAR
Grid
Breaker
Loads
N-BAR for loads
N
Main Breaker
BAT
X1-Hybrid G4
To Next Page
