Step 5. The PV joint is divided into 2 parts - the plug and the fastening head.
Insert the cable through the fastening head and the opposite plug.
Note that the red and black lines correspond to different of plugs. Finally,
force the cable pair into the plug, will a "click" sound,which indicates that the
connection is complete.
Step 6. Tighten the fastening head and into insert the corresponding
positive and negative (PV-/PV+) ports of the inverter.
Step 4. Tighten the PV pin needle and the wiring harness to make the
connection tight without looseness.
Crimping Tool
Negative
Positive
Positive terminal
Negative terminal
Electrical Connections
Electrical Connections
7.0
m
m

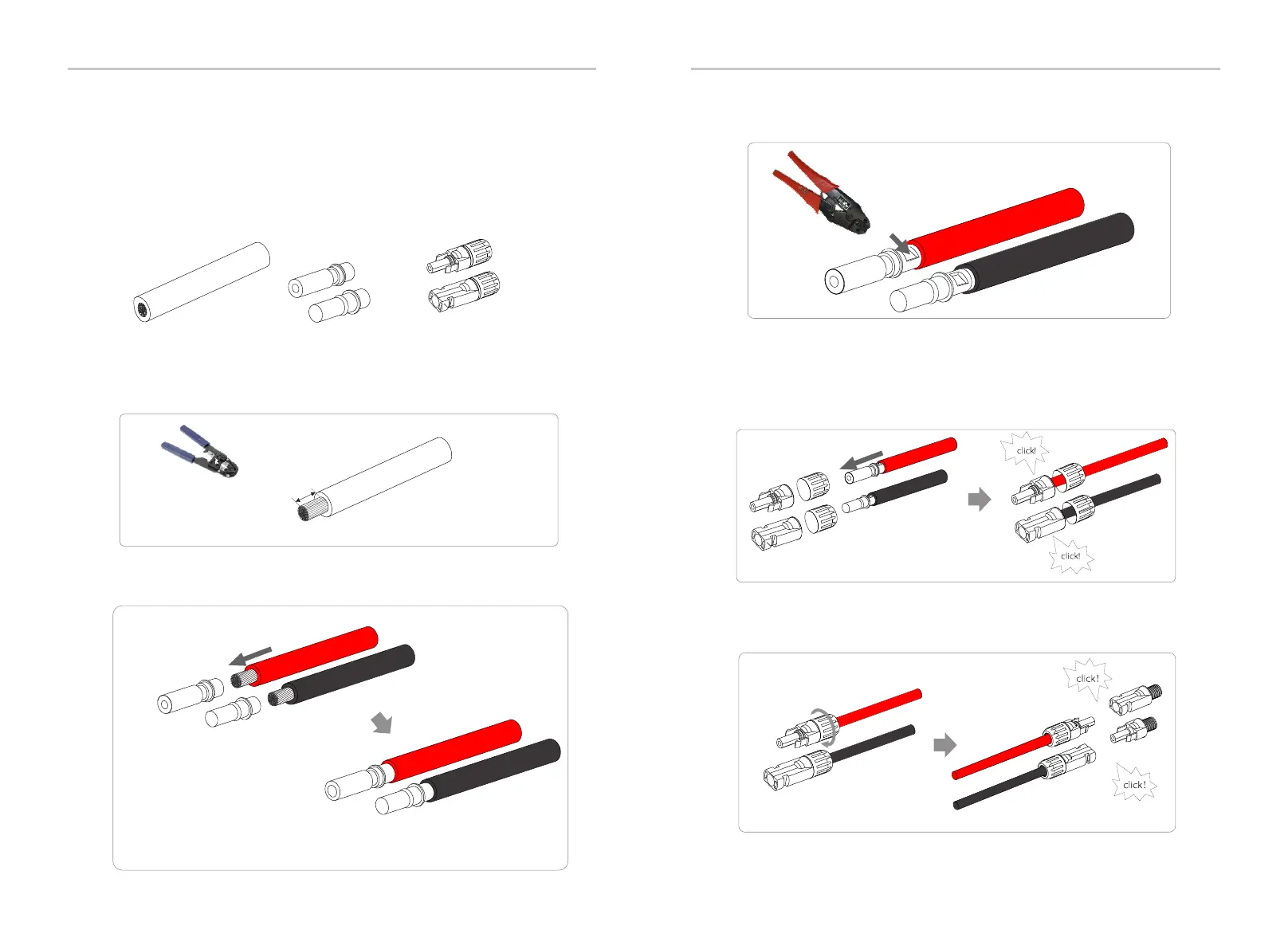

Step 1. Turn off the DC switch, connect the PV module, prepare a 12AWG
PV cable, and find the PV (+) terminal and PV (-) terminal in the package.
Step 3. Tighten the cable with the insulation layer stripped and insert it into
the metal terminal (see Figure 1), make sure all wires are inserted Into the
metal terminal (see Figure 2).
Step 2. Use a wire stripper to strip the 7mm insulation layer of the wire end.
Connection step
Wire stripper
Figure 1
Figure 2
Ø
PV cable
PV pin
Negative terminal
Positive terminal
Positive PV pin
Negative PV pin
Positive metal terminal
Negative metal terminal
The PV port wiring of X1-Hybrid G4 M series inverter has been
completed. On X1-Matebox, the D series needs to be wired
according to the following steps.
