SolaX Power X3-Hybrid Series User Manual

The protection level of the inverter is IP 65, so that the inverter can be
installed outdoors.
Check the installation environment and pay attention to the following
conditions when installing:
• Do not expose to strong light.
• Do not touch flammable building materials.
• Do not approach flammable and explosive gases or liquids (e.g. where
chemicals are stored).
• Do not touch cold air directly.
• Do not approach TV antenna or cable.
• Do not place in areas above 3000 meters above sea level.
• Do not install in precipitation or high humidity, which may cause
corrosion or damage Internal devices.
• Keep the system out of reach of children.
If the inverter is installed in a narrow area, be sure to reserve appropriate
space for heat dissipation.
The ambient temperature of the installation site is -35 ~60 .°C °C
The maximum angle range of wall tilt ±5°.
Avoid direct sunlight, rain and snow weather.

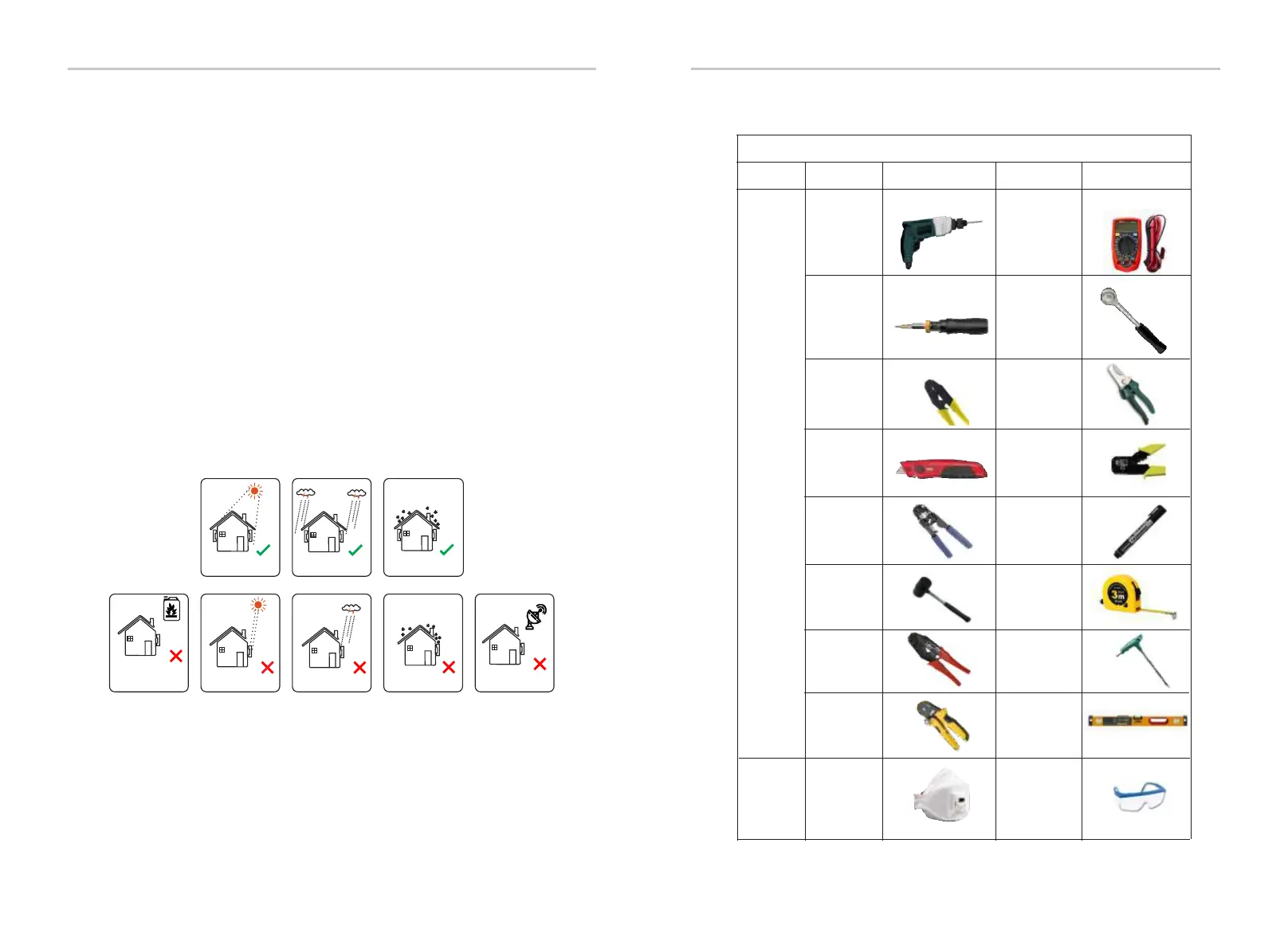

4.3 Installation Precautions
No direct sunlight
No Rain Exposure
No snow Lay up
Direct Sunlight
Rain Exposure
Snow Lay up
Stay away from
antenna cables
Stay away from
combustibles
InstallationInstallation
4.4 Tool preparation
Type
Machine Installation Tools
Tool equipment
Bit Φ8
Name
Hammer
drill
Socket
wrench set
(Hexagon)
Torque
screwdriver
Name
Utility knife
wire stripper
Multifunction
terminal
crimping
tool (RJ45)
Multimeter
Marker
Tape
measure
Protective
glasses
Dustproof
Cover
Individual
Protection
Tools
Rubber
hammer
OT
terminals
press clamp
0.5mm²~6mm²
Euro
terminal
crimping
tool
Hexagon
keys
Spirit level
Crimping
Tool
Diagonal
poliers
Crosshead M5
DC Voltage
Range ≥1100 V DC
24
25

SolaX Power X3-Hybrid Series Specifications

General

Number of MPP Trackers	2
Model	X3-Hybrid Series
Phase	Three Phase
Communication Interfaces	RS485
Battery Compatibility	Lithium-Ion
Grid Frequency	50Hz / 60Hz
Operating Temperature	-25 ~ +60 °C
