SolaX Power X3-Hybrid Series User Manual

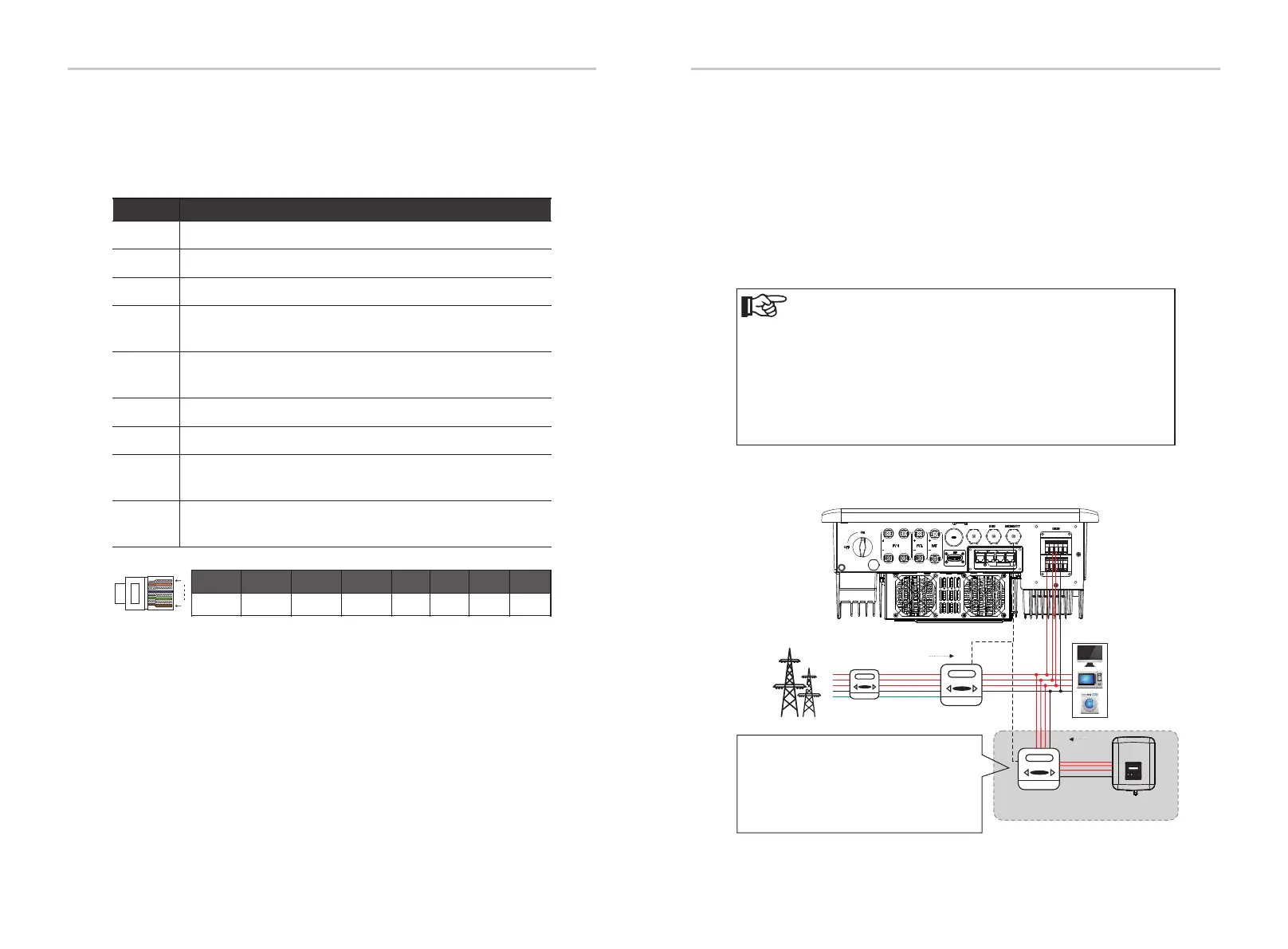

5.5.1 Introduction to DRM communication (AS4777 regulatory requirements)
DRM requirements:
DRM1/5 DRM2/6 DRM3/7
DRM4/8
+3.3V DRM0 GND GND
1 2 3 4 5 6 7 8
1
8
Mode
DRM0
Operation disconnect device
Do not generate power
Do not generate more than 75% of rated power AND
Sink reactive power if capable
Requirement
DRM5
Do not generate more than 50% of rated power
Increase power consumption
(subject to constraints from other active DRMs)
Do not consume more than 75% of rated power AND
Source reactive power if capable
DRM6
DRM7
DRM8
Increase power generation
(subject to constraints from other active DRMs)
Do not consume power
Do not consume more than 50% of rated power
DRM1
DRM2
DRM3
DRM4
Note!
Currently only PIN6 (DRM0) and PIN1 (DRM1/5) are functional, other
PIN functions are under development.
Note!
The meter or CT must be connected to the inverter, otherwise
the inverter will shut down and alarm "meter failure"alarm.
Smart meters must be authorized by our company, third party
or other companies, Unauthorized meter may be incompatible
with the inverter.
Our company will not be responsible for the impact caused by
the use of other appliances.
The inverter should work with an electric meter or current sensor (CT for
short) to monitor household electricity usage. The electricity meter or CT
can transmit the relevant electricity data to the inverter or platform,
which is convenient for users to read at anytime.
Users can choose to use electric meters or CTs according to their needs.
Please note that the meter/CT brand required by our company must be
used.
5.5 Communication Connection
Ø Electric meter connection diagram
Electrical Connection
Electrical Connection
5.5.2 Introduction to meter/CT Communication
50
51
Note: If you want to connect the meter, please ground the GND terminal of the Meter1.
Grid
Household Meter
Load
L1
N
Other power
generation equipment
Meter1
Meter2
If the user has other power generation
equipment (such as inverter) at home and
wants to monitor both, the inverter provides
Meter2 communication function to
monitor the power generation equipment.
For more information, please contact us.
EPS
L2
L3
com
PE
(three-phase meter)
(three-phase meter)
in out
out in
Upg rade/ Dongl e
