Safety
Ø Battery Safety Instructions
Safety
Warning!
High leakage Current!
Earth connection essential before connecting supply.
Ø PE Connection and Leakage Current
• All inverter’s incorporate a certified internal Residual Current Monitoring
(RCM) in order to protect against possible electrocution and fire hazard
in case of a malfunction in the PV array, cables or inverter.
There are 2 trip thresholds for the RCM as required for certification
(IEC 62109-2:2011).
The default value for electrocution protection is 30mA, and for slow
rising current is 300mA.

• If an external RCD is required by local regulations, it is recommended to
choose a Type-A RCD with the rating residual current of 300 mA.
Symbols on the Type Label
CE mark.
The inverter complies with the requirements of the
applicable CE guidelines.
Symbols
TUV certified.
RCM remark.
UKCA mark.
The inverter complies with the requirements of the
applicable UKCA guidelines.
UKNI mark.
The inverter complies with the requirements of the
applicable UKNI guidelines.

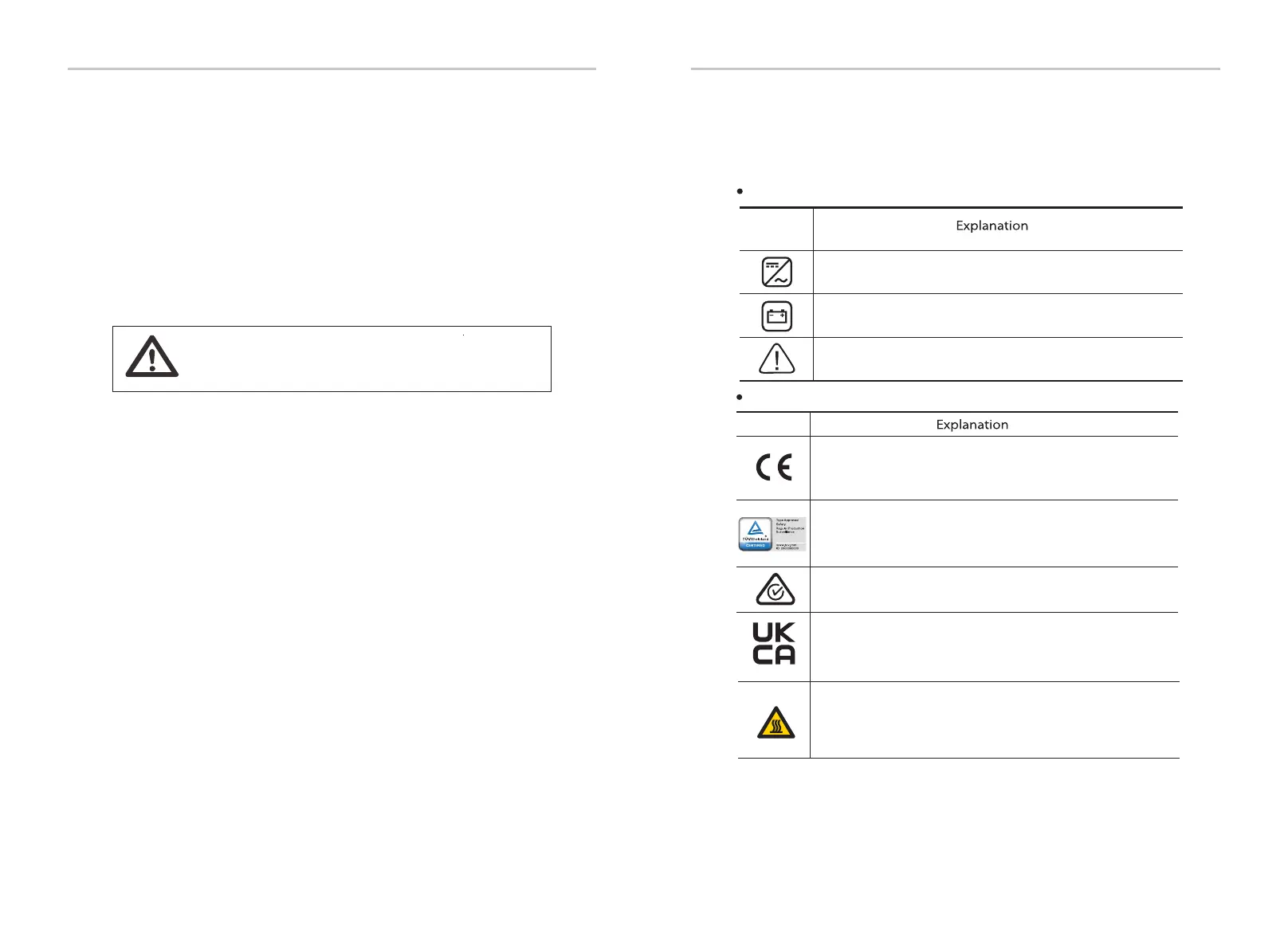

1.3.2 Explanation of Symbols
This section gives an explanation of all the symbols shown on the inverter
and on the type label.
Symbols on the Inverter
Battery status
Operating Display
An error has occurred, please inform your installer immediately
Symbols
Beware of hot surface.
The inverter can become hot during operation. Avoid
contact during operation.
The inverter should pair with high voltage battery, for the specic
parameters such as battery type, nominal voltage and nominal
capacity etc., please refer to section 3.3.
Please refer to the matching battery specication for details.
For United Kingdom
• The installation that connects the equipment to the supply
terminals shall comply with the requirements of BS 7671.
• Electrical installation of PV system shall comply with requirements
of BS 7671 and IEC 60364-7-712.
• All protective devices cannot be changed.
• User shall ensure that equipment is so installed, designed and
operated to maintain at all times compliance with the requirements
of ESQCR22(1)(a).
• A faulty ground connection can result in equipment failure,
personal and death injuries, and electromagnetic interference.
• Ensure correct according to grounding to IEC62109 and conductor
diameter according to STANDARD specification.
• Do not connect the grounding end of the equipment in series to
prevent multi-point grounding.
• Electrical appliances must be installed in accordance with the
wiring rules of each country.

SolaX Power X3-Hybrid Series Specifications

General

Number of MPP Trackers	2
Model	X3-Hybrid Series
Phase	Three Phase
Communication Interfaces	RS485
Battery Compatibility	Lithium-Ion
Grid Frequency	50Hz / 60Hz
Operating Temperature	-25 ~ +60 °C
