Ø Grid port connection
The inverter has an EPS(Off-grid) function. When the grid is connected,
the inverter outputs go through the Grid port, and when the grid is
disconnected, the inverter outputs go through the EPS(Off-grid) port.
The EPS(Off-grid) function can be connected to part of the load, Please
refer to the following diagram for the wiring.
If you want to save installation time, you will need an accessory. If you
need a solution, please contact our sales staff.
For to different local wiring rules, please refer to the diagram below
Please select the appropriate wiring method according to local wiring
rules.
Ø EPS(Off-grid) wiring diagram
Electrical Connections
Electrical Connections

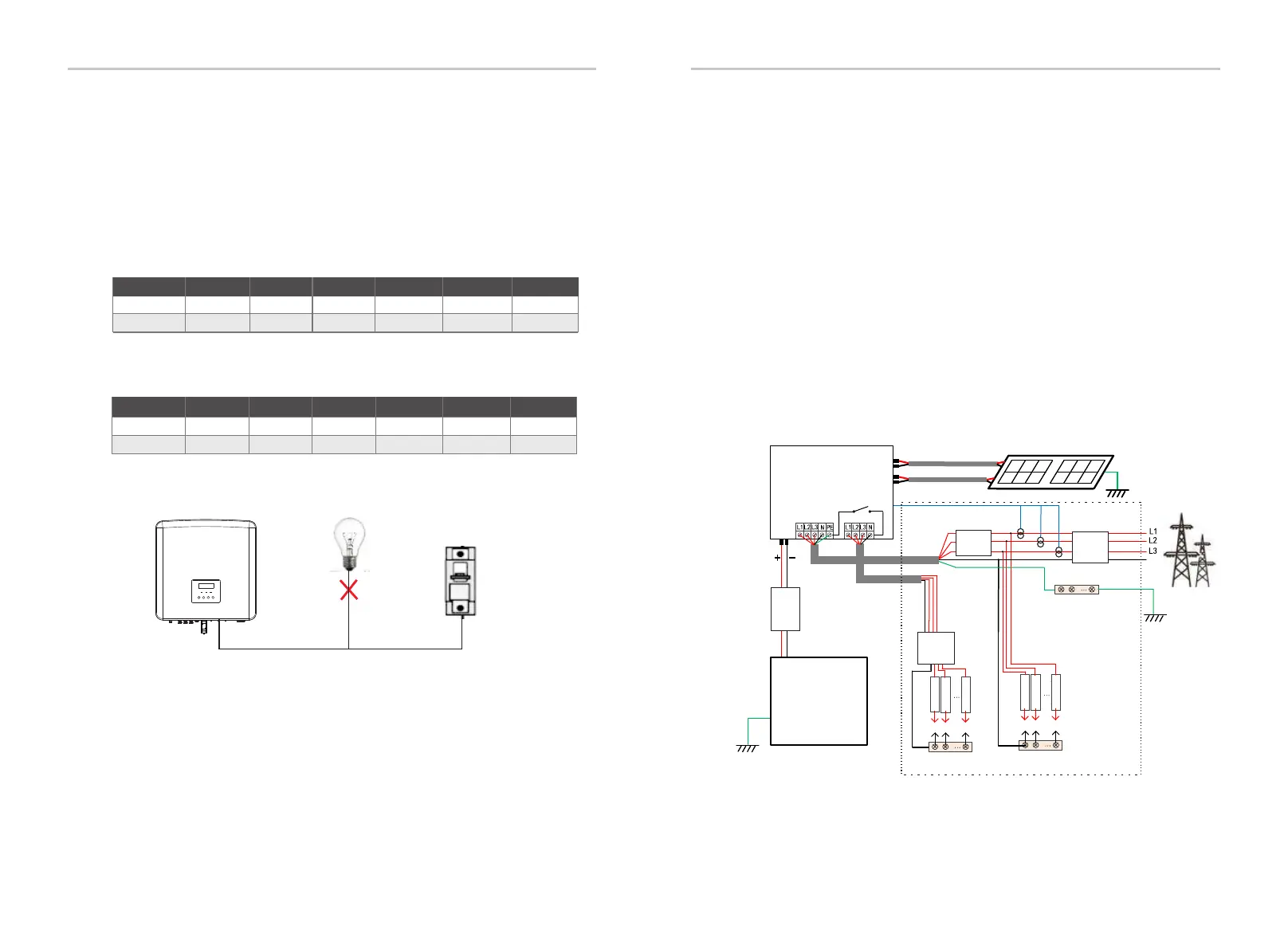

5.3 EPS(Off-grid) Block Diagram
5.2 Grid Port and EPS(Off-grid) Output Connection
Diagram A: N line and PE line separate wiring, D series inverters;
(For most countries)
36
37
N
BAT
Battery
N-BAR for loads
N-BAR for EPS(Off-grid) loads
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
RCD
Breaker
Grid
Breaker
Grid
EPS(Off-grid)
Main Breaker/RCD
Breaker
Breaker
CT
Distribution Box
CT-R
CT-S
CT-T
Grid Cable and Micro-breaker recommended
(apply to version D/M)
Cable (copper)
Micro-Breaker
20A 20A 32A 40A 40A 40A
4~6mm²
4~6mm² 5~6mm²
5~6mm²
5~6mm²
4~6mm²
X3-Hybrid-5.0 X3-Hybrid-6.0 X3-Hybrid-8.0
X3-Hybrid-10.0
X3-Hybrid-12.0 X3-Hybrid-15.0
Model
EPS(Off-grid) Cable and Micro-breaker recommended
(apply to version D/M)
Cable (copper)
16A 16A 20A 25A 32A
32A
4~6mm²
4~6mm² 4~6mm²
4~6mm²
4~6mm²
4~6mm²
Micro-Breaker
X3-Hybrid-5.0 X3-Hybrid-6.0 X3-Hybrid-8.0
X3-Hybrid-10.0
X3-Hybrid-12.0 X3-Hybrid-15.0
Model
The load should not be directly connected to the inverter.
Figure: Wrong connection of load and inverter
X3-Hybrid-10.0K-D
X3-Hybrid-10.0K-D
The inverter is three-phase inverter. Suitable for rated voltage
380/400/415V, frequency 50/60Hz. Other technical requests
should comply with the requirement of the local public grid.
