SolaX Power X3-Hybrid Series User Manual

X3-Matebox is a convenient wiring accessory. Please refer to 
X3-Matebox for details. If you need to purchase X3-Matebox, please
contact us.

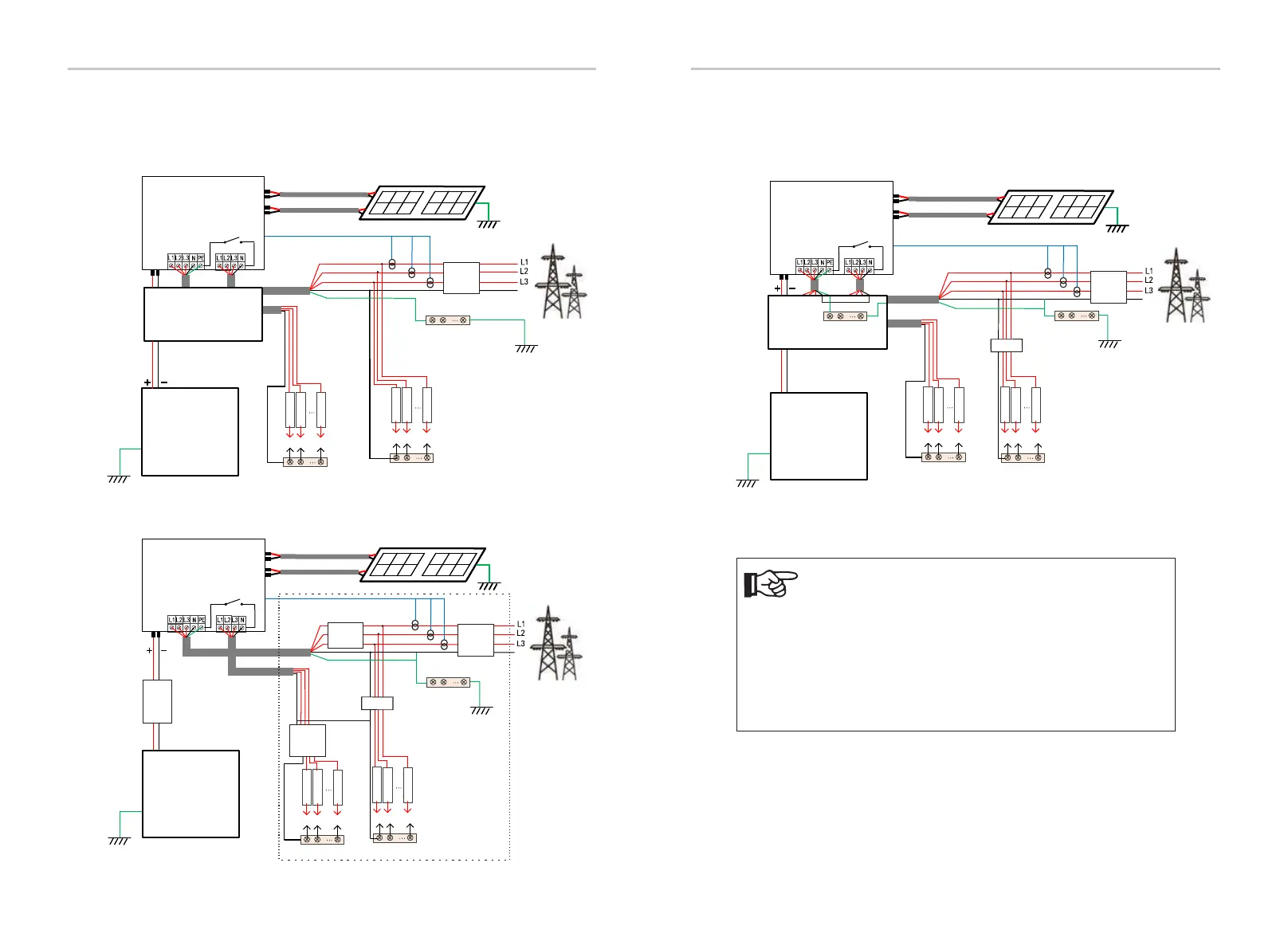

Diagram D: N line and PE line together, all load connection EPS(Off-grid)
scheme;(Applicable to Australia)
Electrical Connections
Electrical Connections
Diagram B: N line and PE line separate wiring, M series inverters;
(For most countries)
Diagram C: N line and PE line together, D series inverters;
( Applicable to Australia)
The RCD on the gure represents a leakage protection
device with a circuit breaker function.
To use X3-Matebox's Diagram B and Diagram D, you
need to set "X3-Matebox" to "Enable" in "Settings";
The Australian customer must shorten the N lines of the
Grid and the EPS(Off-grid) in the X3-Matebox.
If your local wiring method does not follow the above
operation guide, especially the neutral wire, ground wire,
RCD wire, please contact our company before operation.
38
39
N
BAT
Battery
N-BAR for loads
N-BAR for EPS(Off-grid) loads
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
RCD
Breaker
Grid
Breaker
Grid
EPS(Off-grid)
Main Breaker
Breaker
Breaker
CT
Distribution Box
N
CT-R
CT-S
CT-T
RCD
X3-Matebox
N
BAT
Battery
N-BAR for loads
N-BAR for EPS(Off-grid) loads
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
Grid
Grid
EPS(Off-grid)
Main Breaker/RCD
Breaker
Breaker
CT
CT-R
CT-S
CT-T
N
BAT
Battery
N-BAR for loads
N-BAR for EPS(Off-grid) loads
EPS(Off-grid) loads
Loads
Inverter
PV 1
PV 2
E-BAR
Grid
Grid
EPS(Off-grid)
Main Breaker
Breaker
Breaker
CT
X3-Matebox
E-BAR
N
CT-R
CT-S
CT-T
RCD

SolaX Power X3-Hybrid Series Specifications

General

Number of MPP Trackers	2
Model	X3-Hybrid Series
Phase	Three Phase
Communication Interfaces	RS485
Battery Compatibility	Lithium-Ion
Grid Frequency	50Hz / 60Hz
Operating Temperature	-25 ~ +60 °C
