19 • Recommended Wiring diagrams

________________________________________________________________________________________________

4. RECOMMENDED WIRING DIAGRAMS

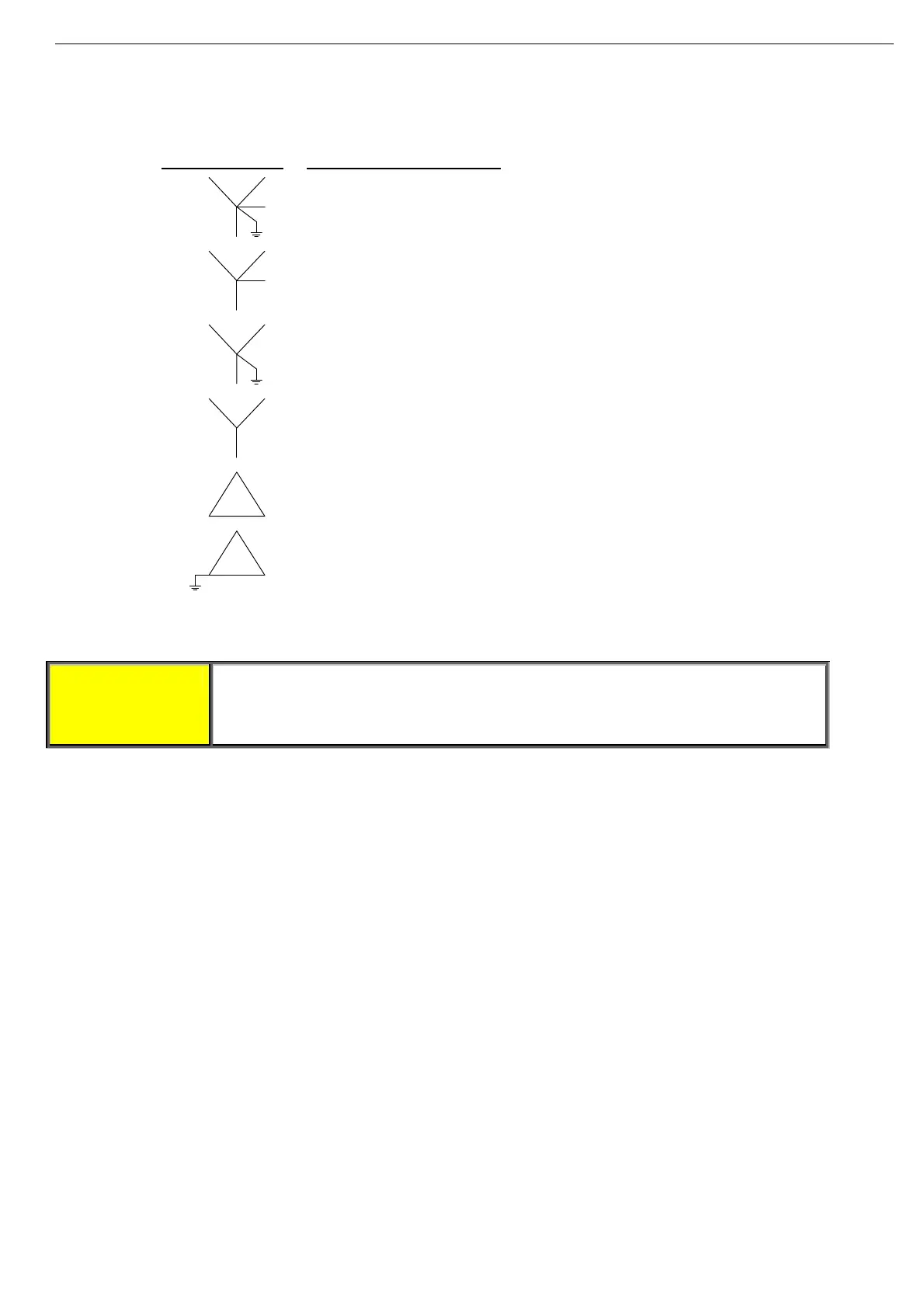

4.1 Terminal 21 Connections With Various Mains

Mains Diagram

Terminal 21 Connection

WARNINGS!

Only potential free contacts may be connected to terminal 21!

Do not connect any voltage to terminal 21!

Any connection of voltage to terminal 21 may disrupt RVS-DN operation, and

cause damage to the RVS-DN or the motor!

3P+N - Connect terminal 21 to neutral

3P+GR - Connect terminal 21 to ground

3P - Leave terminal 21 unconnected

3P+GR - Leave terminal 21 unconnected

3P+N+GR - Connect terminal 21 to neutral
