77 • Control Keypad
________________________________________________________________________________________________

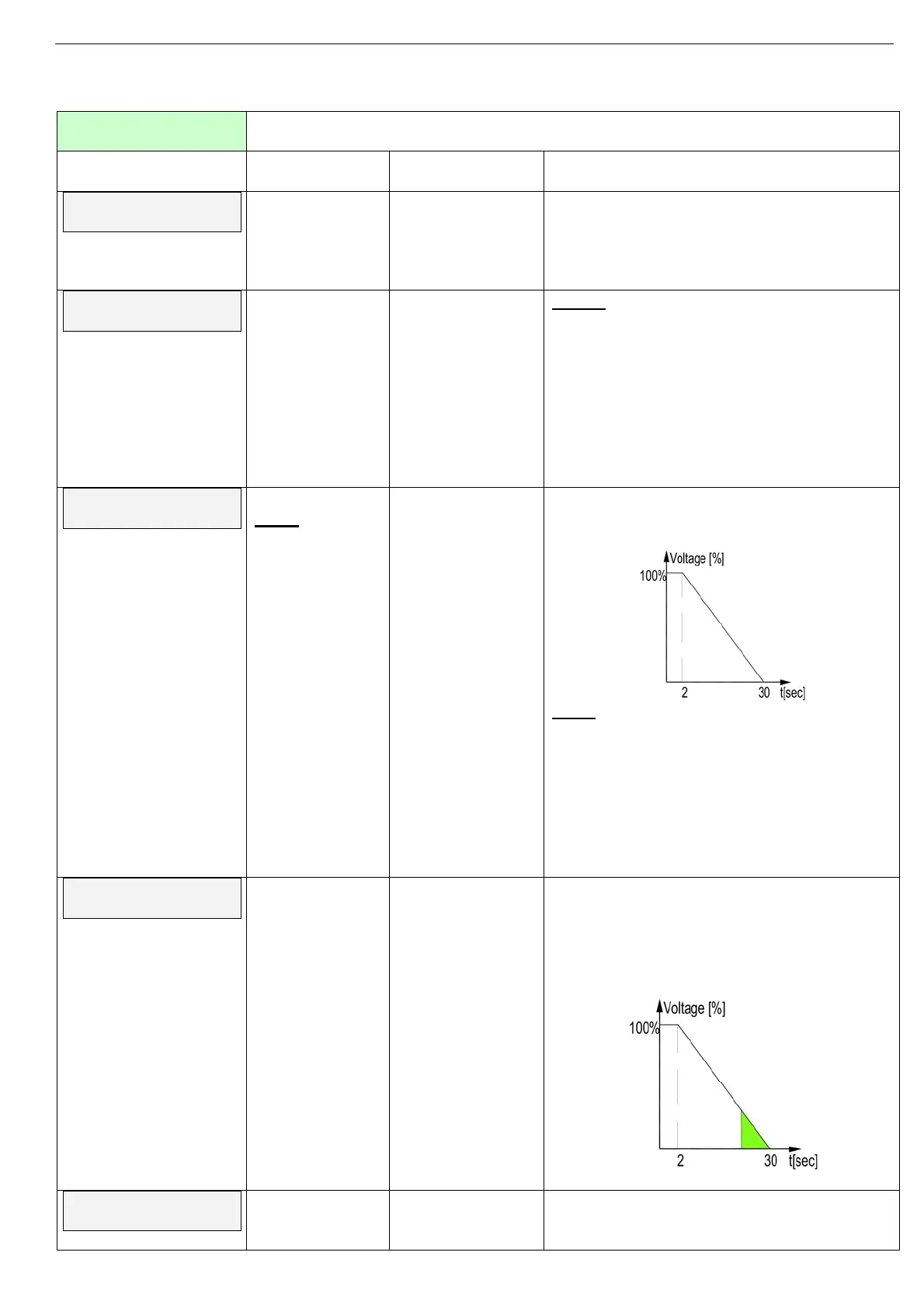

7.7.4 Stop Parameters – Page 3
STOP PARAMETERS
- **** -
Displays in MINIMIZED MODE and MAXIMIZED MODE
(refer to section 6.5.1 page 56 for changing mode)
Display and Default
Values
Range Description Remarks
SOFT STOP CURVE
0(STANDARD)
0 (STANDARD)
1 !!
2 !!
3 !!
4 (TORQUE)
Sets RVS-DN’s
SOFT STOP
CURVE.
Refer to section
7.7.4.1 on page 78.
STOP TACHO. GAIN
0(MIN. GAIN)
0 (MIN. GAIN)
1 !!
2 !!
3 !!
4 !!
5 !!
1!! represents the
2nd level tacho
gain
2!! represents the
3rd level tacho
gain …….
5!! represents the
6th level tacho
gain.
Notes:
(1) This parameter will appear only if the
optional PCB is installed and dip switch # 2
is set to on. Refer to section
6.5.2 on page
57 for dip switch setting details.
(2)
Tacho Feedback is operational in its
basic form. Additional curves except for the
basic linear curve are optional.
(3) Consult the factory for the correct tacho
selection and mechanical installation.
DEC. TIME
10 SEC.
1–30sec.
Note:
The range of the
DEC. TIME can
be extended to
1-90 sec. by
using the
EXPANDED
SETTING as
described in
section
6.5.5
page 58.
Sets
DECEL
ERATION
TIME of the
motor.
Used for controlled deceleration of high
friction loads. Determines the motor’s
voltage ramp down time.
Note:
When the RVS-DN operates with a bypass
contactor, the bypass contactor can be
controlled by the RVS-DN’s End of
Acceleration relay.
Upon soft stop initiation the End of
Acceleration relay is degenergized, the load
is transferred to the RVS-DN, and voltage
begins ramping down.
FINAL TORQUE
0 (MIN.)
0 (min.) – 10
(max.)
Sets FINAL
TORQUE
during soft stop.
Determines torque towards the end of a soft
stop.
If the current still flows after speed is softly
reduced to zero, you should increase the
FINAL TORQUE setting.
STORE ENABLE
STOP PARAMETERS
Same as STORE ENABLE MAIN
PARAMETERS on page 71.
