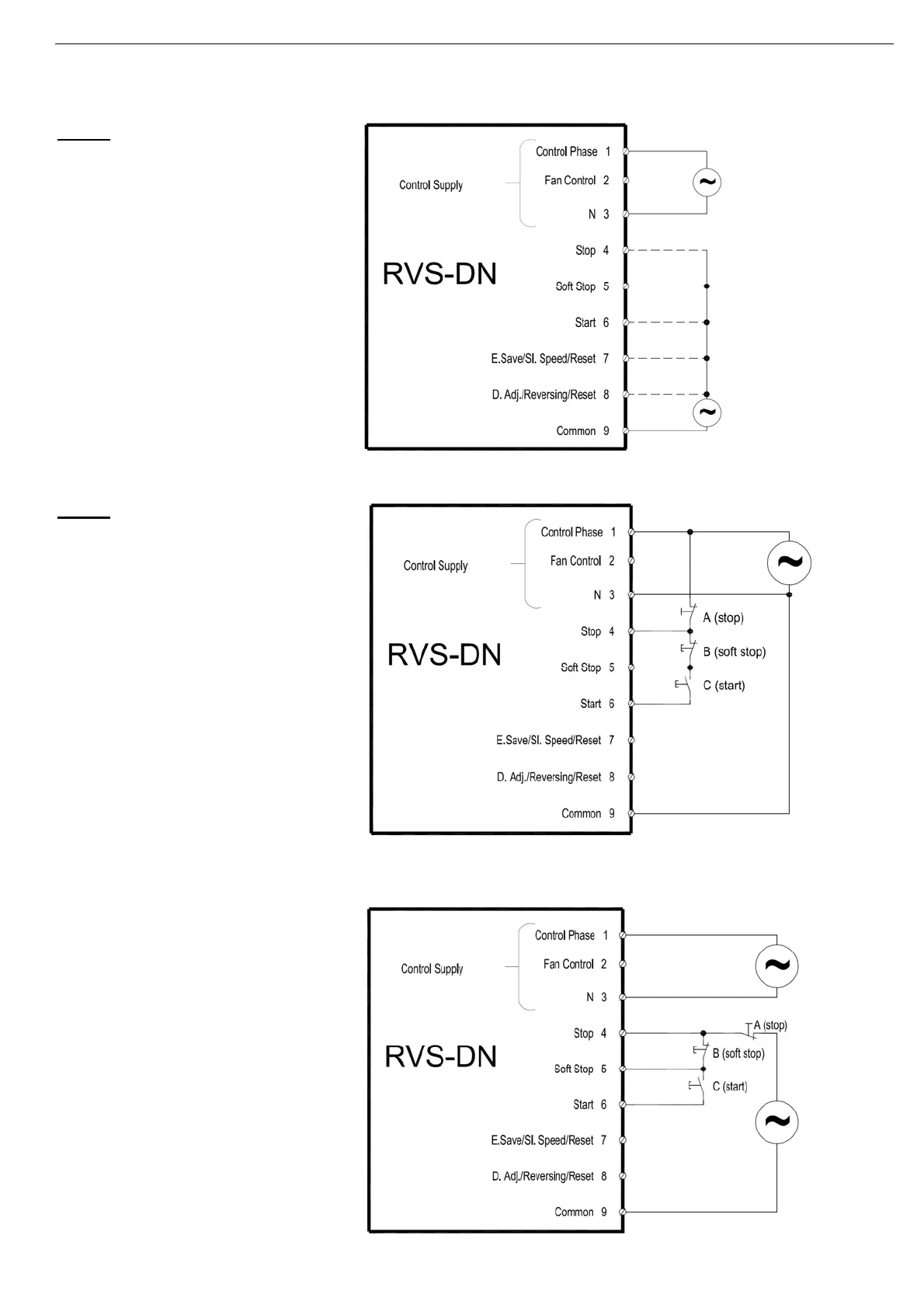

21 • Recommended Wiring diagrams
________________________________________________________________________________________________
4.4 Control Supply and Control Input from Separate Sources
Notes:
• Use this diagram when Control
Supply and Control Input voltages
are not from the same source.
• Connect terminal 21 as per section
4.1 page 19.
• Supply must be protected for short
circuit and over load. 6A fuse is
recommended.
• It is recommended to use a separate
fuse for the auxiliary circuits.
4.5 Soft Start, Soft Stop and Stop, Control Supply and Control Input from the Same Source
Notes:
• Switch A can be used as an
immediate stop.
• Switch B is used as a soft stop
command to the RVS-DN.
• Switch C is used as a momentary or
maintained start command to the
RVS-DN.
4.6 Soft Start, Soft Stop and Stop, Control Supply and Control Input from Separate Sources
See notes t
o section
4.5.
