47 • Dimensions
________________________________________________________________________________________________

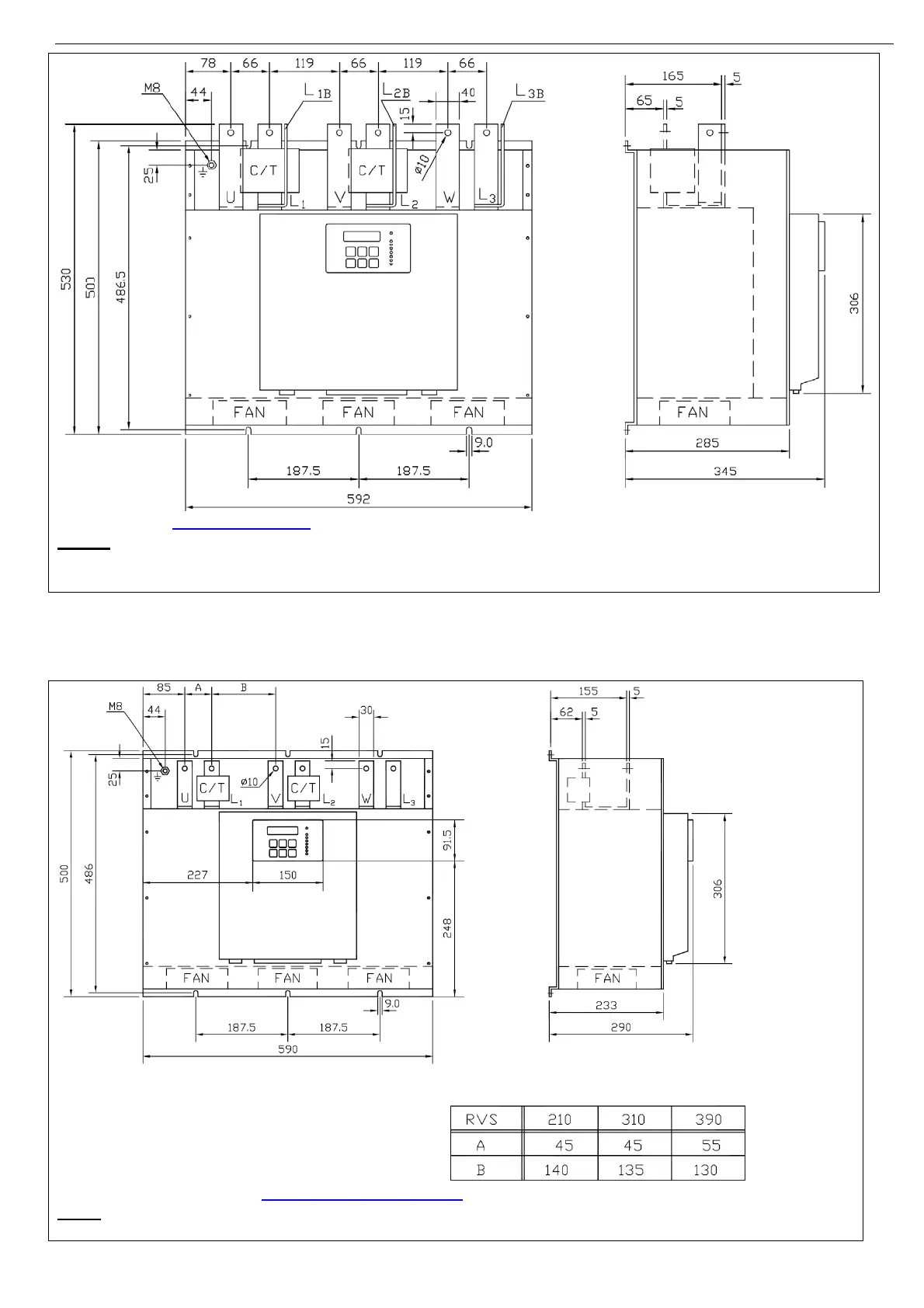

RVS-DN 460A 1000V and 1200V
Notes:
• Must be operated with a bypass contactor
• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
5.3 UL/cUL/Marine Models
The followin
g models have different dimensions when ordered with UL/cUL/marine approvals.
Other models have the same dimensions as standard models listed in section
5.1 page 34.
RVS-DN 210A 310A 390A UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
