48 • Dimensions
_____________________________________________________________________________________________

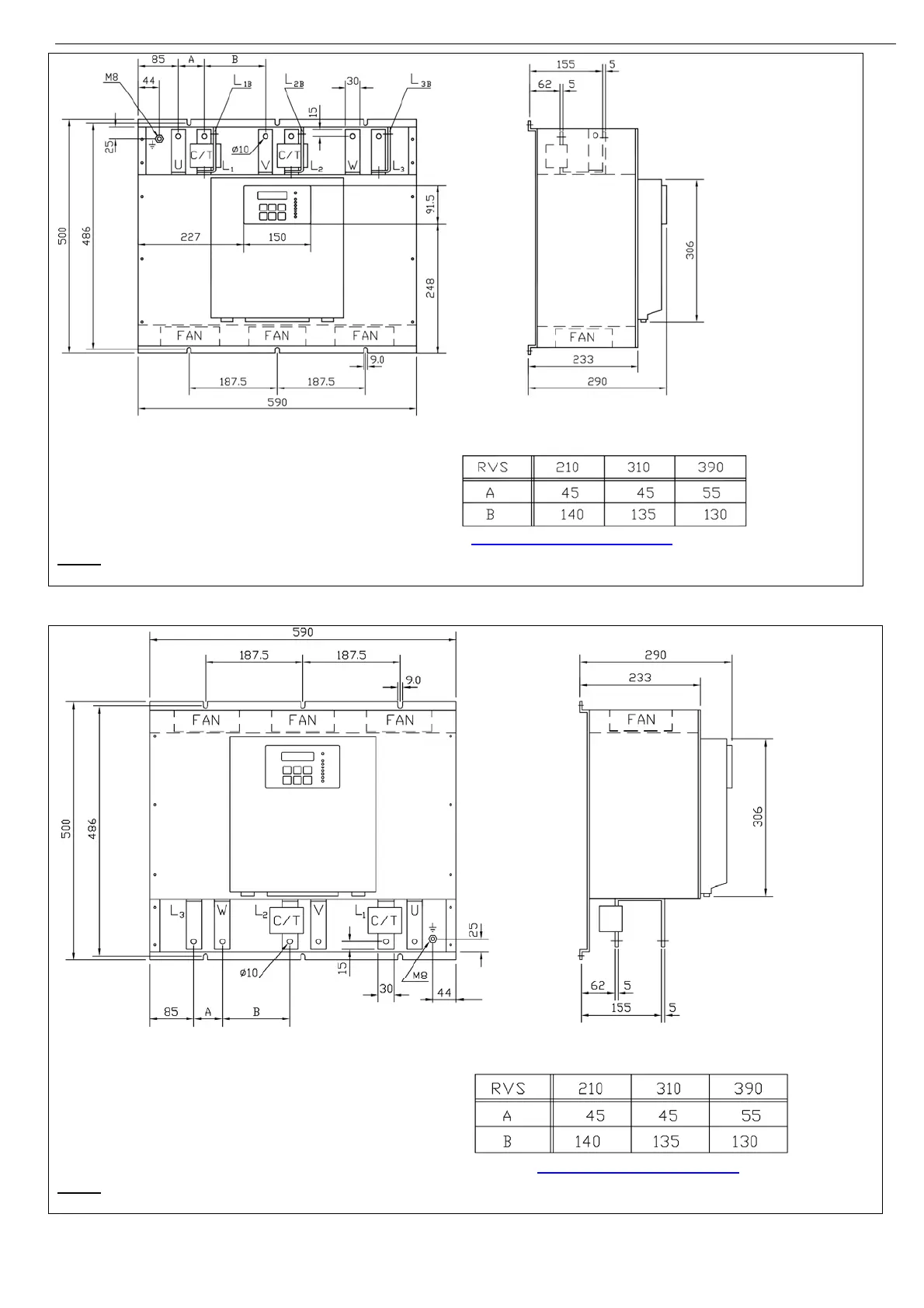

RVS-DN 210A 310A 390A with preparation for bypass UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
RVS-DN 210A 310A 390A line and load bus bars at the bottom UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
