34 • Dimensions
___________________
______________
_______________
_______________
______________
________________
5.

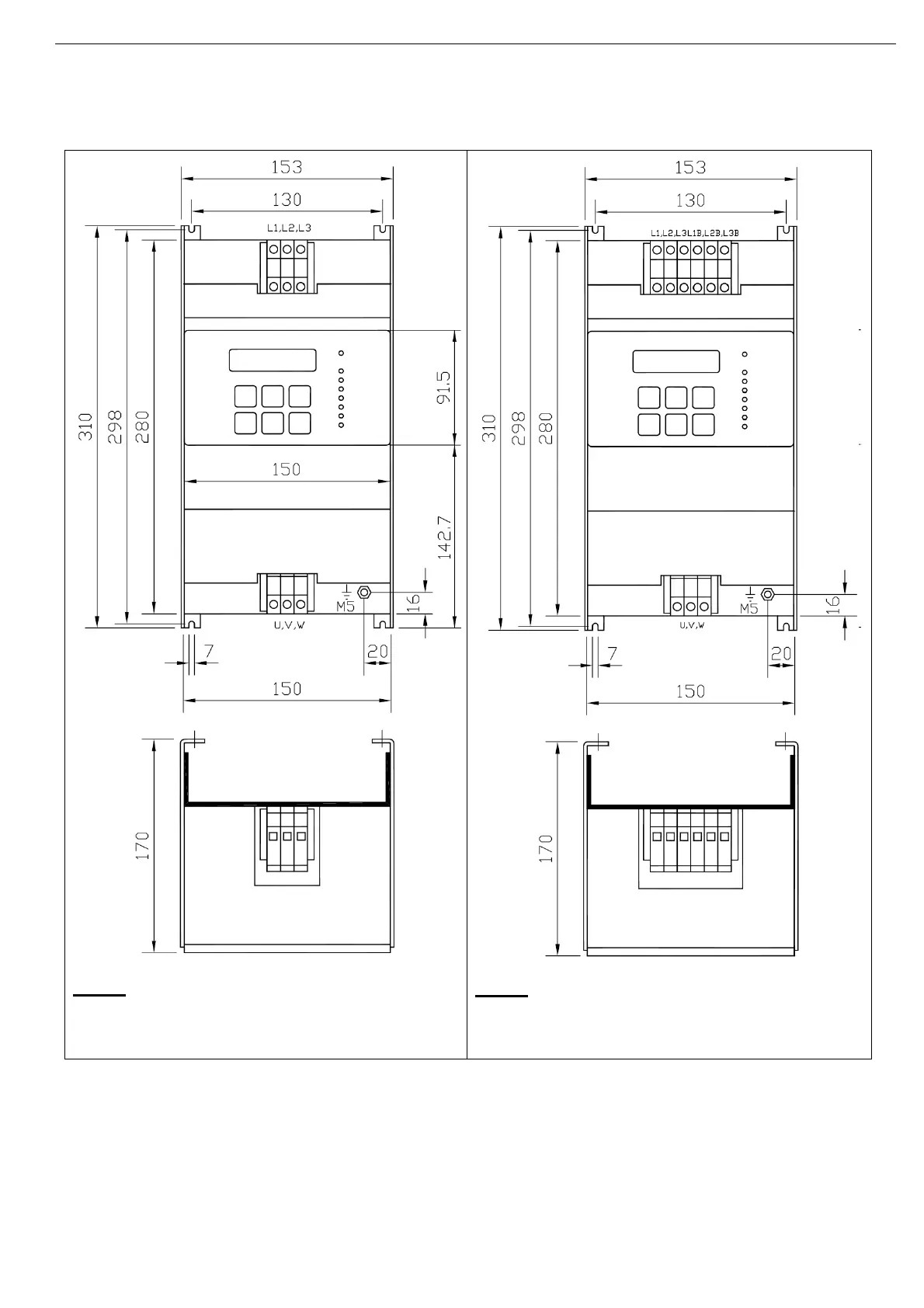

DIMENSIONS
5.1
Standard Models
RVS-DN 8A 17A
Notes:
•
Mains voltage terminals: 16mm
2
.
•
Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
RVS-DN 8A 17A with preparation for bypass
Notes:
•
Mains voltage terminals: 16mm
2
.
•
Add 20 mm to depth dimension when optional
remote key-pad (option D) is installed.
