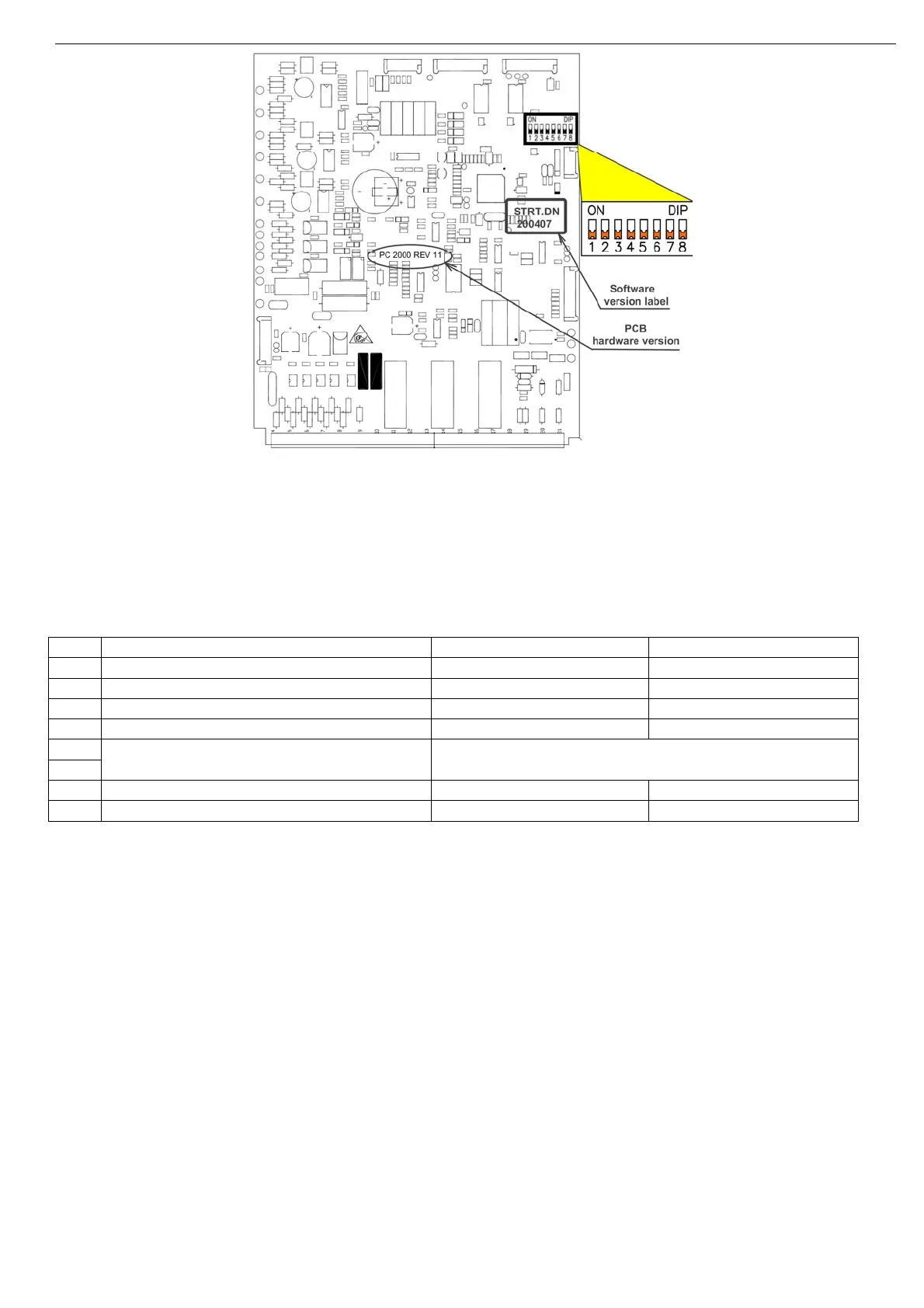

RVS-DN main PCB.
Dip switch location, software version label location and PCB hardware version identification.
6.5 Dip Switch Settings on the Main PCB
The dip swit
ch has eight separate switches. It is located under the front cover of the control module (in sizes
B-F) or under the display unit (in size A).
No. Switch Function Switch Off Switch On
1
Display format Minimized Maximized
2
Tacho feedback Disabled Enabled
3
Mains/generator Mains Generator
4
Must be off
- -
5
LCD language selection See tables below section
6.5.4 page 57.
6
7
Expanded settings Disabled Enabled
8
Software lock Open Locked
6.5.1 Switch # 1 – Display Modes
Two display modes are available:
Maximized – display of
all possible parameters.
Minimized – display of pre-selected parameters.
Setting switch # 1 to off will minimize the LCD displays.
Refer also to section
7.6 page 65.
Maximized Mode - Switch #1 – On Minimized Mode Switch #1 – Off
Display only
Main parameters
Start parameters
Stop parameters
Dual adjustment
Energy save & slow speed parameters
Fault parameters
I/O programming
Communication parameters
Statistical data
Display only
Main parameters
Start parameters
Stop parameters
Statistical data
