60 • Installation
_____________________________________________________________________________________________
Notes:
(1) It is important that the RVS-DN is properly grounded and that the control module is tightly fastened to the
power module.
(2) Use twisted shielded cable for the thermistor connection.
6.8 Remote Key-Pad Installation

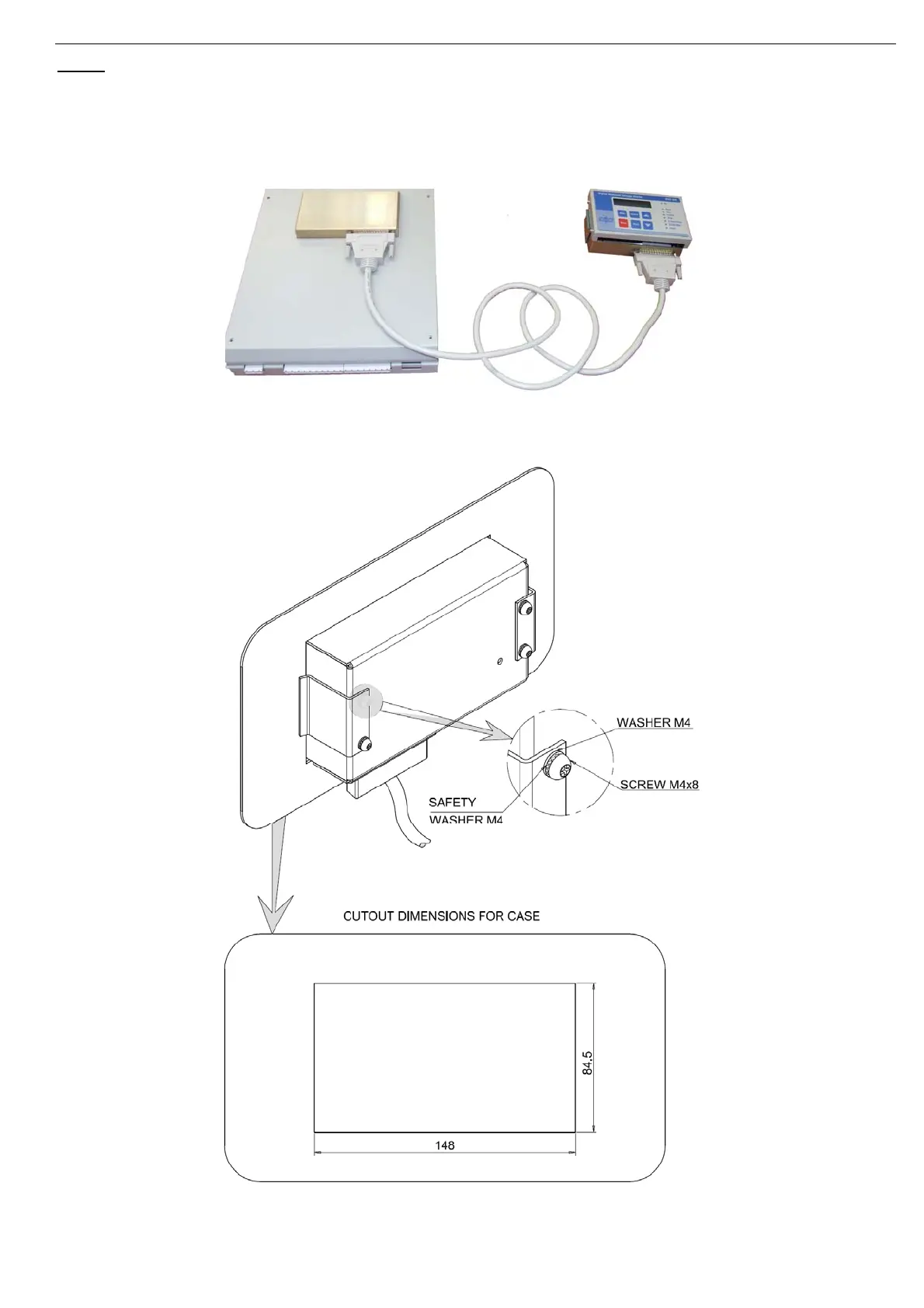

Remote key pad, connection cable and control module.
Cable length is 1.5 meters (consult with the factory if a longer cable is required).
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
Remote key pad, mechanical installation and cut-out dimensions.
