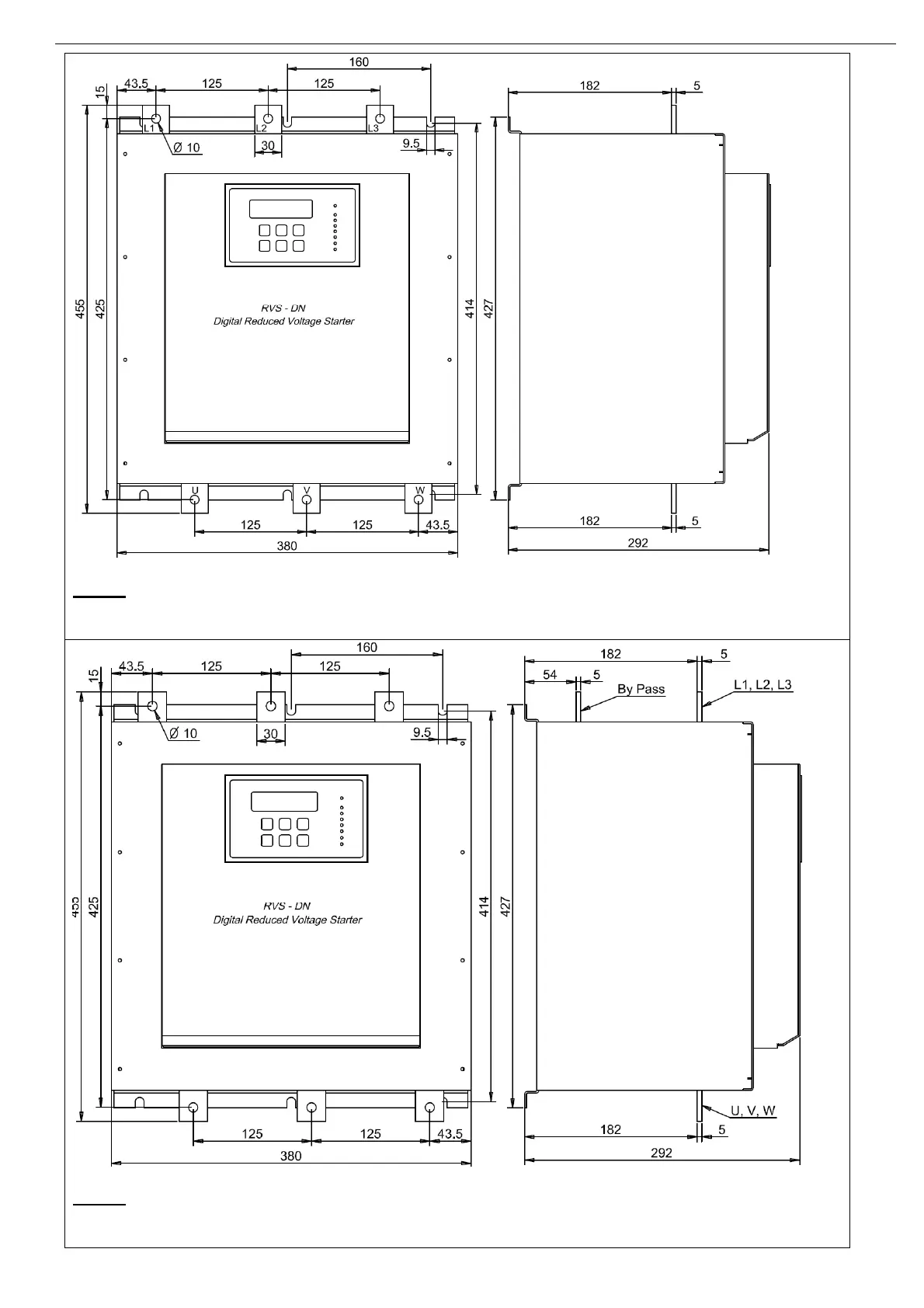

38 • Dimensions

_____________________________________________________________________________________________

RVS-DN 210A 310A 390A

Notes:

• For marine/UL cUL approved model dimensions refer to section

5.3 page 47.

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.

RVS-DN 210A 310A 390A with preparation for bypass

Notes:

• For marine/UL cUL approved model dimensions refer to section

5.3 page 47.

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
