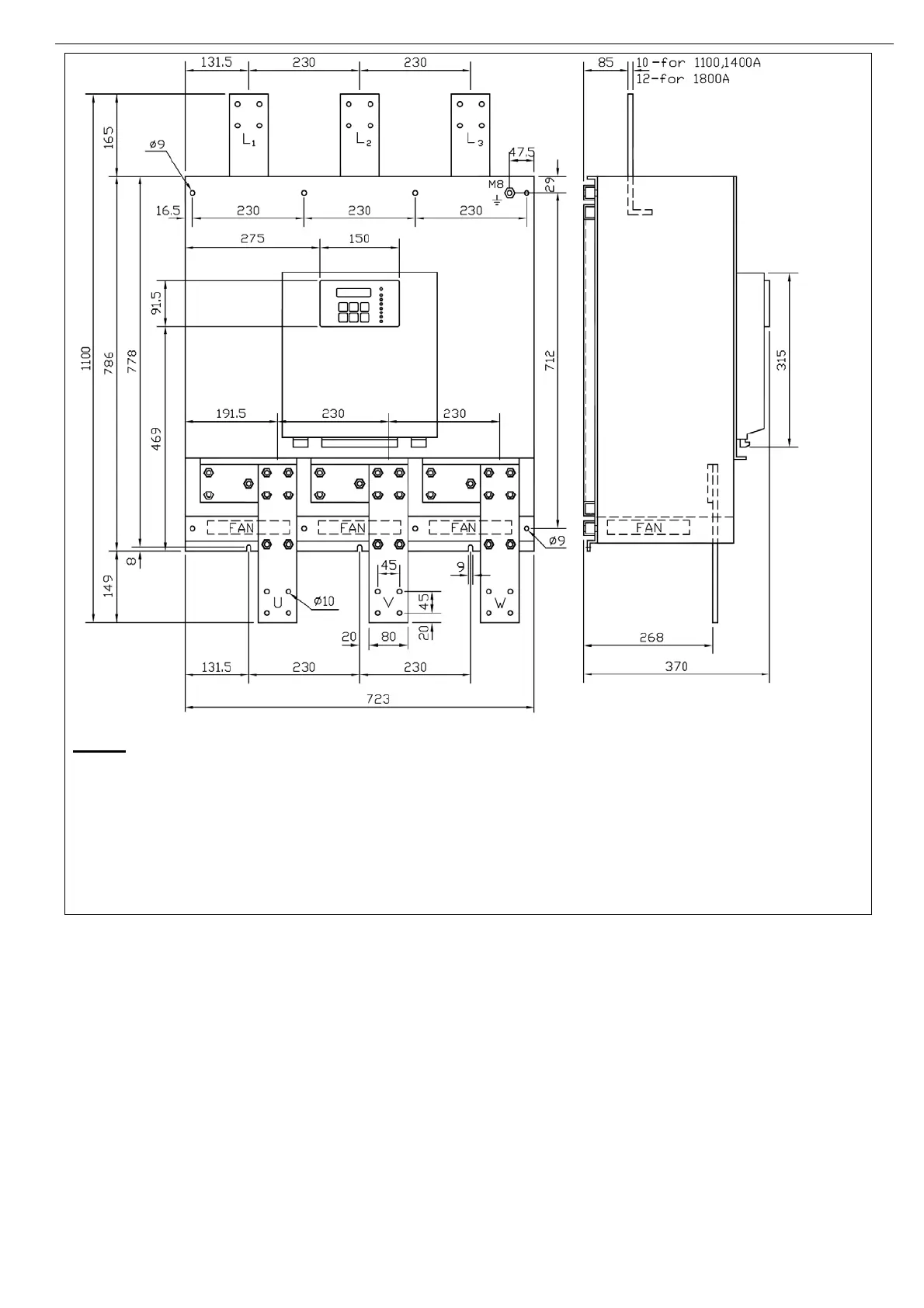

43 • Dimensions

________________________________________________________________________________________________

RVS-DN 1100A 1400A 1800A

Notes:

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.

• Must be operated with a bypass contactor

• Add space for current transformers (Supplied separately from main unit) and bus bars for preparation

for bypass

• Approximate current transformers dimensions:

W=240mm, H=130mm, D=90mm. (1100A)

W=270mm, H=155mm, D=90mm. (1400A)

W=270mm, H=155mm, D=100mm. (1800A)
