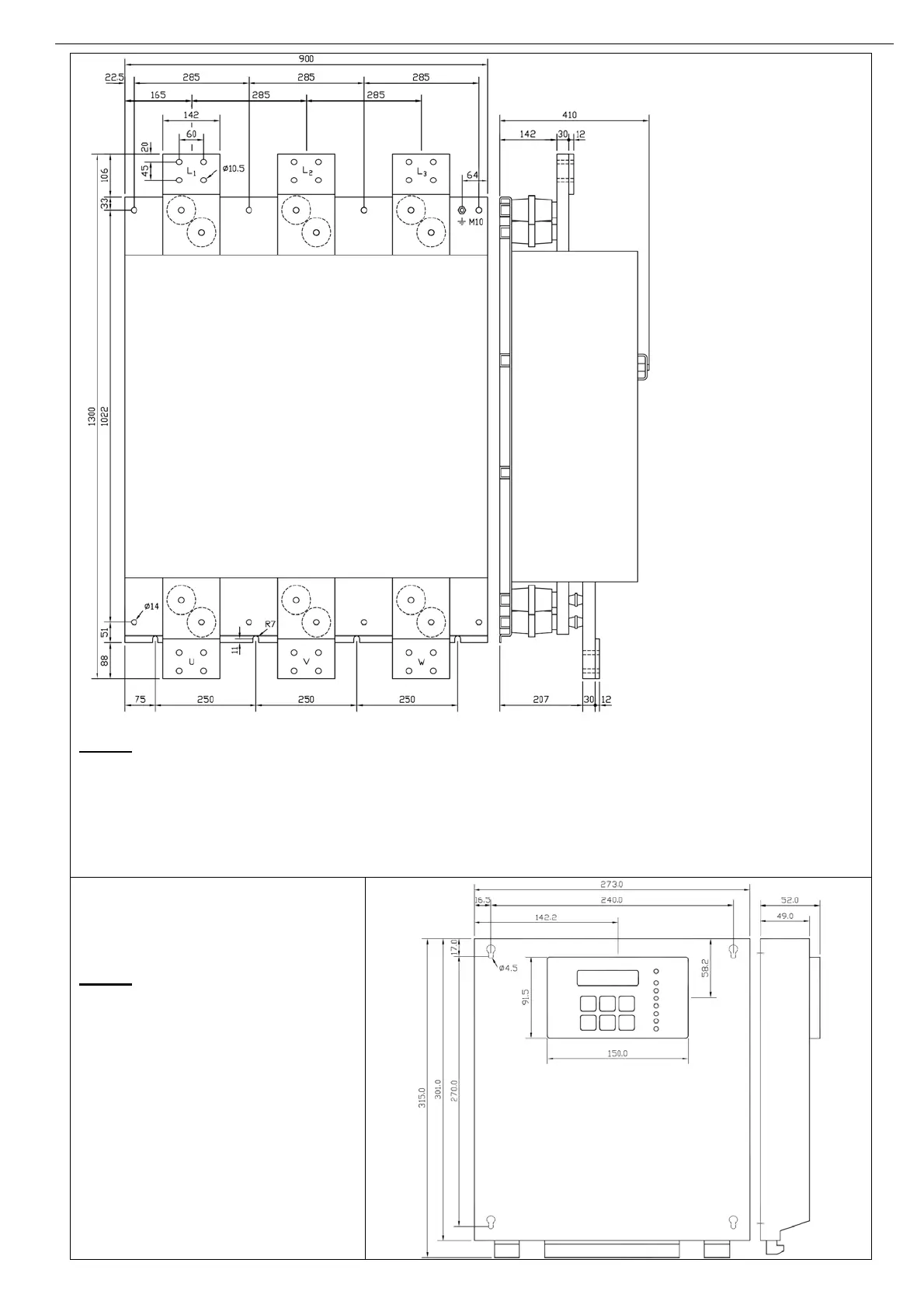

45 • Dimensions

________________________________________________________________________________________________

RVS-DN 2400A 2700A 3000A

Notes:

• Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.

• Must be operated with a bypass contactor.

• Add space for current transformers (Supplied separately from main unit) and bus bars for preparation

for bypass

• Approximate current transformers dimensions: W=330mm, H=190mm, D=110mm

• Control module is supplied separately with a 1.5 m cable length (see dimensions below)

5.1.1 Control Module

Dimensions

Notes:

• RVS-DN control module is supplied

separately in RVS-DN 2400A,

2700A 3000A

• Add 20 mm to depth dimension

when optional remote key-pad

(option D) is installed.
