51 • Dimensions
________________________________________________________________________________________________

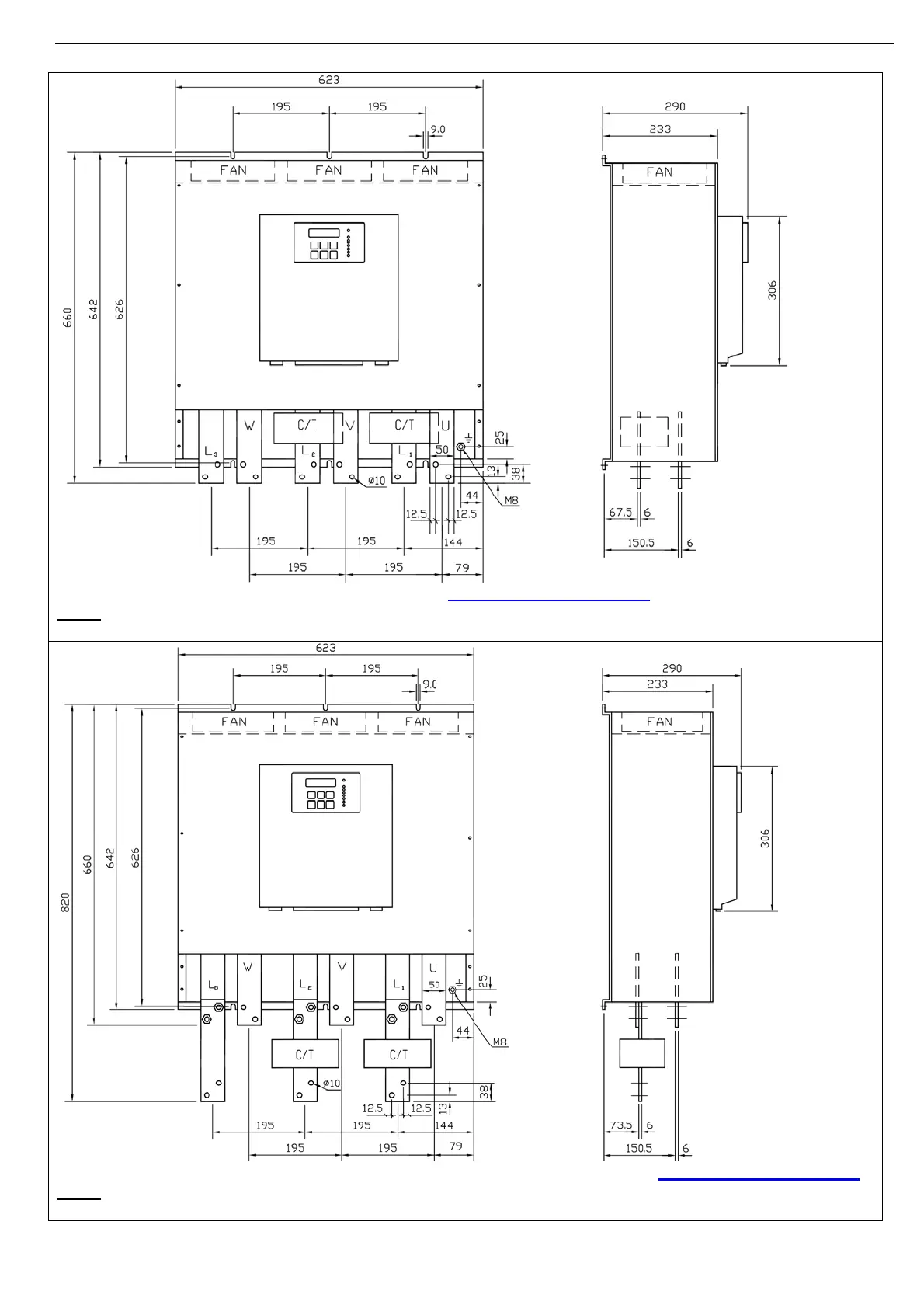

RVS-DN 460A line and load bus bars at the bottom UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
RVS-DN 460A line and load bus bars at the bottom with preparation for bypass UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
