Solcon RVS-DN 8 - Page 53

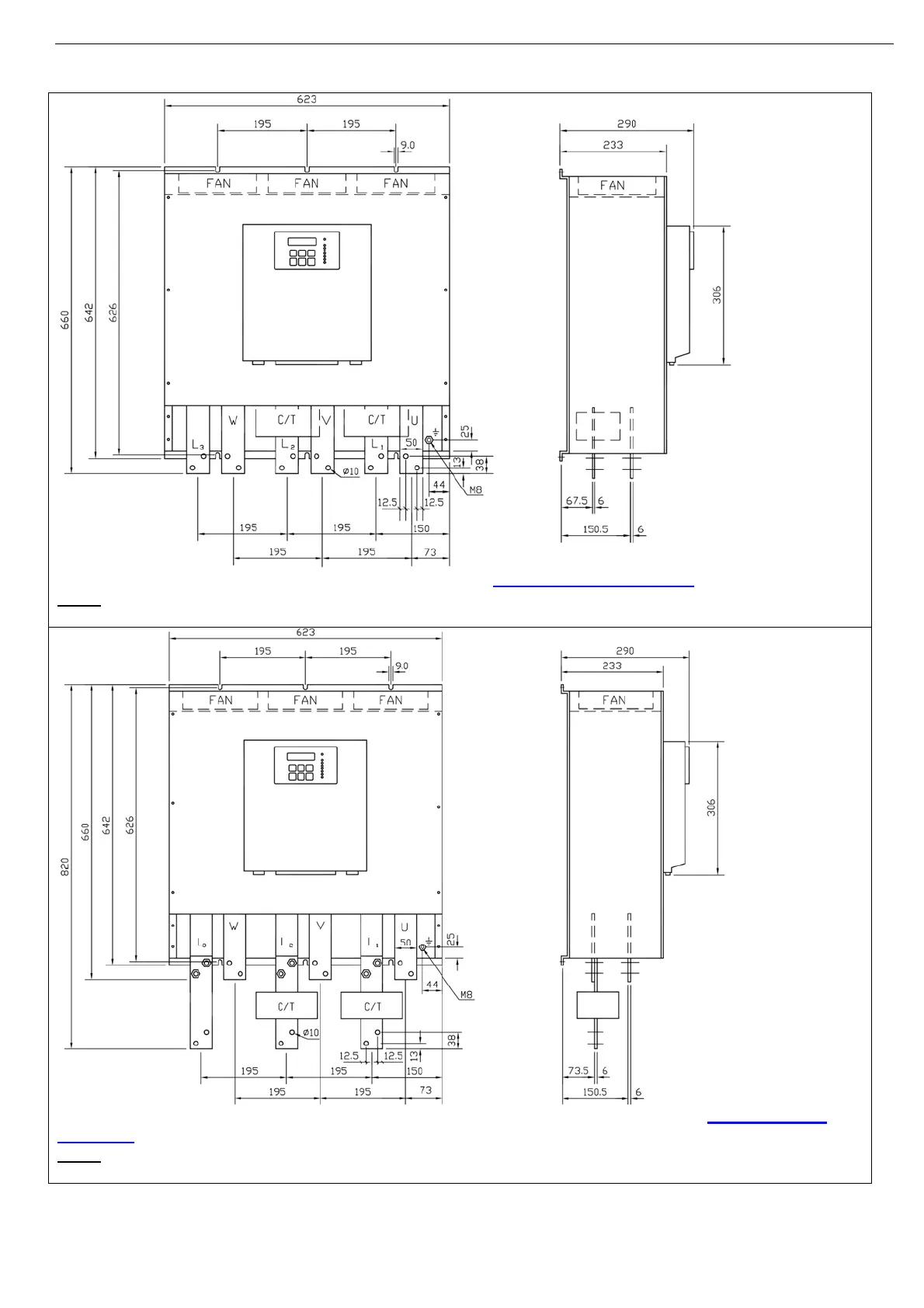

53 • Dimensions
________________________________________________________________________________________________
RVS-DN 580A 820A line and load bus bars at the bottom UL/cUL/Marine approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
RVS-DN 580A 820A line and load bus bars at the bottom with preparation for bypass UL/cUL/Marine
approved
Note:
Add 20 mm to depth dimension when optional remote key-pad (option D) is installed.
